CPU
  • Intel Socket LGA1150: Support Intel Core i3 / i5 / i7 / Celeron
Chipset
  • Intel H81 Chipset
Memory
  • 2 x DIMM, Max 16GB DDR3 1600 / 1333 / 1066 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
Onboard Graphics

Integrated Graphics Processor:

  • 1 x D-Sub VGA
  • 1 x HDMI Port
Audio

Realtek 662

  • 6-Channel High Definition Audio
LAN

1 x Realtek 8111E

  • 10 / 100 / 1000 Mbps
Wireless Communication ModuleNone
Expansion Slots

PCI-Express x16

  • 1 x PCIe 3.0 x16
Storage Interface

M.2

  • 1 x M.2 2280 PCIe Gen 3

SATA:

  • 3 x SATA 2.0 3Gb/s Ports
USB

Rear USB (Total 6 ports)

  • 2 x USB 3.0 Type-A
  • 4 x USB 2.0

Front USB (Total 2 ports)

  • 1 x USB 2.0 headers support 2 additional USB 2.0 ports
Internal I/O Connectors

USB:

  • 1 x USB 2.0 support an additional 2 USB 2.0 ports

Audio:

  • 1 x Front panel audio header
Back Panel Connectors
  • 1 x VGA Port
  • 1 x HDMI Port
  • 2 x USB 3.0 Type-A Ports
  • 4 x USB 2.0 Ports
  • 1 x LAN Port
  • 3 x Audio Jacks
I/O Controller
  • Not Specified
H/W Monitoring
  • Temperature detection
  • Fan speed detection
BIOS
  • Not Specified
Unique Features

N/A

Bundled Software

None

Operating System
  • Support for Windows
Form Factor
  • Micro ATX Form Factor, 19.0cm x 17.0cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration1 Year
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

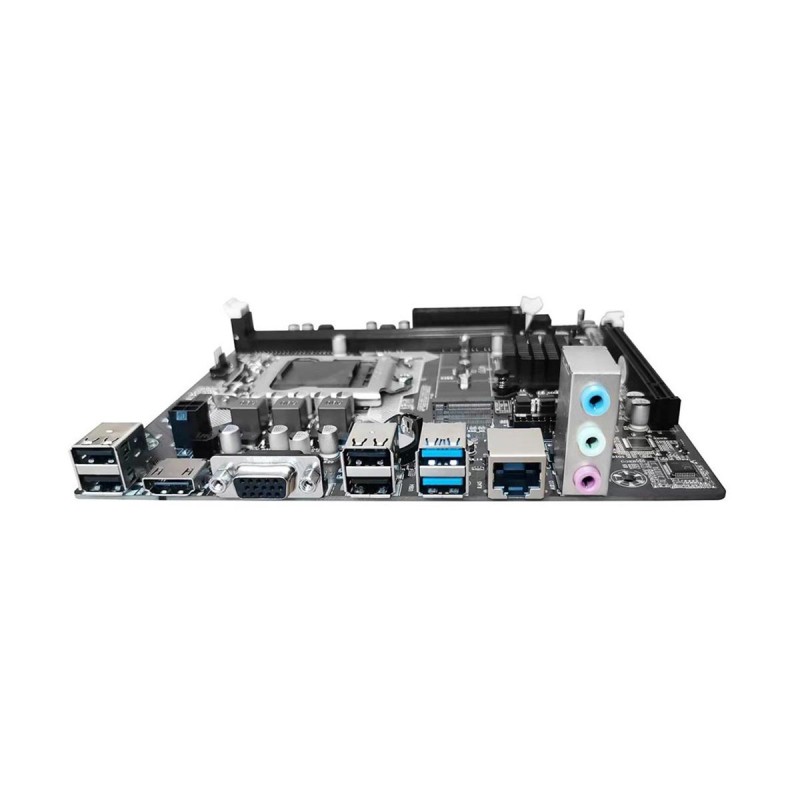

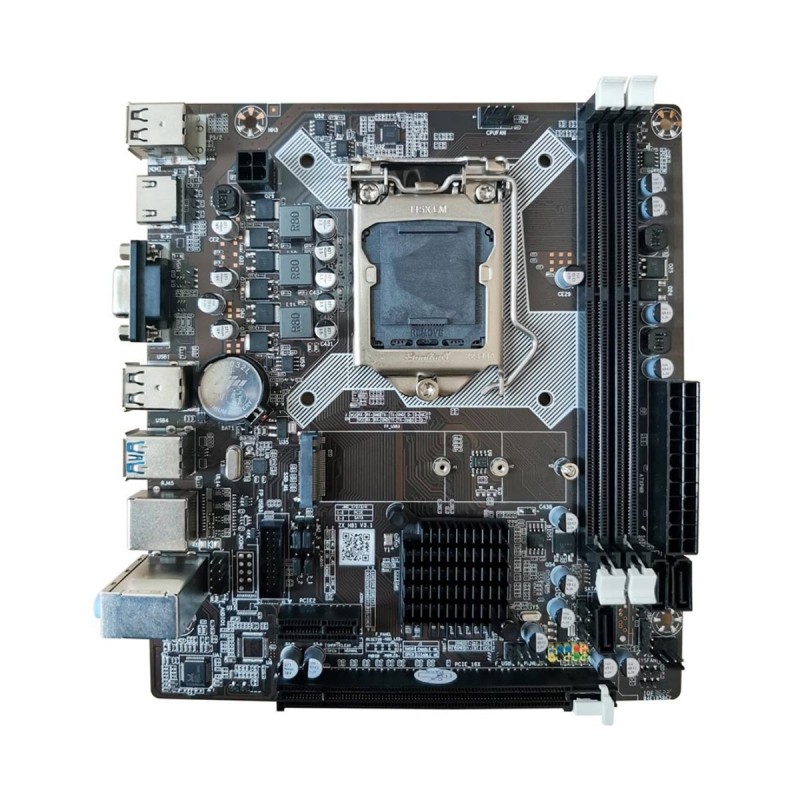

Arktek AK-H81M, Intel H81 Chipset, LGA1150, DDR3, Micro ATX Desktop Motherboard

- Socket LGA1150, Intel H81 Chipset
- Supports Core i3 / i5 / i7 / Celeron
- 2 x DDR3 DIMM Slots, up to 16GB DDR3-1600
- 1 x PCIe 3.0 x16 Slot
- 1 x PCIe 1.0 x1 Slot
- 1 x M.2 PCIe 3.0 NVMe Slot
- 3 x SATA Ports
- 1Gbps LAN
- 2 x Rear USB 3.0 Type-A, 4 x Rear USB 2.0 Type-A
- Form Factor: Micro ATX
- 1 Year Warranty

  • Product Code: AK-H81M
