• Supports Intel Core 9000 Series family/ 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket


• Intel Z390


• 4 x DDR4 memory slots, support up to 128GB

• Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

• 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz

• 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz

No Display support when using the Processor model with suffix “F”

• Realtek ALC892 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Supports S/PDIF output

• Intel I219-V Gigabit LAN Controller
• Intel I211-AT Gigabit LAN Controller

• None

• 3 x PCIe 3.0 x16 slots(support x16/x4/x1 modes)

• 2 x PCIe 3.0 x1 slots
• 1 x M.2 slot (Key E) for an Intel CNVi wireless module only

• Supports 2-Way AMD CrossFire Technology


Intel Z390 Chipset

• Intel Z390 Chipset

• 6x SATA 6Gb/s ports*1
  Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• 2x M.2 slots (Key M)*1
  M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
  Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

• Intel Optane Memory Ready

M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details.

Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Intel Z390 Chipset

• 4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel)
• 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
• 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin Water Pump connector
• 5 x 4-pin system fan connectors
• 1 x Serial port connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x TPM module connector
• 2 x 4-pin RGB LED connectors
• 1 x 3-pin RAINBOW LED connector

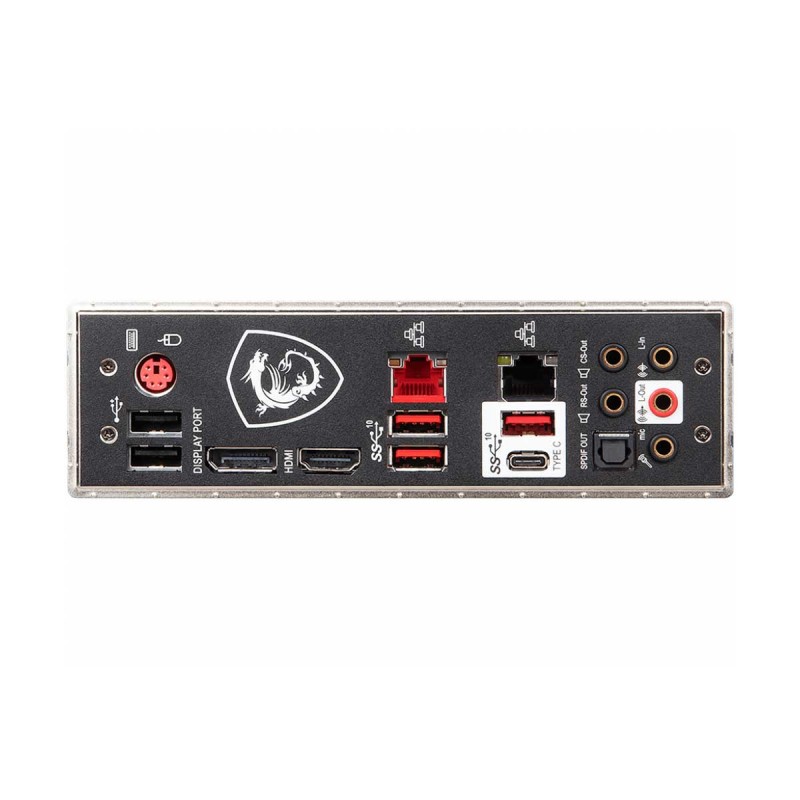

• 1 x PS/2 Combo Port

• 2 x LAN Port
• 5 x HD Audio Connectors
• 2 x USB 2.0 Port
• 1 x DisplayPort
• 1 x HDMI Port
• 2 x USB 3.1 Gen2 Type A
• 2 x USB 3.1 Gen2 Type A+C
• 1 x Optical S/PDIF OUT

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control


• N/A

• N/A

• Driver disc

• Support for Windows 10 64-bit

• ATX Form Factor, 30.4cm x 24.3cm
