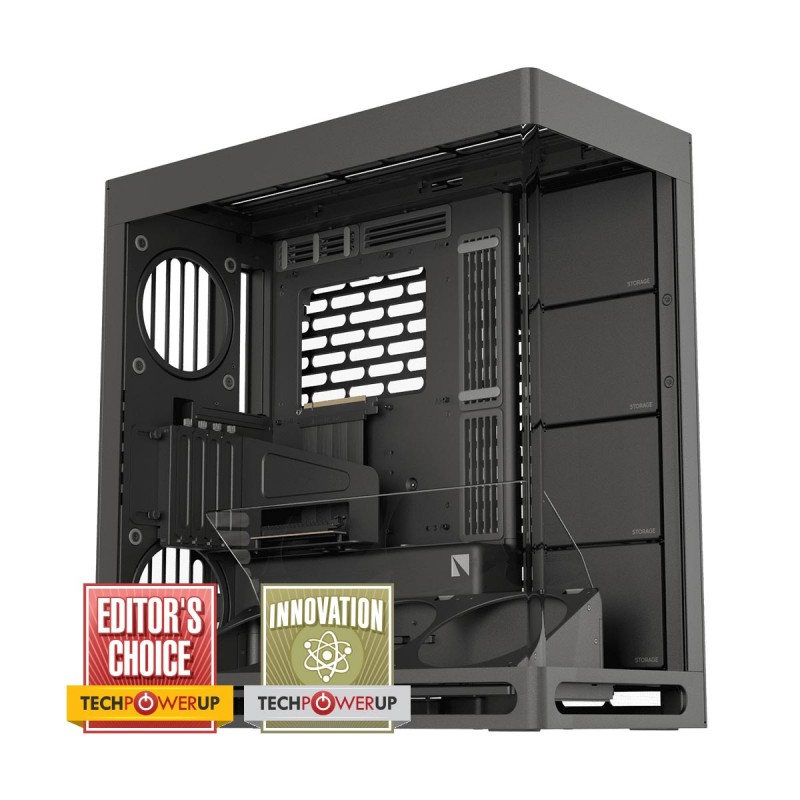

The HS 420 series is gorgeous inside and out. There are so many innovations stuffed into this case, it truly feels like a team of designers got to sit down and dream up all kinds of things to then bring to market, without much restriction. That deserves recognition on its own. From the unique grommets and coupled with well implemented cable channels, to the focus on clean design and singular glass panel with a tight bend radius, there is so much to love about the case.

Read the TechPowerUp review here →

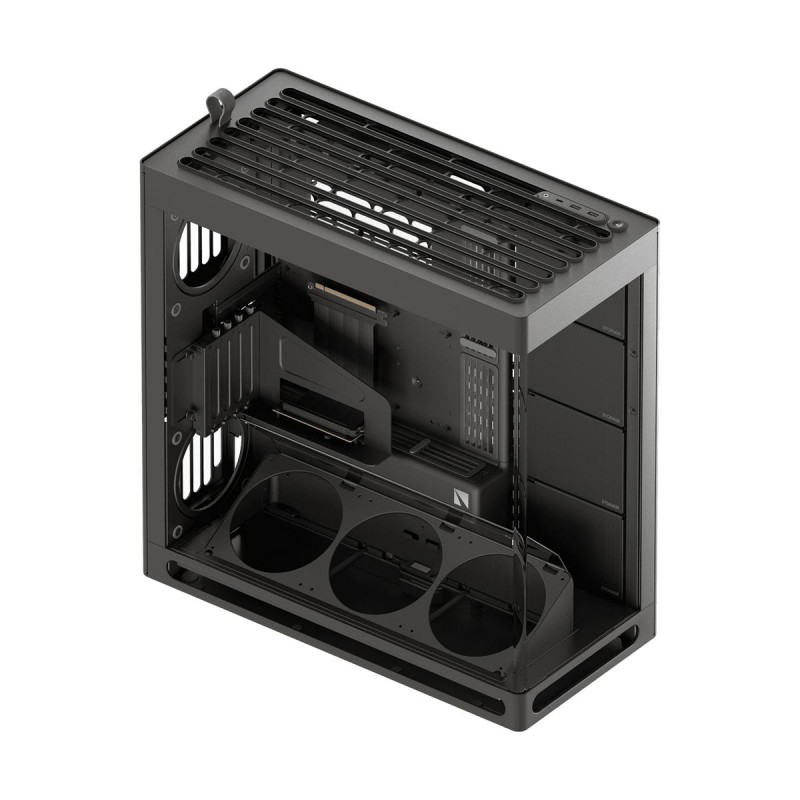

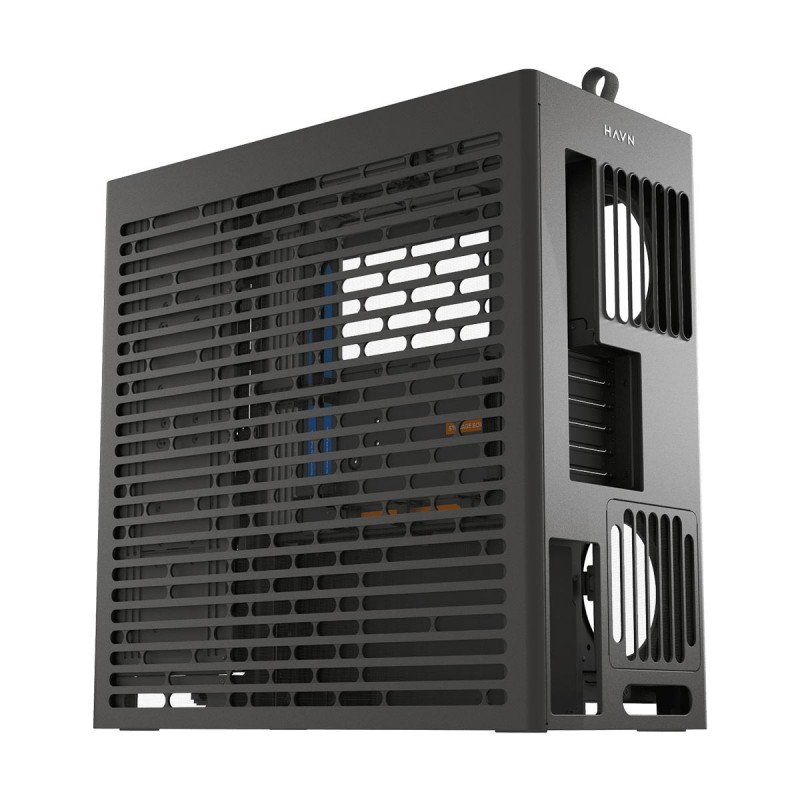

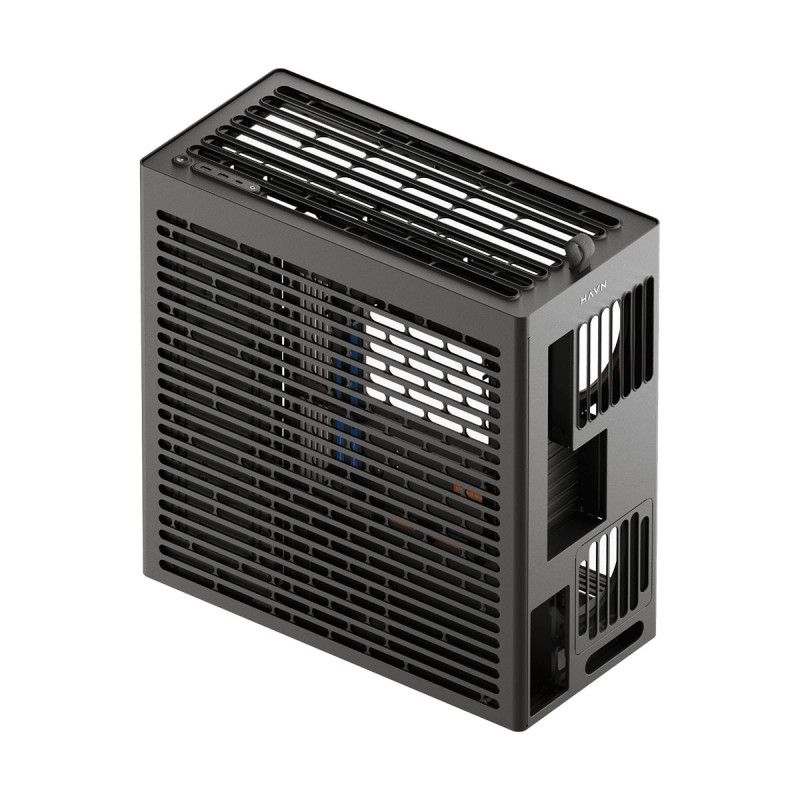

The HS 420 VGPU mid-tower case combines functional beauty with user-centric innovation. Designed by the HAVN team, this case is crafted to deliver superior GPU airflow, featuring a VGPU Mount Kit with a PCI Express® 5.0 riser cable. Its elegant panoramic housing, hybrid structure, optimized airflow, and smart cable management system make it the ultimate sanctuary for your gaming setup. This product does not include the flat, standard bottom fan bracket as featured on the Base Edition. This will be available for purchase separately soon.

HAVN Hybrid Structure for Optimal GPU Cooling: The HS 420 VGPU has a dual-chamber design with balanced airflow and a traditional case size ratio, channeling cool air from the bottom intake directly onto the centrally positioned GPU.​

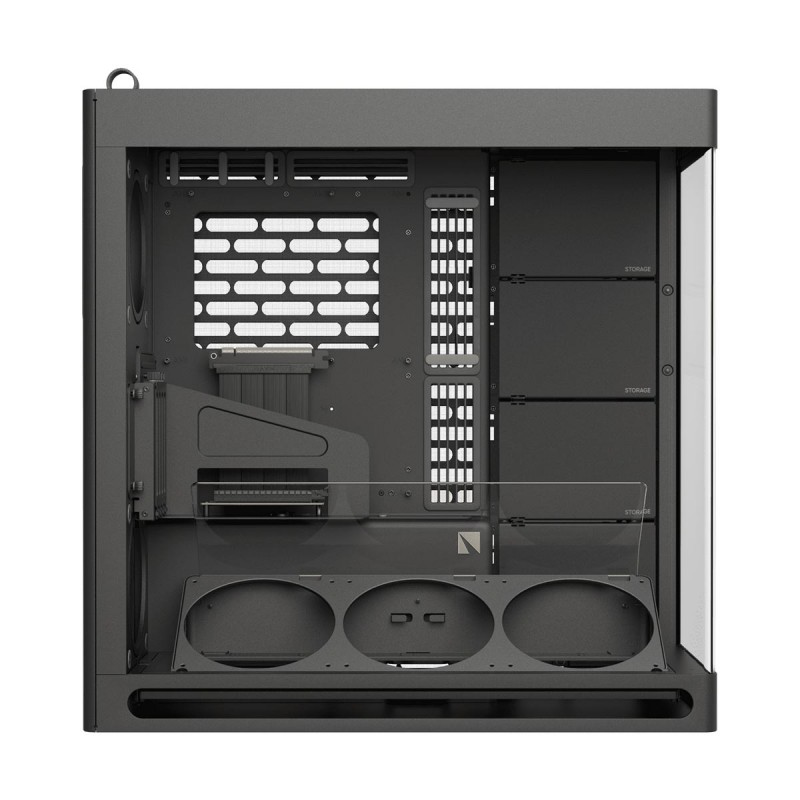

GPU Centric Design: The HAVN Hybrid Structure places the GPU front and center, fully showcased behind the panoramic Unisheet glass. This design not only emphasizes your key components but also enhances GPU airflow for optimal performance.

Mirrored Airflow: An additional fan intake at the bottom of the rear panel channels cool air directly to your graphics card, perfectly balancing intake and exhaust. This ensures peak performance and helps maintain a cleaner, dust-free system.

Adjustable VGPU Bracket: With different GPU thicknesses, the vertical GPU bracket can be adjusted horizontally to optimize the GPU's distance to the glass air guide.

Cooling Power & Compatibility: The HS 420 VGPU accommodates up to eleven 140mm fans and supports 420mm radiators on both the top and side.

UniSheet heat-formed Glass Panel for Panoramic View: We challenged the limits of production to engineer the smallest possible curve radius and minimize visual distortion, providing the user with a clear and continuous view of the inside of the case.​

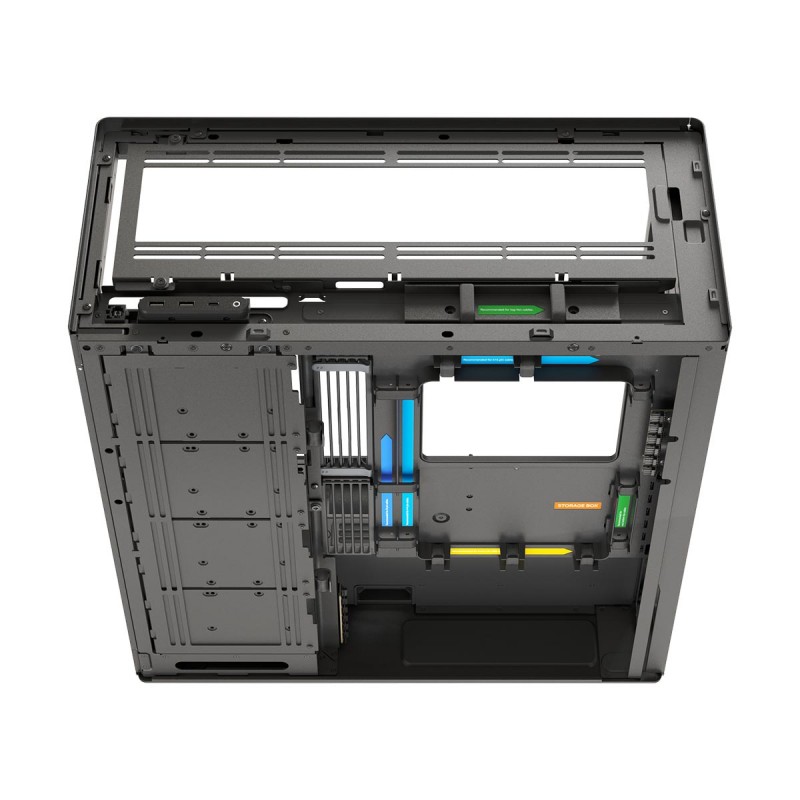

Unique SimpliCable Routing System: Uniquely user-friendly SimpliCable routing system and fan hub - top-to-bottom grooved guides cleanly route your cables for a pristine overall appearance.

Cable Management Re-Invented: Clever silicon pass-throughs with stabilizing clips allow for precision cable management.

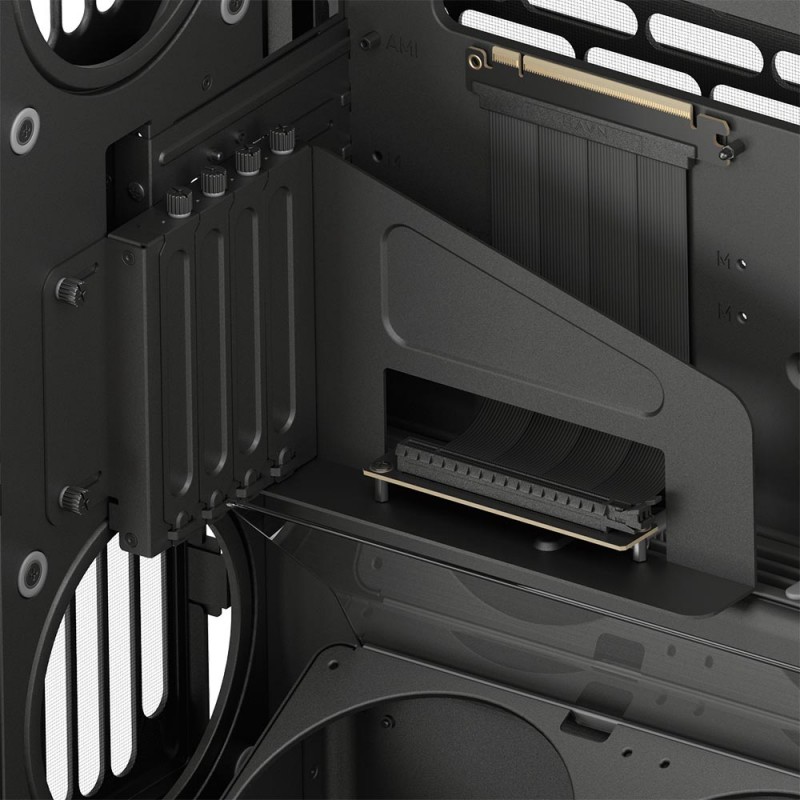

Lightning-fast Riser Cable Included: The VGPU Mount Kit and PCI Express 5.0 X16 riser cable allow you to showcase your hardware without compromising on performance.

Vibration Isolation: All of the fan brackets have flexible rubber to isolate the bracket from the chassis and avoid resonance build up.

Customization: Customizable space accommodates a combination of storage, fans, radiators, and portable displays (VESA mounting bracket included)

ModelHVN-CA-HS420-08
ColourBlack
LightingNone
MaterialsSGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
Dimensions541mm x 260mm x 547mm
Form FactorMid Tower
Motherboard SupportE-ATX, ATX, Micro ATX, Mini-ITX

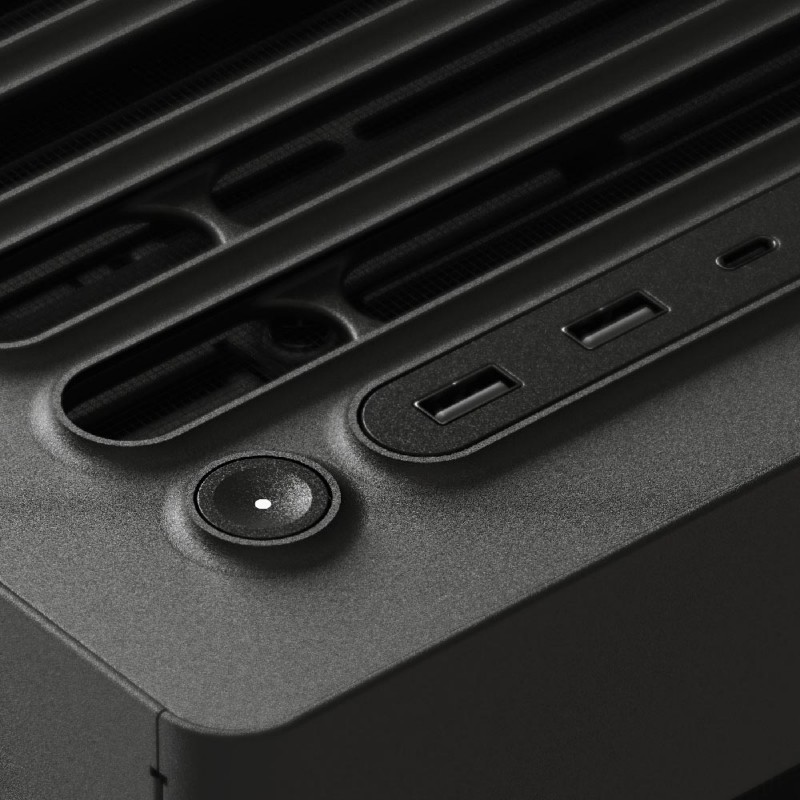

Front I/O

2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-C
1 x Headphone Out/Mic In
1 x Power Button
1 x Reset Button

Side PanelTempered Glass
Drive Bays

5.25": 0
3.5" / 2.5" Combo: 4 / 8
3.5": 2
2.5": 0

Expansion Slots6 Horizontal, 4 Vertical
Includes Vertical GPU Mounting and PCIe 5.0 x16 Riser Cable
Fan Support

Front: None
Top: 3 x 120mm / 3 x 140mm
Back: 2 x 120mm / 2 x 140mm
Bottom: 3 x 140mm
Side: 3 x 120mm / 3 x 140mm

Radiator Support

Front: None
Top: 420mm / 360mm / 280mm / 240mm / 140mm / 120mm
Back: None
Bottom: None
Side: 420mm / 360mm / 280mm / 240mm / 140mm / 120mm

Clearances

CPU Cooler: 185mm
GPU Length: 470mm
PSU Length: 220mm

Weight19.0 kg

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration2 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

HAVN HS 420 VGPU Panoramic Tempered Glass Mid Tower E-ATX Case with Vertical GPU Mount — Black

HS 420
HS 420 VGPU (Vertical GPU Mount & Riser)

Black
White

- TechPowerUp Editor's Choice & Innovation Awards
- High Air Flow Design To Keep Components Cool
- UniSheet Heat-Formed Panoramic Glass Panel

- Intuitive SimpliCable Routing System & Fan Hub
- Mid Tower E-ATX Form Factor
- Colour: Black
- Supports Vertically Mounted Graphics Card
- Includes PCI-Express 5.0 x16 Riser Cable

- 1 x USB Type-C 10Gb/s Port
- 2 x USB Type-A 5Gb/s Ports
- 1 x 3.5mm Combo Audio Jack
- 8 x 2.5" / 4 x 3.5" Combo Drive Bays
- Up to 9 x 120mm / 11 x 140mm
- Supports up to 2 x 420mm Radiator
- Cooler Clearance: Up to 185mm
- GPU Clearance: Up to 470mm
- Includes ESD-Safe Gloves - No More Fingerprints
- 2 Year Warranty
