A WiFi 6 router with four Gigabit ports, suitable for home internet up to 1000 Mbps, connecting many devices, and reducing latency. The new Wi-Fi 6 chip with a 4-nm made process delivers amazing powers and an impressive efficiency bump, enabling immersive online gaming streams, multiple 4K live feed, and maintain responsive. Equipped with Wi-Fi 6, WR3000 boasts the highest 160 MHz bandwidth and 1024-QAM to reach up to 3 Gbps speeds, which is more than 2.5X faster than the last-gen AC 2x2 WiFi router. Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage. The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, providing up to 8X (2.4 GHz) to 16X (5 GHz) greater network capacity to be more responsive under heavy use. Designed to connect up to 256 devices, everyone can enjoy a more efficient network that loads faster without performance. Enables work from home and secure remote access with the support of popular VPN protocols. (Requires firmware newer than 1.16.1). Supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices. Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

ModelWR3000
Wireless StandardIEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Maximum Speed802.11ax (2.4GHz): Up to 574 Mbps
802.11ax (5GHz): Up to 2402 Mbps
Connectivity
1 x 1Gbps RJ45 WAN / LAN Port
3 x 1Gbps RJ45 LAN Port
WPSYes
SecurityWPA/WPA2/WPA3/WPS
Antennas
4 x external
Warranty
1 Year

Detailed Information

Model VersionWR3000 1.0
CPU

Chipset

  • MT7981

CPU Details

  • 1.3 GHz Dual Core CPU, ARM Cortex-A53
Memory/Storage

Flash/ROM

  • 16 MB (128 Mbit) NOR

DDR/RAM

  • 256 MB (2 Gbit) DDR2
Wireless

5 GHz Wi-Fi Speed

  • 2402 Mbps

2.4 GHz Wi-Fi Speed

  • 574 Mbps

5 GHz Wi-Fi Streams

  • 2T2R (2x2 MIMO) with an Extra Stream

2.4 GHz Wi-Fi Streams

  • 2T2R (2x2 MIMO)

Wi-Fi Antennas

  • 4 x Fixed

5GHz Antenna Gain Max

  • 4.8dBi

2.4 GHz Antenna Gain Max

  • 3.4dBi

FEM or PA/LNA

  • 5 GHz: 3 x Internal
  • 2.4 GHz: 2 x Internal

Beamforming

  • True

Range Performance

  • Max: 200m (656ft)
    • Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance

  • Two wooden walls with thickness < 10 cm (4'')
  • One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces

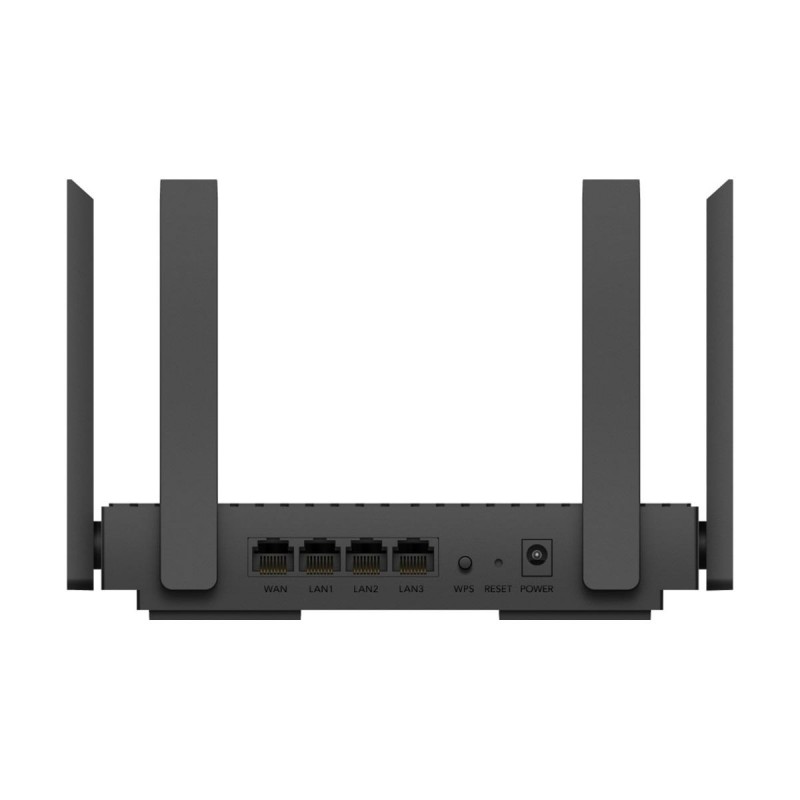

Gigabit RJ45 Ports

  • 4

Ethernet Notes

  • 1 x WAN Port, the rest are LAN Ports

LED

  • System
  • Internet
  • WAN
  • LAN
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi

Physical Buttons

  • WPS Button
  • Reset Button

Power Input

  • DC Jack
Power

Power Methods

  • DC

DC

  • 12V 1A

Power Adapter

  • Input: 100 - 240 V, 50/60 Hz AC
  • Output: 12V 1A DC

Max Power Consumption

  • 11.5W

Idle Power Consumption

  • 4.2W
Reliability

Environment

  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
CertificationsFCC, CE
Mechanical

Installation

  • Desktop
  • Wall-mount

Dimensions

  • 183.3 x 109 x 35 mm

Product Weight

  • 295g

Package Contents

  • WR3000
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Warranty1 Year
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration1 Year
