ASSASSIN VC ELITE WH

The ASSASSIN series adds to its impeccable cooling line with the ASSASSIN VC ELITE WH. With the new white aesthetic, the ASSASSIN VC ELITE WH includes a vapor chamber at the base that improves heat transfer dramatically while increasing the TDP to 300 watts!

ASSASSIN VC ELITE WH

EMBRACE THE SUPREME

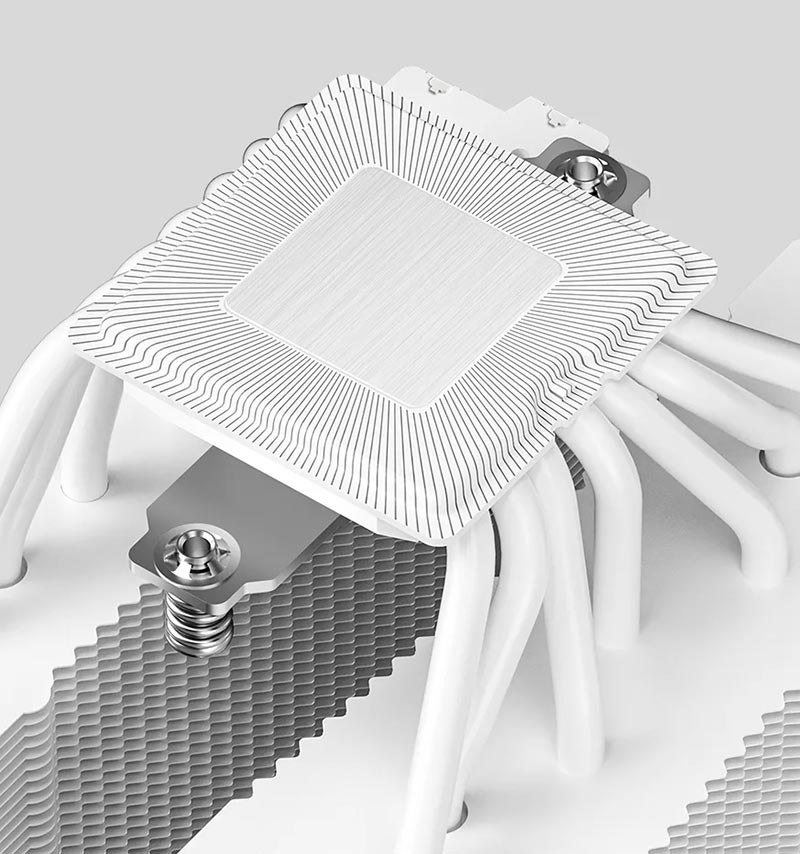

VAPOR CHAMBER-ENHANCED

Vapor chambers are essentially large, flattened heatpipes with high thermal conductance. In the ASSASSIN IV VC series, the heat is extracted through the coldplate, which starts the cooling process in the planar chamber. The heat gets equalized and sent up the heatpipes to get cooled further by the fin stacks. This solution raises the cooling capacity to an astounding 300W of TDP!

IN QUIET OR PERFORMANCE MODE

With a simple slide of a switch, the ASSASSIN VC ELITE WH can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.

ALL CLEAR!

The ASSASSIN VC ELITE WH's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.

RAM Clearance
Intel LGA1851/1700/1200/115X: Unobstructed
Intel LGA20XX 63mm
AMD AM4/AM5: Unobstructed

BE COOL, BE CALM

A key factor in the ASSASSIN VC ELITE WH's extremely silent operation is the use of three-phase, six-slot, four-pole fan motors with low voltage and power consumption. The high-end true FDB bearings in each of the fans are the gold standard, and for good reason. DeepCool is so confident in our new design that the ASSASSIN VC ELITE WH comes with 6 years of limited warranty coverage!

120mm (Performance / Quiet):
500~1700 RPM±10% / 500-1350 RPM+10% Fan Speed
58.06 CFM / 46.75 CFM Fan Airflow
≤22.5 dB(A) / ≤19.9 dB(A) Fan Noise

140mm (Performance / Quiet):
500~1800 RPM±10% / 500-1450 RPM+10% Fan Speed
61.25 CFM / 48.55 CFM Fan Airflow
≤23.7 dB(A) / ≤20.5 dB(A) Fan Noise

EXCEPTIONAL BY DESIGN

Featuring a vapor chamber-enhanced base and seven heat pipes that deliver extremely efficient heat transfer through two fin-array heat sink towers for another level of high heat dissipation. The included DM9 thermal paste meets the rigorous standards used in industrial applications.

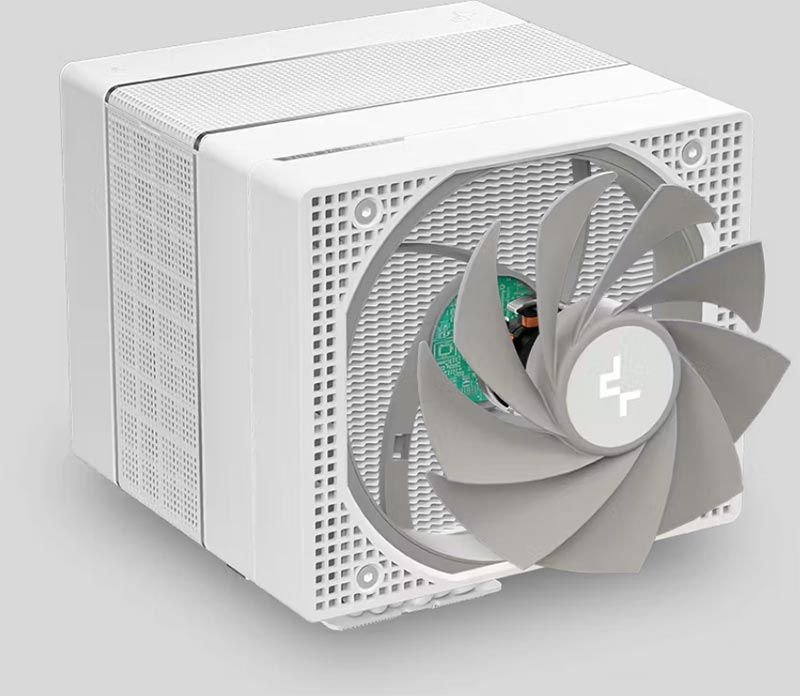

THE FLOW BELOW

Due to the center 140mm fan sitting deep into the heart of the ASSASSIN VC ELITE WH, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.

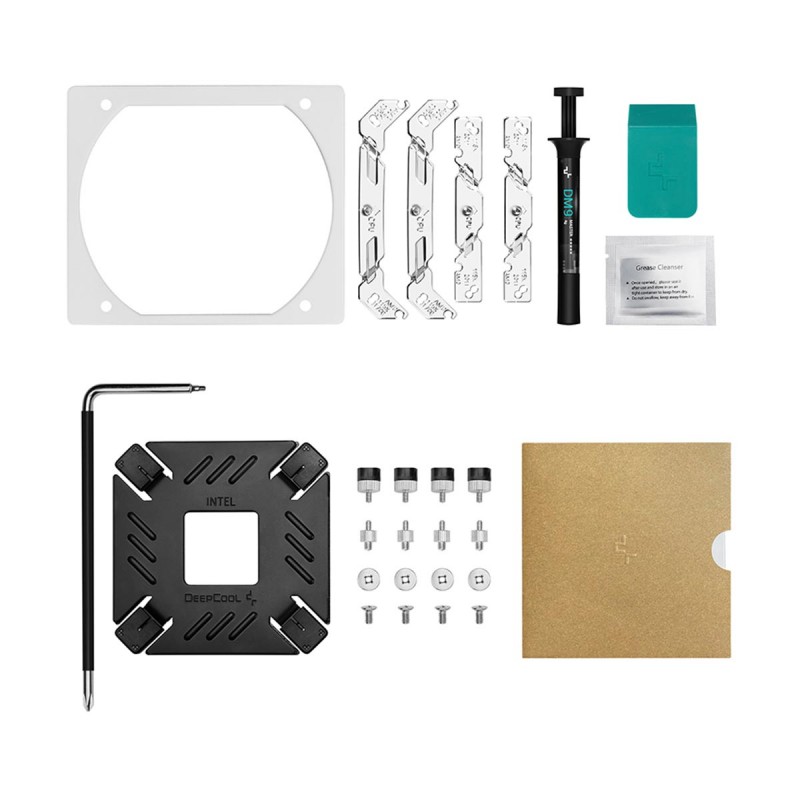

STREAMLINED INSTALLATION

Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.

WIDE RANGE OF MODERN CPU SOCKET COMPATIBILITY

The ASSASSIN VC ELITE WH supports virtually all modern mainstream CPU sockets from AMD and Intel, including the LGA1851 and AM5.

Intel: LGA1851/1700/1200/115X/20XX
AMD: AM5/AM4

Model	R-ASN4-WHNVNN-GJD
Socket Compatibility	Intel: LGA2066/2011-v3/2011/1851/1700/1200/1150/1151/1155 AMD: AM4, AM5
Cooler Height	164mm
Heatsink Material	Aluminium
Heatpipes	6 x 7mm
Fan Size	1 x 120mm, 1 x 140mm
Fan Specs	120mm (Performance Mode): Speed: 500-1700 RPM ± 10% Airflow: 58.06 CFM Pressure: 2.10 mmH2O Noise: < 29.3 dBA 140mm (Performance Mode): Speed: 500-1800 RPM ± 10% Airflow: 61.25 CFM Pressure: 3.76 mmH2O Noise: < 29.3 dBA 120mm (Quiet Mode): Speed: 500-1350 RPM ± 10% Airflow: 46.75 CFM Pressure: 1.35 mmH2O Noise (Overall): < 22.6 dBA 140mm (Quiet Mode): Speed: 500-1450 RPM ± 10% Airflow: 48.55 CFM Pressure: 2.46 mmH2O Noise (Overall): < 22.6 dBA
Lighting	None
Dimensions	144mm x 147mm x 164mm
Weight	1772 g
Warranty	6 Years

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	6 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

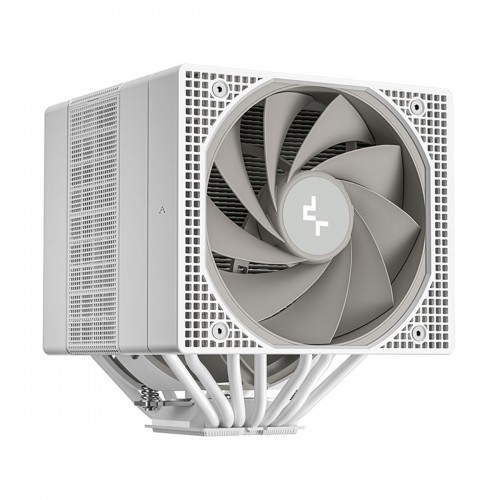

DEEPCOOL ASSASSIN VC ELITE WH Heatsink and Fan Dual Tower Air Cooler, 120mm & 140mm — White

Black

White

- Twin Tower Cooler with Dual Fans
- 1 x 120mm & 1 x 140mm Fan
- Supports Optional Third Fan
- Colour: White
- Thermal Capacity: 300w TDP
- Quiet & Performance Mode
- Fan Speed (120mm Perf): 500 - 1700 RPM ±10%
- Fan Speed (140mm Perf): 500 - 1800 RPM ±10%
- Airflow (120mm Perf): Up to 58.06 CFM
- Airflow (140mm Perf): Up to 61.25 CFM
- Static Pressure (120mm Perf): Up to 2.10 mmH20
- Static Pressure (140mm Perf): Up to 3.76 mmH20
- Noise (Quiet Mode): Up to 22.6 dBA
- Noise (Performance Mode): Up to 29.3 dBA
- RAM Clearance: No Conflict (Excluding LGA20xx)
- Intel Sockets: LGA1851, LGA1700, More
- AMD Sockets: AM5, AM4
- Shrouded Fan Design
- Magnetic Top Cover
- 6 Year Warranty

Product Code: R-ASN4-WHNVNN-GJD
