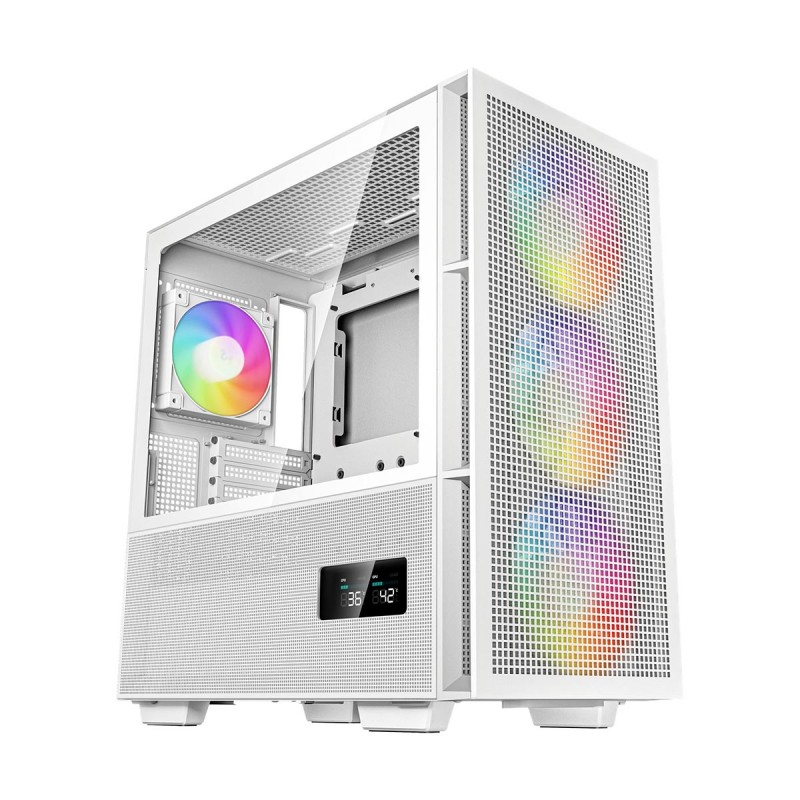

The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH560 DIGITAL WH is a newly designed mid-tower case with a concentrated focus on increased airflow throughout the entire chassis.

Three bright PWM enabled 140mm ARGB fans are mounted in  front of the main compartment, a hybrid side panel, and a dual status digital screen sets the CH560 DIGITAL WH apart from the competition.

The CH560 DIGITAL WH provides exceptional airflow from all sides of the case, from the high airflow front to the hybrid tempered glass side panel, cool air is always available for the modern power-hungry components.

A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.

Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double-status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5-second intervals). A simple to use application will give you control of the display statuses.

The CH560 DIGITAL WH has a plethora of cooling configurations, from the ability to mount 360mm radiators on the top and front to the three included 140mm ARGB fans up front and a 120mm ARGB at the rear—the cooling configurations are endless.

With the ability to support up to E-ATX motherboards, 175mm tall CPU coolers, 380mm GPUs, and 170mm PSUs, the CH560 DIGITAL WH can be configured with a wide range of modern components.

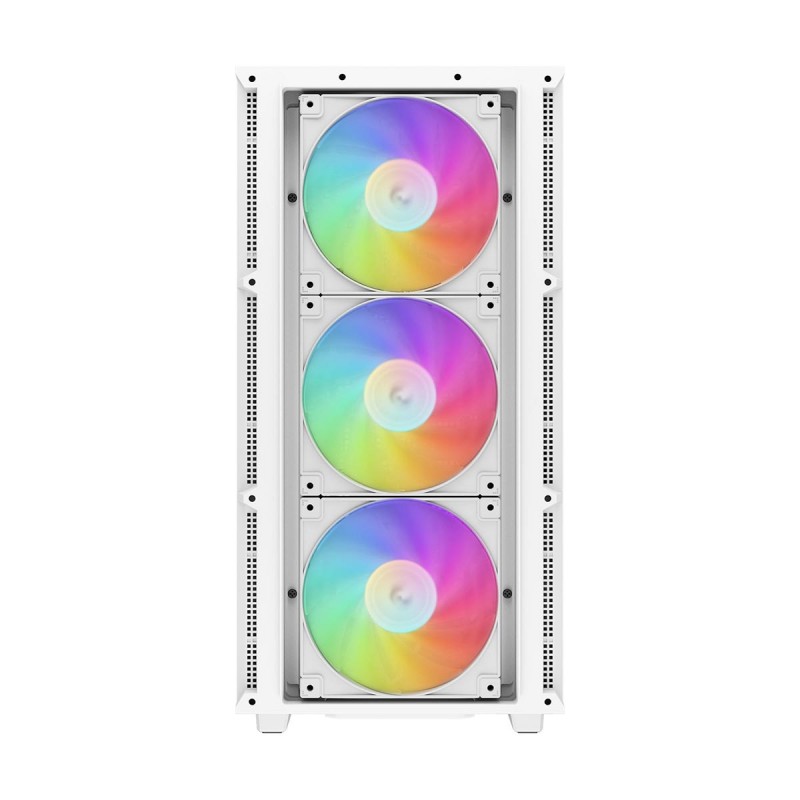

Three luminous PWM enabled 140mm ARGB fans come pre-installed on the front of the CH560 DIGITAL WH and introduce an abundant amount of fresh air into the chassis, these fans are mounted outside of the main compartment to provide maximum clearance for the largest of GPUs while maintaining a smaller footprint. The rear 120mm ARGB fan is also PWM enabled and will exhaust the warm air out of the chassis.

ModelR-CH560-WHAPE4D-G-1
ColourWhite
LightingARGB
MaterialsABS, SPCC, Tempered Glass
Dimensions458mm x 230mm x 471mm
Form FactorMid Tower
Motherboard SupportMini-ITX, Micro-ATX, ATX, E-ATX
Front I/O1 x USB 3.0
1 x USB 3.1 Type-C
1 x Headphone Out/Mic In
1 x Power Button
1 x LED Control Button
Side PanelTempered Glass
Drive Bays5.25": 0
3.5"/2.5" Combo: 0
3.5": 2
2.5": 2
Expansion Slots7
Fan SupportFront: 3 x 120mm / 3 x 140mm (3 x 140mm ARGB fans included)
Top: 3 x 120mm / 2 x 140mm
Back: 1 x 120mm / 1 x 140mm (1 x 120mm ARGB fan included)
Bottom: None
Inside: 2 x 120mm
Radiator SupportFront: 360mm / 280mm / 240mm / 140mm / 120mm
Top: 360mm / 280mm / 240mm / 140mm / 120mm
Back: 140mm / 120mm
Bottom: None
Inside: None
ClearancesCPU Cooler: 175mm
GPU Length: 380mm
PSU Length: 170mm
Weight7.5 kg

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration2 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

DEEPCOOL CH560 DIGITAL WH ARGB Tempered Glass Mid Tower E-ATX Case with Digital Display — White

- Mid Tower E-ATX Form Factor Case
-
Colour: White
- Tempered Glass Side Panels
- Digital Display to Monitor System Vitals
- 1 x USB Type-C 10Gb/s Port
- 1 x USB Type-A 5Gb/s Ports
- 1 x 3.5mm Combo Audio Jack
- 2 x 2.5" Drive Bays
- 2 x 3.5" Drive Bays
- Up to 9 x 120mm Fans / Up to 6 x 140mm Fans
- Up To 2 x 360mm Radiators
- Cooler Clearance: Up to 175mm
- GPU Clearance: Up to 380mm
- Built-in GPU Support
- Compatible with DEEPCOOL PIXEL Bits
- 2 Year Warranty

  • Product Code: R-CH560-WHAPE4D-G-1
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
OUT OF STOCK


Price displayed is already subject to a 4% discount for EFT payments
