• AMD Socket AM5, support for AMD Ryzen 7000 Series Processors

• AMD B650


• Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules

• 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Integrated Graphics Processor:

• 1 x HDMI port, supporting a maximum resolution of 7680x4320@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

(Graphics specifications may vary depending on CPU support.)

Realtek ALC1220-VB CODEC

• ESS ES9118 DAC chip
• Support for DTS:X Ultra
• High Definition Audio
• 2/4/5.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
• Support for S/PDIF Out
  * The front panel line out jack supports DSD audio.

• Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

AMD Wi-Fi 6E RZ616 (MT7922A22M)

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.2
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  (Actual data rate may vary depending on environment and equipment.)

CPU:

• 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
  * Actual support may vary by CPU.
  * The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates at up to x8 mode.
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2)

• Support for AMD CrossFire technology (PCIEX16 and PCIEX4)


CPU:

• 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
  * Actual support may vary by CPU.
• 3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2D_CPU, M2C_CPU, M2B_CPU)
  * Actual support may vary by CPU.

Chipset:

• 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

CPU:

• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU+USB 3.2 Gen 1 Hub:

• 4 x USB 3.2 Gen 1 ports on the back panel

CPU + USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on the back panel

Chipset:

• 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 4 x USB 2.0/1.1 ports available through the internal USB headers

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 4 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x THB_U4 add-in card connector
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI
• 2.0 module only)
• 1 x power button
• 1 x reset button
• 2 x temperature sensor headers
• 1 x reset jumper
• 1 x Clear CMOS jumper

• 1 x Q-Flash Plus button

• 1 x Clear CMOS button

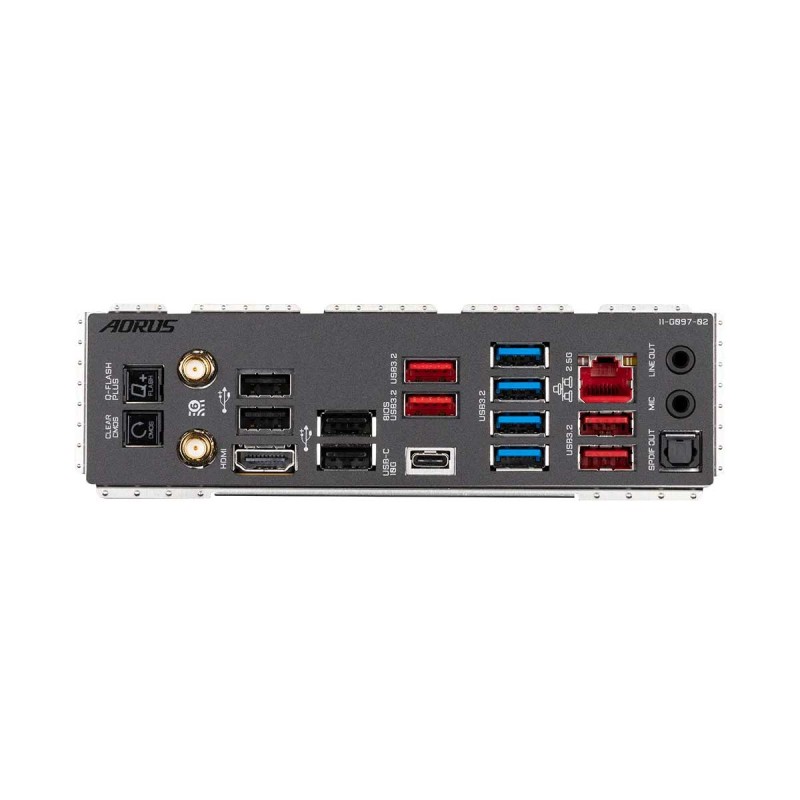

• 1 x HDMI 2.1 port
• 2 x SMA antenna connectors (2T2R)
• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
• 4 x USB 3.2 Gen 2 Type-A ports (red)
• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

• iTE I/O Controller Chip

• Voltage detection

• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• Noise detection

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus

• Norton Internet Security (OEM version)
• LAN bandwidth management software

• Support for Windows 10 64-bit / Windows 11 64-bit

• ATX Form Factor, 30.5cm x 24.4cm
