Images are for reference purposes only and product appearances/colours may vary.

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. Extended heatsink allows air to pass through, providing better heat dissipation. The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER. Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style. The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity. The factory default setting is Performance mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

Graphics ProcessingGeForce RTX 5090
Core Clock2550 MHz (Reference Card: 2407 MHz)
CUDA Cores21760
Ray Tracing Cores170
Tensor Cores680
Streaming Multi-Processors170
Memory Clock28000 MHz
Memory Size32 GB
Memory TypeGDDR7
Memory Bus512 bit
Memory Bandwidth (GB/sec)1792 GB/s
Card BusPCI-E 5.0 x16
Digital max resolution7680 x 4320
Multi-view4
Card size342 x 152 x 70 mm
PCB FormATX
DirectX12 Ultimate
OpenGL4.6
Recommended PSU1000w
Power Connectors1 x 16-pin

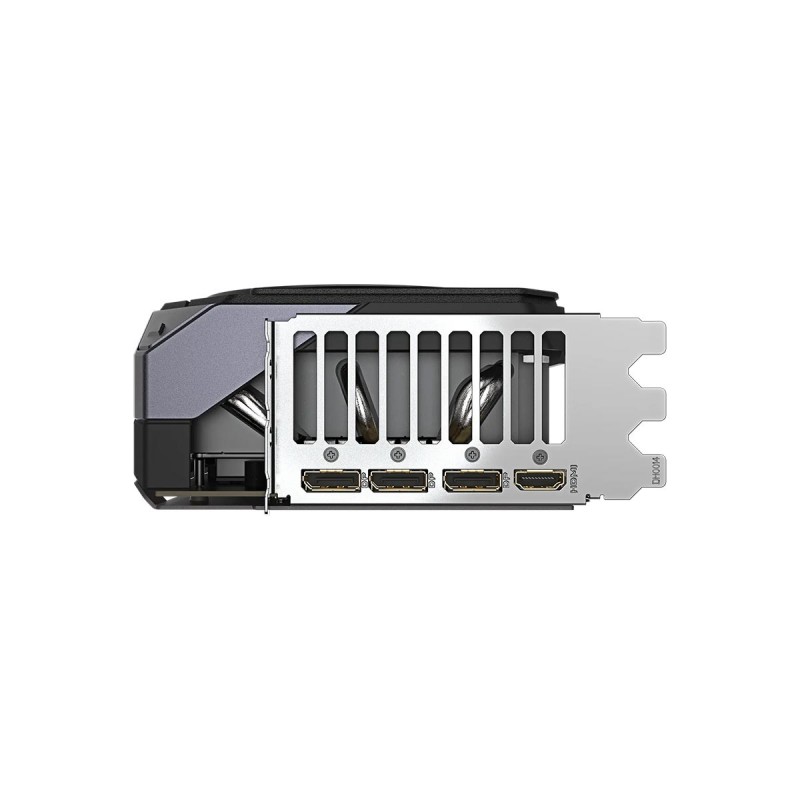

Output3 x DisplayPort 2.1a
1 x HDMI 2.1b
Multi-GPU SupportNo
AccessoriesQuick Guide
Warranty Registration
1x 12V-2x6 to 4x PCIe 8-Pin Adapter
Versatile VGA Holder
Versatile VGA Holder Manual

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
Additional 1 Year Upon Registration
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

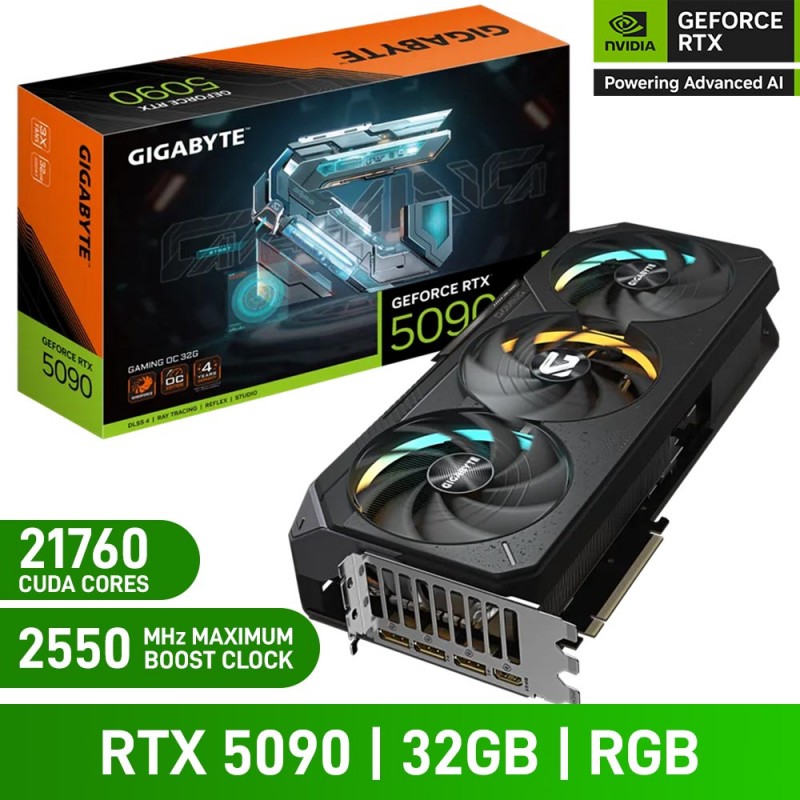

Gigabyte GeForce RTX 5090 GAMING OC 32G Graphics Card, 32GB

AORUS Infinity
AORUS Master
AORUS Master Ice
Gaming OC
WindForce
WindForce OC

- NVIDIA GeForce RTX 5090 Graphics Processor
- Base Clock: 2017 MHz
- Boost Clock: Up to 2550 MHz
- CUDA Cores: 21,760 Cores
- 4th Gen Ray Tracing Cores: 170 Ray Tracing Cores
- 5th Gen Tensor Cores: 680 Tensor Cores
- Memory: 32GB GDDR7
- Effective Memory Clock: 28,000 MHz
- NVIDIA RTX Real Time Ray Tracing
- DLSS 4 AI Rendering Technology
- Reinforced Structure with Metal Backplate
- Included GPU Support
- Server-Grade Thermal Gel
- 16.7 Million Colour RGB Halo Lighting

- 3 x DisplayPort 2.1a, 1 x HDMI 2.1b, Maximum 4 Displays
- PCIe 5.0 12VHPWR Power Connector
- 3 Year Warranty (4 Years with Registration)

  • Product Code: GV-N5090GAMING OC-32GD
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
OUT OF STOCK


Price displayed is already subject to a 4% discount for EFT payments
