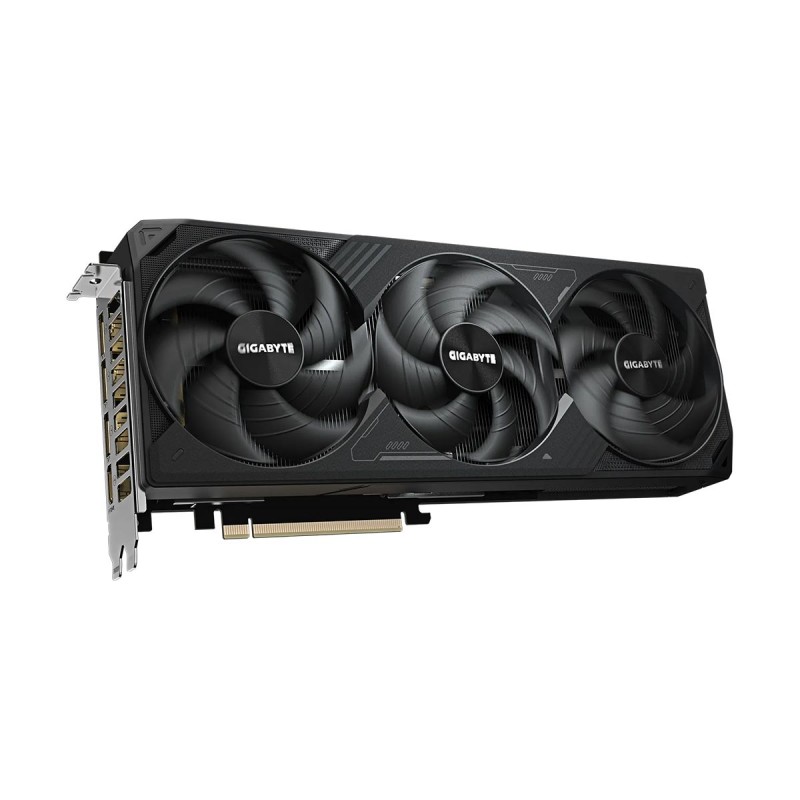

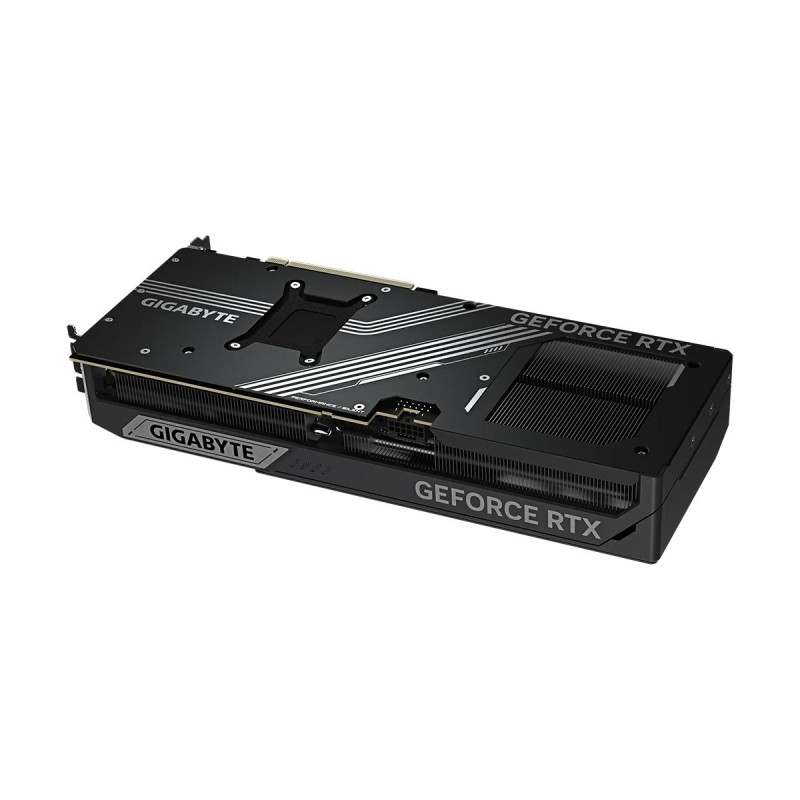

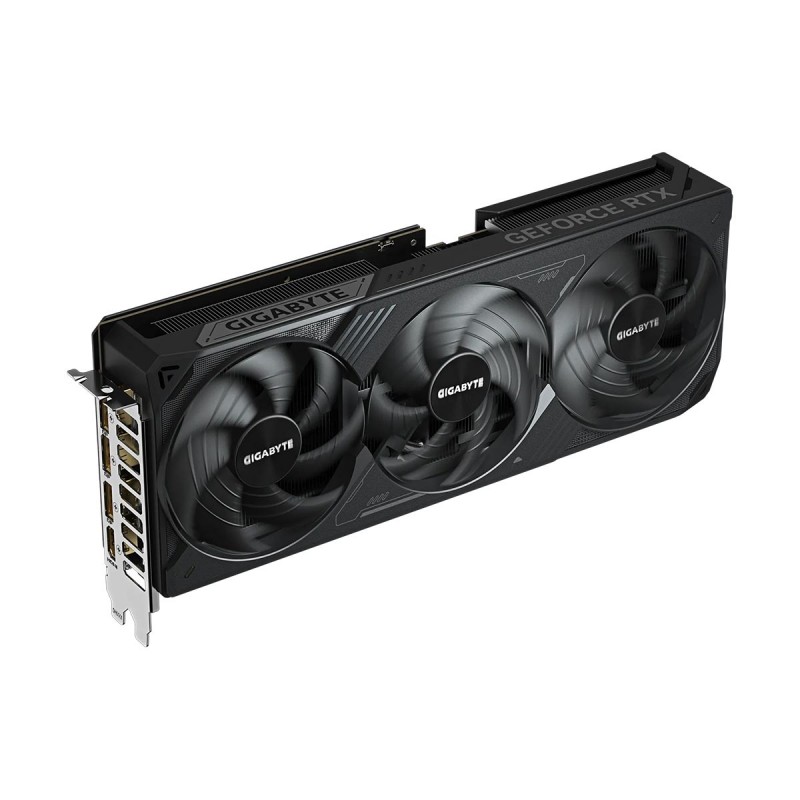

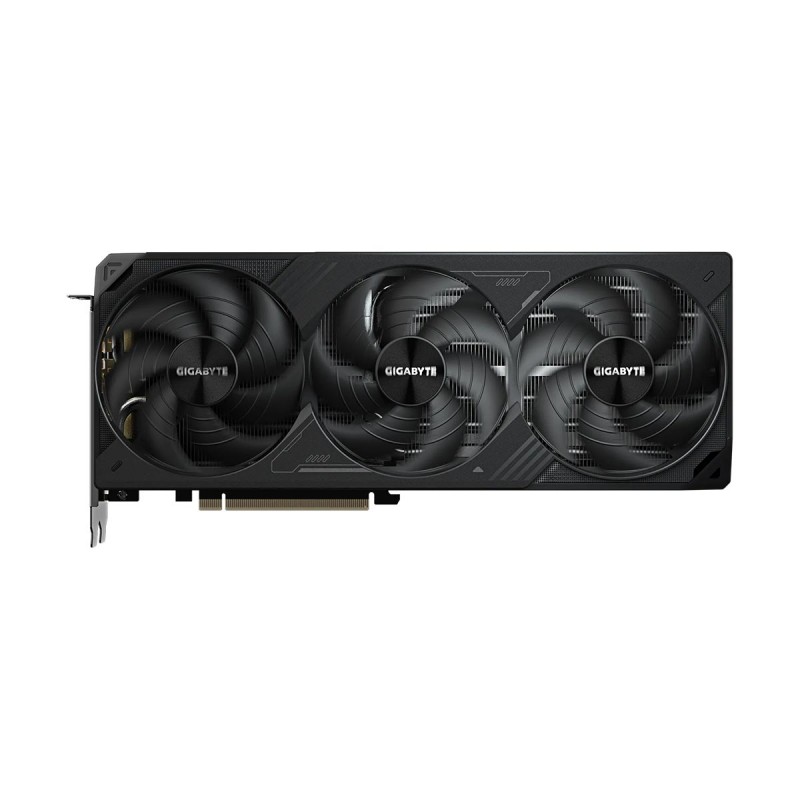

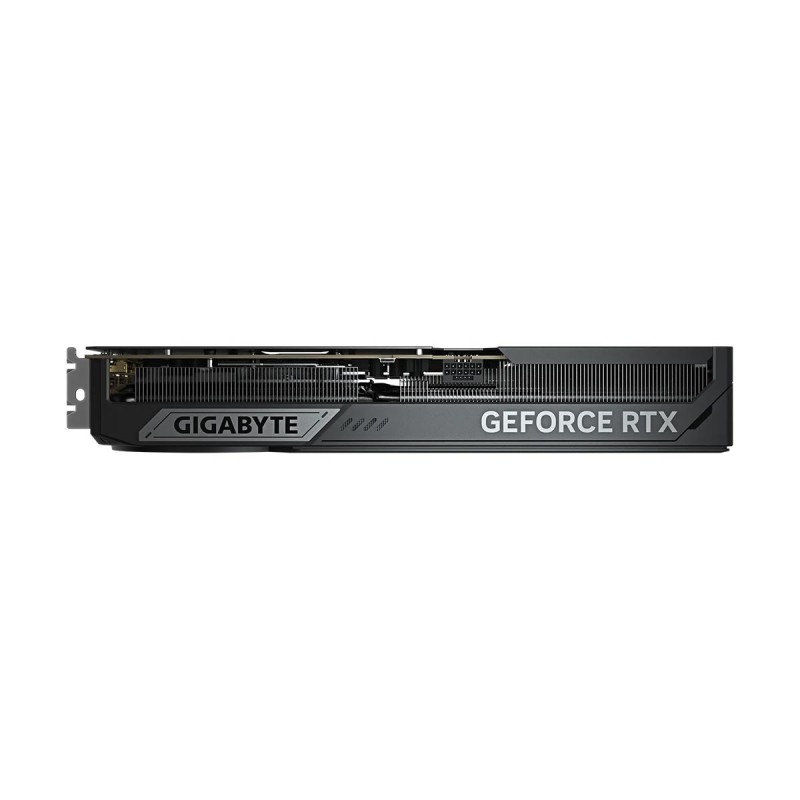

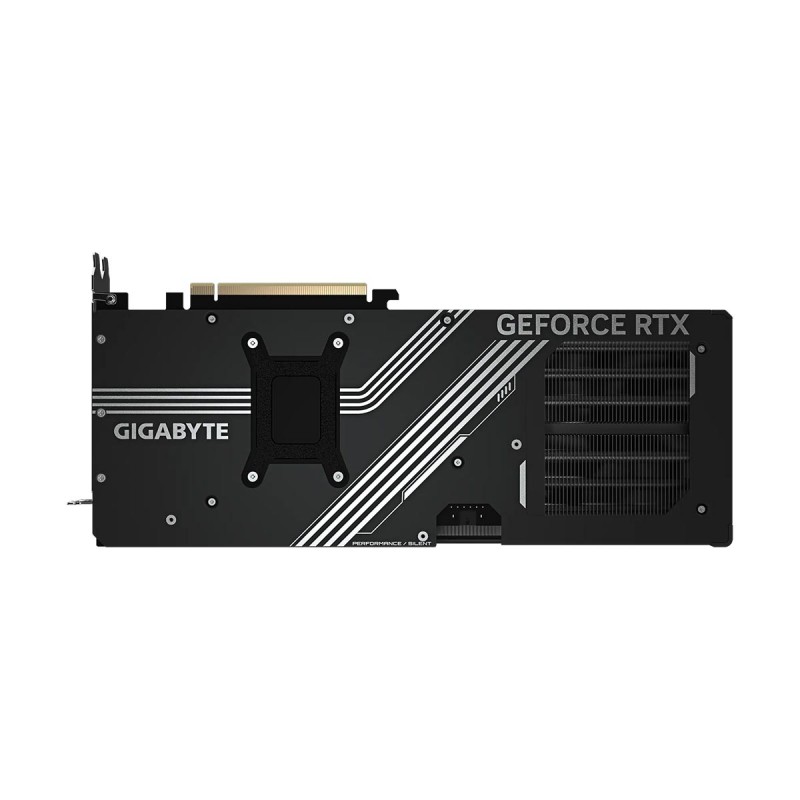

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. Extended heatsink allows air to pass through, providing better heat dissipation. The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience. The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity. Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

Graphics ProcessingGeForce RTX 5080
Core Clock2617 MHz
CUDA Cores10752
Ray Tracing Cores84
Tensor Cores336
Streaming Multi-Processors84
Memory Clock30000 MHz
Memory Size16 GB
Memory TypeGDDR7
Memory Bus256 bit
Memory Bandwidth (GB/sec)960 GB/s
Card BusPCI-E 5.0 x16
Digital max resolution7680 x 4320
Multi-view4
Card size304 x 126 x 50 mm
PCB FormATX
DirectX12 Ultimate
OpenGL4.6
Recommended PSU850w
Power Connectors1 x 16-pin

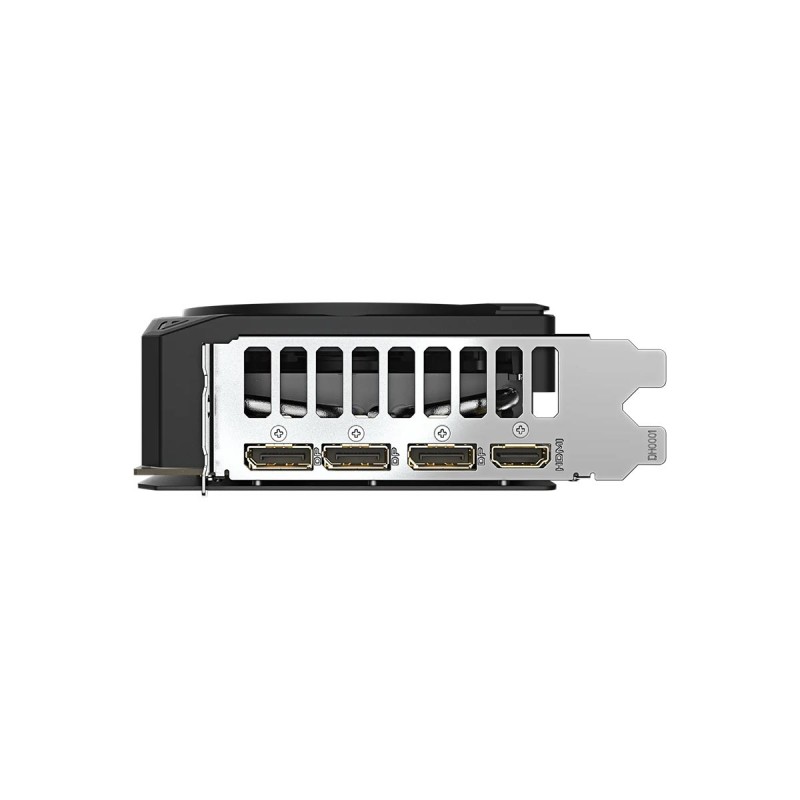

Output3 x DisplayPort 2.1a
1 x HDMI 2.1b
Multi-GPU SupportNo
AccessoriesVGA Manual
1x 12V-2x6 to 3X PCIe 8-Pin Adapter
Versatile VGA Holder
Versatile VGA Holder Manual

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

Gigabyte GeForce RTX 5080 WINDFORCE SFF 16G Graphics Card, 16GB

AORUS Master
AORUS Master Ice
Aero OC
Gaming OC
WindForce
WindForce OC

- NVIDIA GeForce RTX 5080 Graphics Processor
- Base Clock: 2295 MHz
- Boost Clock: Up to 2617 MHz
- CUDA Cores: 10,752 Cores
- 4th Gen Ray Tracing Cores: 84 Ray Tracing Cores
- 5th Gen Tensor Cores: 336 Tensor Cores
- Memory: 16GB GDDR7
- Effective Memory Clock: 30,000 MHz
- NVIDIA RTX Real Time Ray Tracing
- DLSS 4 AI Rendering Technology
- Reinforced Structure with Metal Backplate
- Included GPU Support
- Server-Grade Thermal Gel
- NVIDIA SFF-Ready

- 3 x DisplayPort 2.1a, 1 x HDMI 2.1b, Maximum 4 Displays
- PCIe 5.0 12VHPWR Power Connector
- 3 Year Warranty

  • Product Code: GV-N5080WF3-16GD
