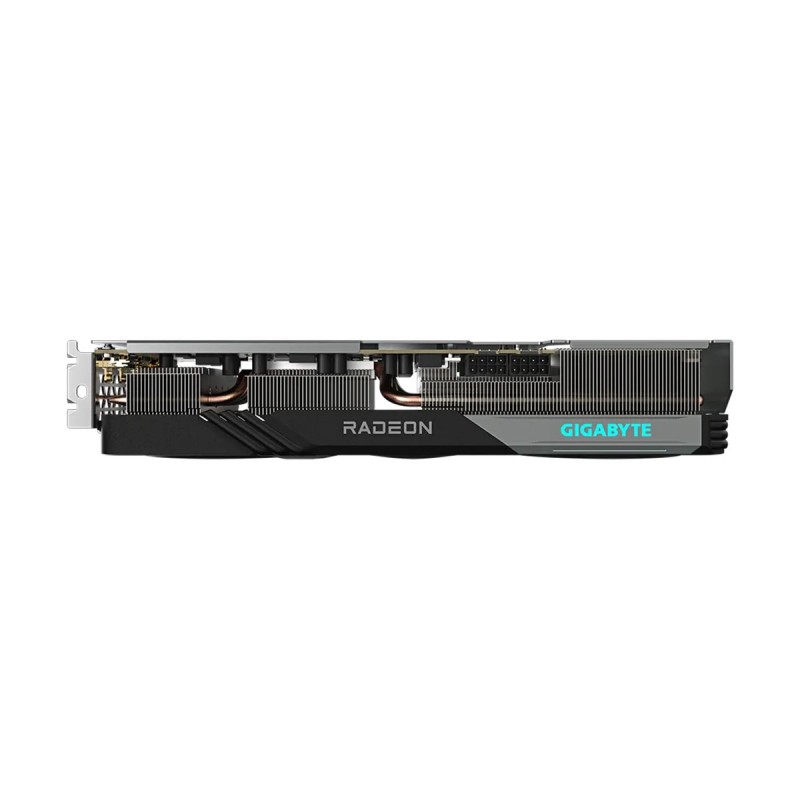

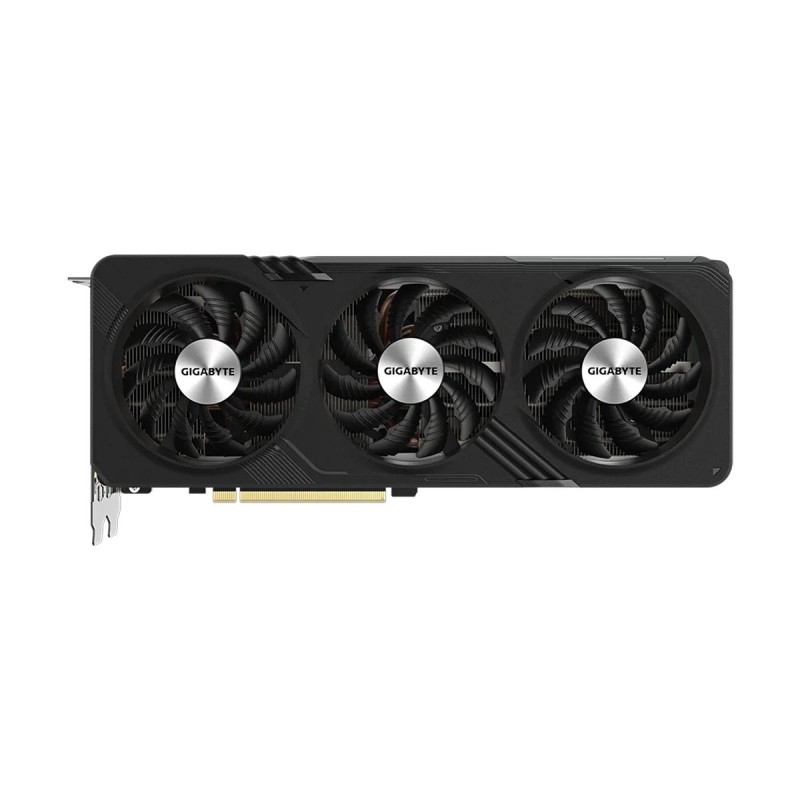

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling. Extended heatsink allows air to pass through, providing better heat dissipation. With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER. The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
| Graphics Processing | Radeon RX 7600 XT |
| Core Clock | Boost Clock: Up to 2755 MHz (Reference Card: 2755 MHz) Game Clock: Up to 2355 MHz (Reference Card: 2250 MHz) |
| Stream Processors | 2048 |
| Ray Accelerators | 32 |
| Memory Clock | 18000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Memory Bandwidth (GB/sec) | 288 GB/s |
| Card Bus | PCI-E 4.0 x16 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | 281 x 167 x 53 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 600W |
| Power Connectors | 2 x 8-Pin |

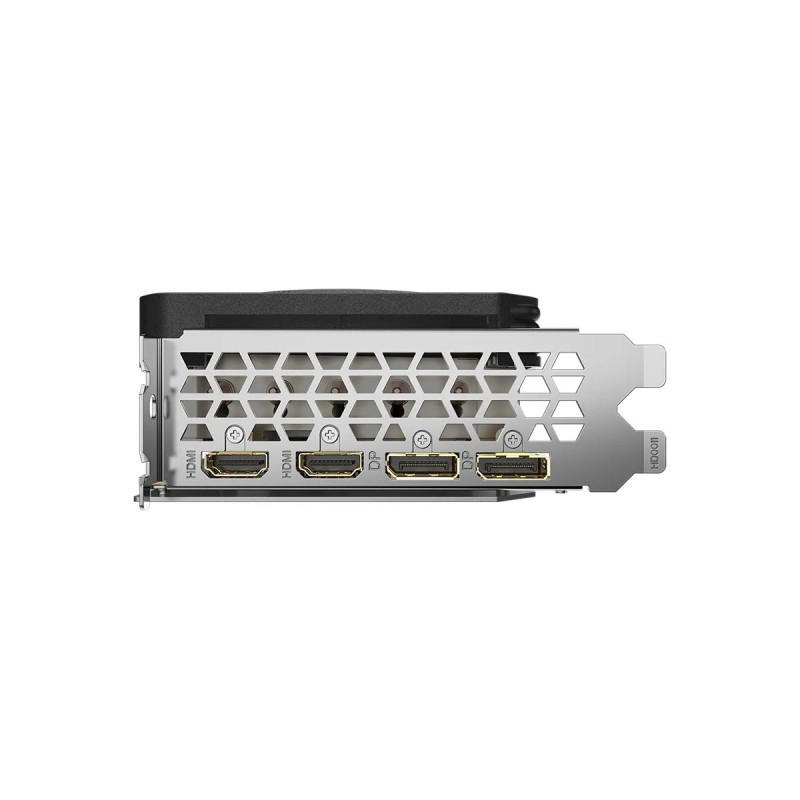

| Output | 2 x DisplayPort 2.1 2 x HDMI 2.1a |
| Multi-GPU Support | No |
| Accessories | Quick Guide |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Year |

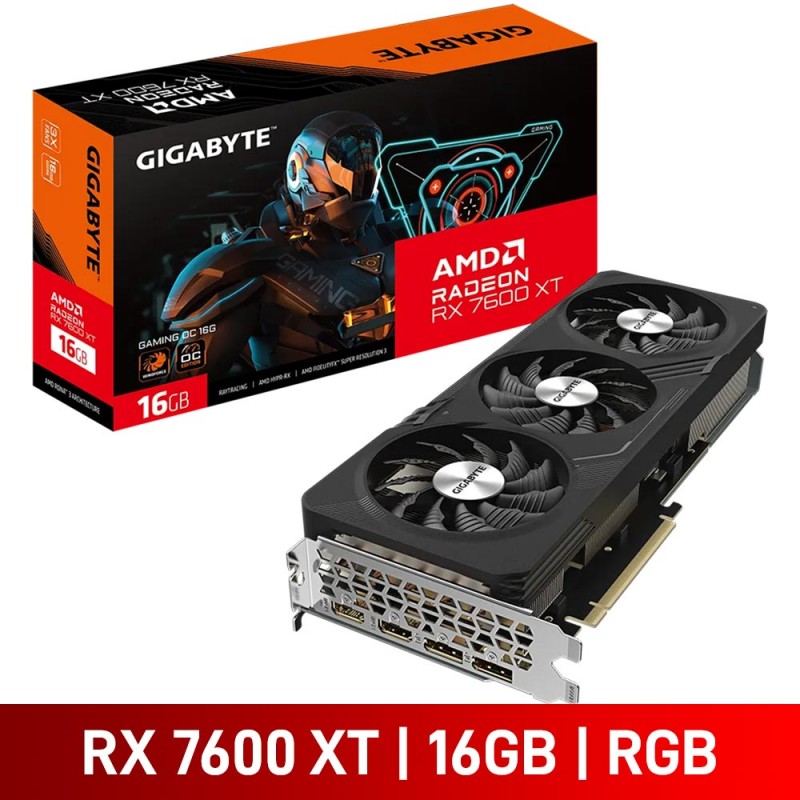

Gigabyte Radeon RX 7600 XT GAMING OC 16G Graphics Card, 16GB
- AMD Radeon RX 7600 XT Graphics Processor
- Base Clock: 1720 MHz
- Boost Clock: Up To TBD MHz
- Stream Processors: 2048
- Ray Accelerators: 32
- AI Accelerators: 64
- Compute Units: 32
- Memory: 16GB GDDR6
- Effective Memory Clock: 18,000 MHz
- Real Time Ray Tracing
- 2 x DisplayPort 2.1, 2 x HDMI 2.1a
- 2 x PCIe 8-Pin Connectors
- 3 Year Warranty
- Product Code: GV-R76XTGAMING OC-16GD
