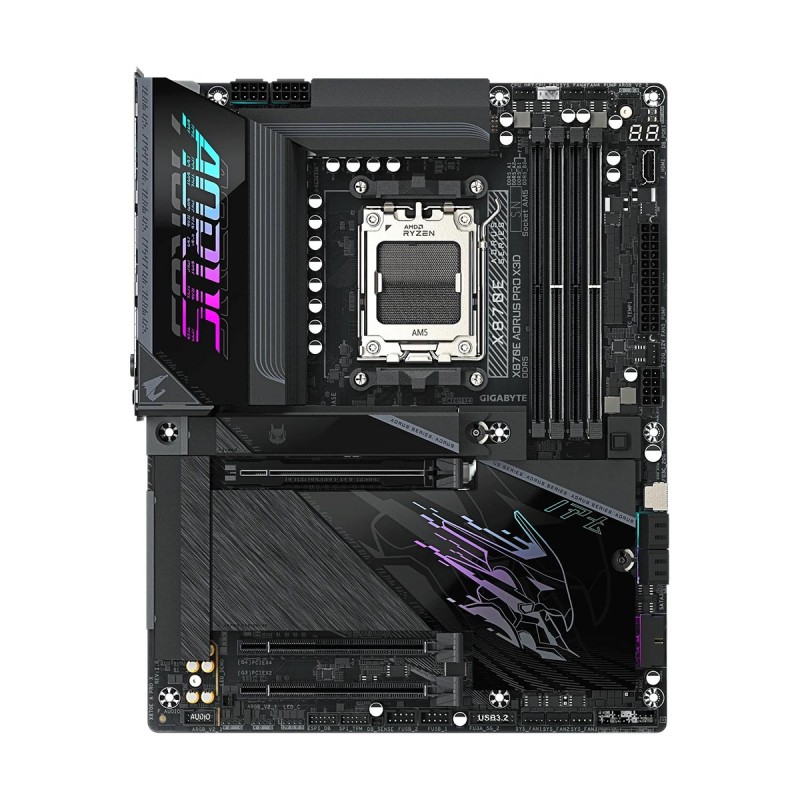

AMD Socket AM5

• Supports AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

• Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:

• 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
• Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• Support for native HDMI 2.1 TMDS compatible ports.
• 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
• Support for HDMI 1.4 version

Realtek ALC1220 CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• The back panel line out jack supports DSD audio.

• Support for S/PDIF Out


Realtek 5GbE LAN chip

5Gbps / 2.5Gbps / 1Gbps / 100Mbps

Qualcomm Wi-Fi 7 QCNCM865

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

• Support for 11be 320MHz wireless standard

Bluetooth 5.4

CPU:

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode
• The PCIEX8 slot becomes unavailable when an AMD Ryzen 8000 Series-Phoenix 1/ Phoenix 2 processor is used.


Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)


1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs

• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller.
• When a device is installed in theM2B_CPU connector, both the M2B_CPU connector and the USB4 port supported by the ASMedia USB4 controller operate at up to x2 bandwidth. When using an AMD Ryzen 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4 controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.

2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

• RAID 5 is only available on AMD Ryzen 9000 Series Processors.

RAID 0, RAID 1 and RAID 10 support for SATA storage devices

CPU+ASMedia USB4 controller:

• 2 x USB4 USB Type-C ports on the back pane

CPU:

• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

Chipset+USB 3.2 Gen 1 Hub:

• 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset:

• 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
• Supports up to 65W PD 3.0/QC 4+ fast charging
• For precautions regarding the fast charging function, refer to "USB Type-C Header" in Chapter 2-7, "Internal Connectors."
• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
• 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 3 x USB 3.2 Gen 1 ports on the back panel
• 4 x USB 2.0/1.1 ports available through the internal USB headers

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connectors
• 1 x PCIe power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 4 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x HDMI port
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
• 2 x temperature sensor headers
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers

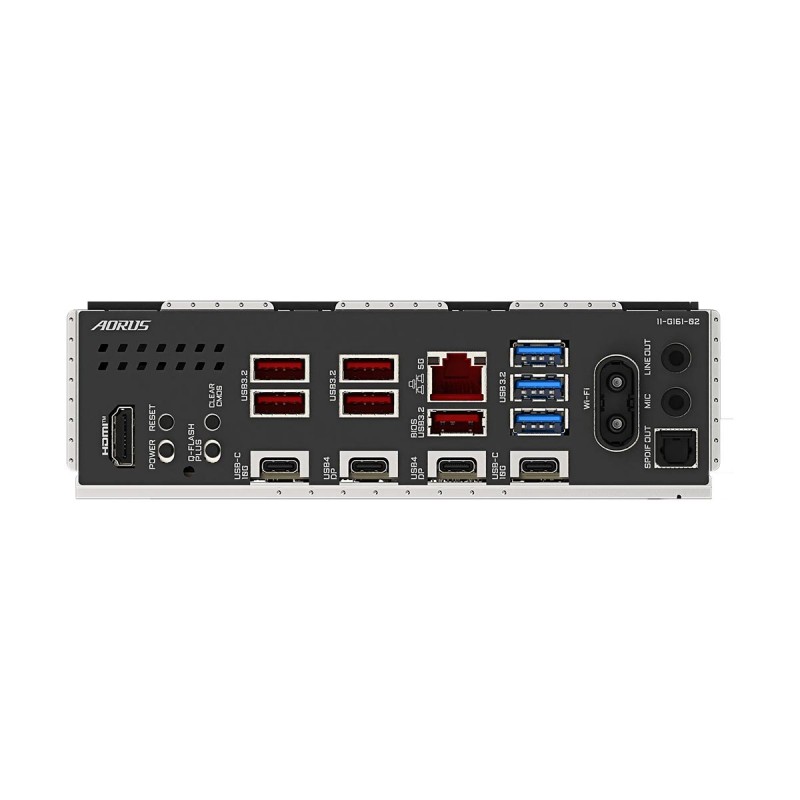

• 1 x HDMI port

• 1 x reset button
• 1 x power button
• 1 x Clear CMOS button
• 1 x Q-Flash Plus button
• 5 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x USB Type-C ports, with USB 3.2 Gen 2 support
• 2 x USB4 USB Type-C ports (DisplayPort)
• 1 x RJ-45 port
• 3 x USB 3.2 Gen 1 ports

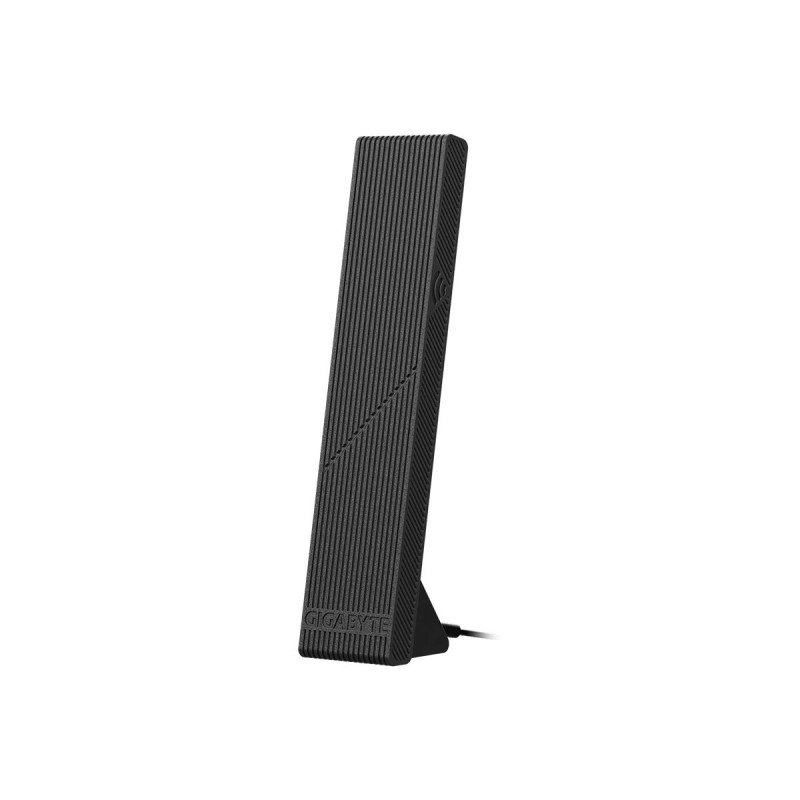

• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

• iTE I/O Controller Chip

• Voltage detection

• Temperature detection
• Fan speed detection
• Water cooling flow rate detection

• Fan fail warning
• Fan speed control
• Noise detection

1 x 512 Mbit flash

• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for GIGABYTE Control Center (GCC)

Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Norton Internet Security (OEM version)

• Support for Windows 11 64-bit

ATX Form Factor

• 30.5cm x 24.4cm
