Images are for reference purposes only and product appearances/colours may vary.

In the age of local AI, GIGABYTE AI TOP is the all-round solution to win advantages ahead of traditional AI training methods. It features a variety of groundbreaking technologies that can be easily adapted by beginners or experts, for most common open-source LLMs, in anyplace even on your desk. The all-new AI TOP Utility 2.0 brings enhanced features and broader model support, empowering users from novices to experts to unlock AI's potential right at their desks. The AI TOP Hardware features a series of GIGABYTE AI TOP products that are optimized in power efficiency and durability for AI training workloads. It includes upgradeable components and is easy to build at home.

CPU

Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2)

  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel Z890 Express Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5

  • Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • Support CUDIMM memory module
Onboard Graphics

Integrated Graphics Processor+Intel Thunderbolt 5 Controller:

  • 2 x Intel Thunderbolt 5 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 7680x4320@60 Hz (single display output)
    • Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
    • Support for DisplayPort 2.1 version and HDCP 2.3

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x Front Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs
    • When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
    • When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
    • Support for DisplayPort 2.1 version and HDCP 2.3
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • Support for HDMI 2.1 version and HDCP 2.3.
Audio

ESS ES9260 chip (rear panel audio)

  • High Definition Audio
  • 2-channel

Realtek ALC897 CODEC (front panel audio)

LAN

2 x Marvell AQtion AQC113C 10GbE LAN chips

  • 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps
Wireless Communication Module

Intel Wi-Fi 7 BE200NGW

  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • Support for 11be 160MHz wireless standard

Bluetooth 5.4

Expansion Slots

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
    • The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    • The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD.
    • If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    • The PCIEX4 slot shares bandwidth with the M2L_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector.
Storage Interface

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

  • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB)
  • 4 x SATA 6Gb/s connectors (SATA3 4~7)

Chipset+ASMedia ASM1164 chip:

  • 4 x SATA 6Gb/s connectors (SATA3 0~3)

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset+Intel Thunderbolt 5 Controller:

  • 2 x Intel Thunderbolt 5 (USB Type-C) ports on the back panel
    • Support up to 80Gbps with Thunderbolt devices
    • Support up to 40Gbps with USB4 devices
    • Support up to 20Gbps with USB 3.2 devices

CPU:

  • 1 x USB4 USB Type-C port onboard
  • 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header

Chipset:

  • 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 3.2 Gen 2 Hub:

  • 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

  • 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x M.2 Socket 3 connectors
  • 8 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x Intel Thunderbolt 4 connector (USB4® USB Type-C port)
  • 2 x USB Type-C headers, with USB 3.2 Gen 2x2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  • 1 x power button
  • 1 x reset button
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • 2 x temperature sensor headers
  • 1 x noise detection header

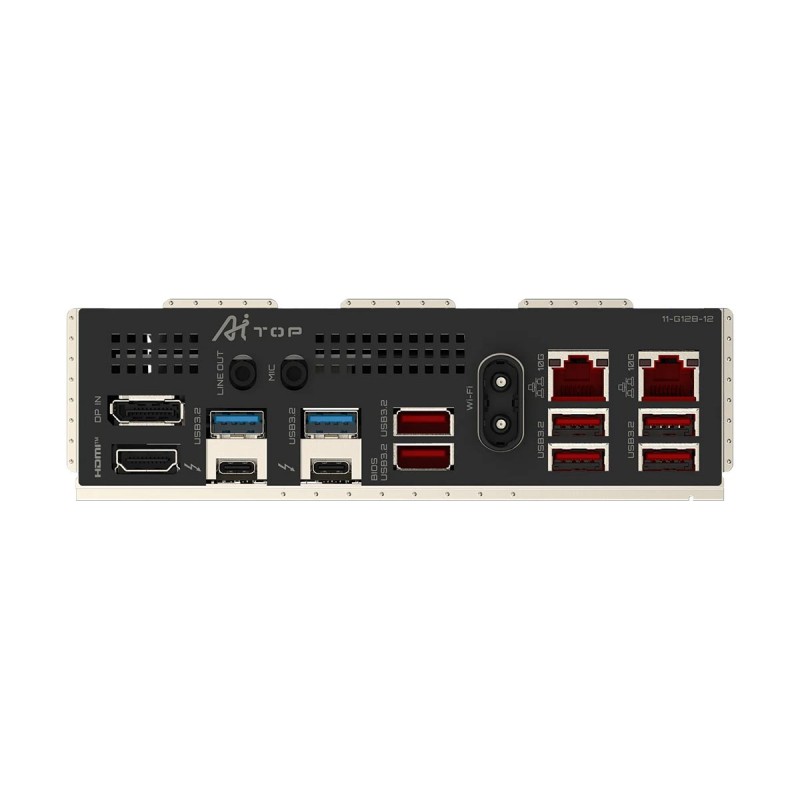

Back Panel Connectors
  • 1 x DisplayPort In port
  • 1 x HDMI port
  • 2 x audio jacks
  • 2 x Intel Thunderbolt 5 connectors (USB Type-C ports)
  • 2 x USB 3.2 Gen 1 ports
  • 6 x USB 3.2 Gen 2 Type-A ports (red)
  • 2 x antenna connectors (2T2R)
  • 2 x RJ-45 ports
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • Noise detection
BIOS

1 x 256 Mbit flash

  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)

  • Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

  • Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
  • Support for Windows 11 64-bit
Form Factor

E-ATX Form Factor

  • 30.5cm x 28.5cm
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

Gigabyte Z890 AI TOP with Wi-Fi, Intel Z890 Chipset, LGA1851, DDR5, E-ATX Desktop Motherboard

- Socket LGA1851, Intel Z890 Chipset
- Supports Intel Core Ultra (Series 2) Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-9500+ (OC)
- Supports CUDIMM Memory Modules
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 5.0 x16 Slot (x8 Electrical)
- 1 x PCIe 4.0 x16 Slot (x4 Electrical)
- 1 x M.2 PCIe 5.0 NVMe Slot
- 3 x M.2 PCIe 4.0 NVMe Slots
- 8 x SATA Ports with RAID 0/1/5/10
- 2 x 10Gbps LAN, Wi-Fi 7 & Bluetooth 5.4
- 2 x Thunderbolt 5 DP (Shared), 1 x Front TB 4 DP
- 1 x HDMI 2.1
- 2 x Rear Thunderbolt 5 / USB Type-C 80Gb/s
- 6 x Rear USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
- 2 x Rear Audio Jacks
- Rear Audio DAC: ESS ES9260A
- M.2 EZ-Latch Click & M.2 EZ-Latch Plus
- M.2 Thermal Guard XL & M.2 Thermal Guard Ext
- PCIe EZ-Latch Plus & Wi-Fi EZ-Plug
- Q-Flash Plus - Update BIOS without CPU / RAM / GPU
- Integrated RGB Lighting & 3 x ARGB Gen2 Headers
- Form Factor: E-ATX
- 3 Year Warranty

  • Product Code: GA-Z890-AI-TOP
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock with Supplier: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
    Low Stock Level

  • R14,114



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
