Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2)

• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

4 x DIMM slots, max. 256GB, DDR5

• Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Support CUDIMM memory module


Integrated Graphics Processor-Intel HD Graphics support:

• 2 x Intel Thunderbolt 4 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs

• When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
• When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
• Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices beinginstalled. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
• Support for DisplayPort 2.1 version and HDCP 2.3
• 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
• Support for HDMI 1.4 version.

ESS ES9280 chip (rear panel audio)

• Support for DTS:X Ultra
• High Definition Audio
• 2-channel

ESS ES9118 DAC chip (front panel audio)

2 x Marvell AQtion AQC113C 10GbE LAN chips

• 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps

Intel Wi-Fi 7 BE200NGW

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• Support for 11be 160MHz wireless standard

Bluetooth 5.4

CPU:

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

CPU:

• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
• 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

CPU:

• 2 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel
• Support up to 40Gbps with Thunderbolt devices
• Support up to 20Gbps with USB4 devices
• Support up to 10Gbps with USB 3.2 devices

Chipset:

• 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 2x2 Hub:

• 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header

Chipset+USB 3.2 Gen 2 Hub:

• 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

• 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports available through the internal USB headers

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 4 x system fan/water cooling pump headers
• 4 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
• 1 x HDMI port
• 1 x power button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers
• Voltage Measurement Points

• 1 x Q-Flash Plus button

• 1 x Clear CMOS button

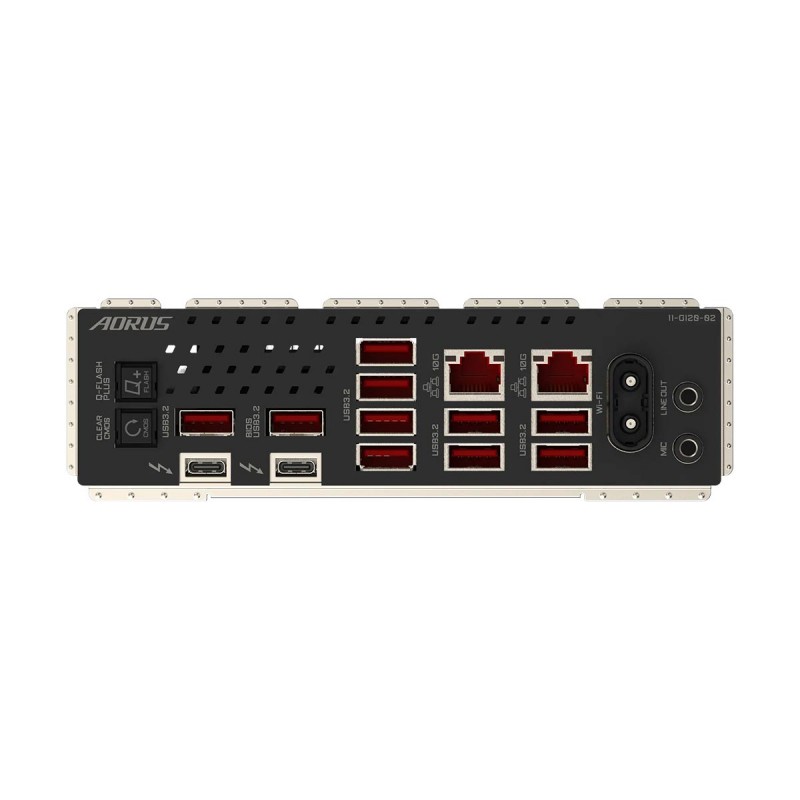

• 2 x Intel Thunderbolt 4 connectors (USB Type-C ports)
• 10 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x RJ-45 ports
• 2 x antenna connectors (2T2R)
• 2 x audio jacks

• iTE I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning

• Fan speed control
• Noise detection

1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for GIGABYTE Control Center (GCC)

• Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

• Support for Q-Flash Plus

Support for Smart Backup

Norton Internet Security (OEM version)
LAN bandwidth management software

• Support for Windows 11 64-bit

E-ATX Form Factor

• 30.5cm x 28.5cm
