Images are for reference purposes only and product appearances/colours may vary.
The PF Series is an 80 PLUS Gold certified power supply with up to 90% efficiency. It features a powerful single +12V rail design and multi-protection safeguards, which can provide reliability and great performance for high-end components. The PF Series offers high-performance without compromise, a great option for budget builds. The PF Series is an 80 PLUS Gold certified power supply that delivers up to 90% conversion efficiency which can generate less heat, effectively lowering energy consumption and noise. The PF Series utilizes a smart temperature-controlled fan design. It automatically detects the heat to adjust the fan speed accordingly. It achieves the optimal balance between silent operation and excellent thermal performance. Powerful single +12V rail design supplies strong and reliable energy to high-performing components. Equipped with 5V and 3.3V DC to DC converter design, the PF Series provides a superior dynamic response, and supports a foundation for greater system stability. The PF Series comes with plenty of safeguards against over-currents, over-and-under voltages, short circuits, over-heating and over-power. These precautions are to ensure quality and safe power usage.
Model | IW-PS-PF750W |
Capacity | 750w |
80 PLUS Rating | Gold |
Modular | Non-Modular |
Lighting | No |
Fan Size | 120mm |
ATX 24-pin Connectors | 1 |
EPS Connectors | 1 x 4+4-pin, 1 x 4-pin |
PCI-Express Connectors | 4 x 6+2-pin |
SATA Connectors | 6 |
PATA Connectors | 4 |
Floppy Connectors | 0 |
Dimensions | 150mm x 86mm x 140mm |
Warranty | 5 Years |

Manufacturer | |
Manufacturer's Website | Link * |
Product Website | Link * |
Warranty Information | |
Warranty Duration | 5 Years |

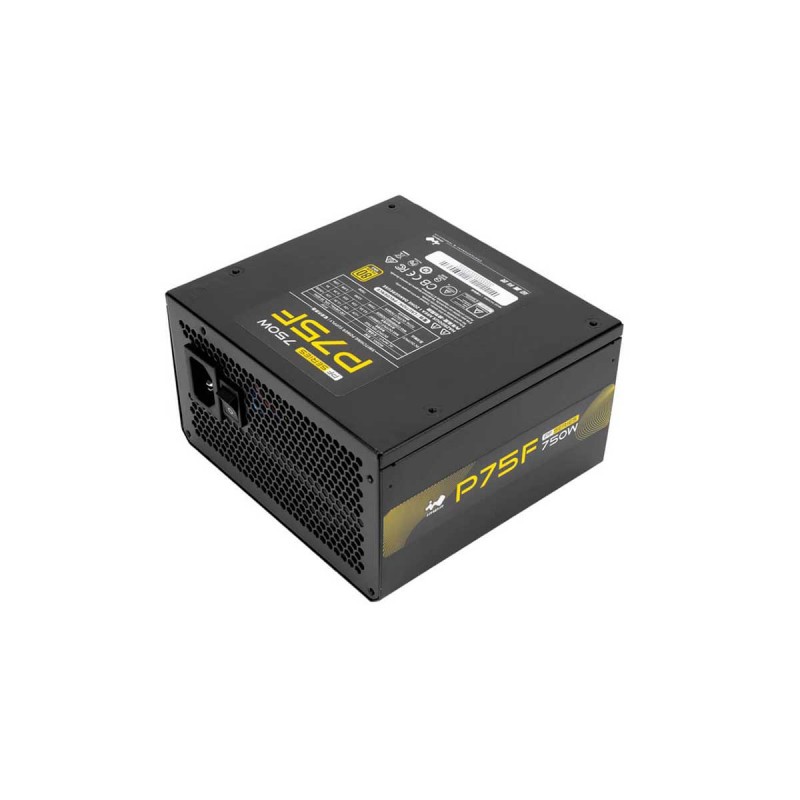

InWin PF Series P75F 80 PLUS Gold ATX PSU, 750w
- Product Code: IW-PS-PF750W
- Availability:
Out Of Stock
Lead Times:
- In Stock with Progenix: Ready for collection/dispatch once payment clears
- In Stock: 0-2 working days until dispatched or ready for collection
- Out Of Stock: Contact us to see if this item will be restocked.
-
R1,736
