ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand. Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

CPU

Intel Socket LGA1700

  • Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
  • Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790 Express Chipset
Memory
  • 4 x DIMM, Max. 192GB, DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem II
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x DisplayPort
    • Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • 1 x HDMI port
    • Supports 4K@60Hz as specified in HDMI 2.1.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
    • A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  • Audio Features:
    • Audio Shielding
    • Premium audio capacitors
    • Dedicated audio PCB layers
LAN

1 x Intel 1Gb Ethernet

  • ASUS LANGuard
Wireless Communication ModuleNone
Expansion Slots

CPU:

  • 1 x PCIe 5.0 x16 slot

Chipset:

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 2 x PCIe 4.0 x1 slots
Storage Interface

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

CPU:

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Chipset:

  • M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

USB

Rear USB (Total 8 ports)

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
    • USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Internal I/O Connectors

Fan and cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin + 12V Power connector
  • 1 x 4-pin + 12V Power connector

Storage related

  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x M.2 slot (Key E)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt (USB4) header
Back Panel Connectors
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMITM  port
  • 1 x Intel 1Gb Ethernet port
  • 3 x Audio jacks
I/O ControllerNot Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS

192 (128+64) Mb Flash ROM

  • UEFI AMI BIOS
Unique Features

ASUS 5X PROTECTION III

  • DIGI+ VRM (Digital power design with DrMOS)
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O

ASUS Q-Design

  • Q-DIMM
  • Q-LED Core
  • Q-Slot

ASUS Thermal Solution

  • VRM heatsink design

ASUS EZ DIY

  • ProCool

Aura Sync

  • Aura RGB header
  • Addressable Gen 2 headers
Bundled Software

Armoury Crate

  • Aura Sync
  • Fan Xpert 4 (with AI Cooling II)
  • Power Saving

AI Suite 3

  • TurboV EVO
  • DIGI+ VRM
  • PC Cleaner

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
Operating System
  • Support for Windows 10/11 64-bit
Form Factor

Micro ATX Form Factor

  • 24.4cm x 24.4cm
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

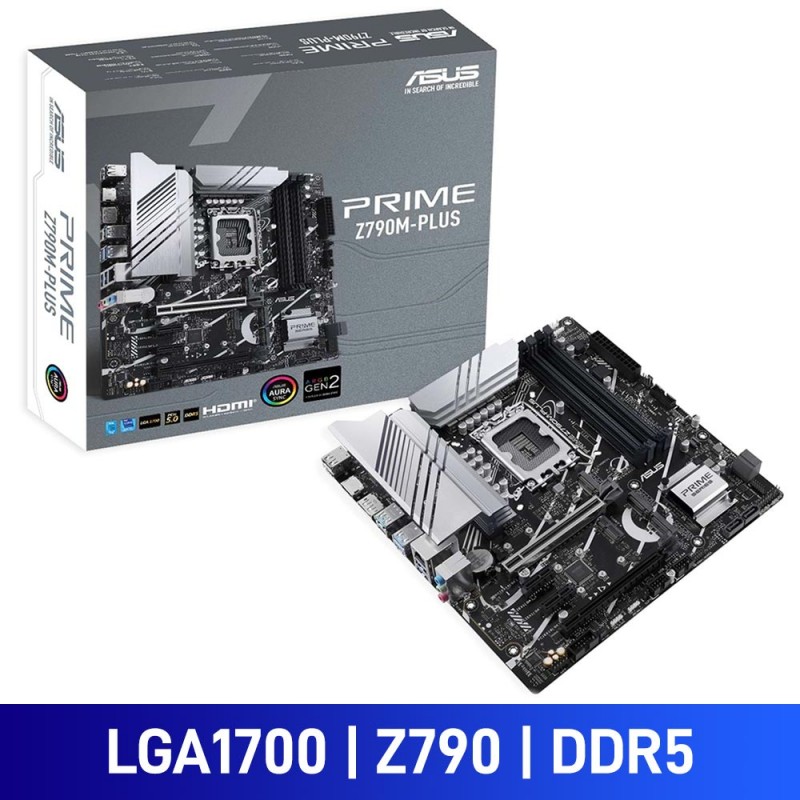

ASUS PRIME Z790M-PLUS, Intel Z790 Chipset, LGA1700, DDR5, Micro ATX Desktop Motherboard

- Socket LGA1700, Intel Z790 Chipset
- Supports 12th, 13th and 14th Gen Intel Processors
- 4 x DDR5 DIMM Slots, Up To 192GB, DDR5-7200 (OC)
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 Electrical)
- 2 x PCIe 4.0 x1 Slots
- 3 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 1Gbps LAN
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 1 x Rear USB Type-C 20Gb/s
- 1 x Rear USB Type-A 10Gb/s, 4 x Rear USB Type-A 5Gb/s
- 2 x Rear USB 2.0/1.1
- 3 x Rear Audio Jacks
- ASUS Q-LED Core for Boot Diagnostics
- 3 x ARGB Gen2 Headers
- Form Factor: Micro ATX
- 3 Year Warranty
