TUF GAMING B760M-PLUS WIFI II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

CPU
  • Intel Socket LGA1700 for 14th & 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
  • Intel B760 Express Chipset
Memory
  • 4 x DIMM, Max. 192GB, DDR5 7800+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600/ 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem II
    • Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x DisplayPort
    • Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • 1 x HDMI port
    • Supports 4K@60Hz as specified in HDMI 2.1.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
    • Audio Shielding
    • Rear optical S/PDIF out port
    • Premium audio capacitors
    • Dedicated audio PCB layers
LAN

1 x Realtek 2.5Gb Ethernet

  • TUF LANGuard
Wireless Communication Module

Wi-Fi 6E

  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band
  • Bluetooth v5.3
Expansion Slots

Intel 14th & 13th & 12th Gen Processors

  • 1 x PCIe 5.0 x16 slot

Intel B760 Chipset

  • 1 x PCIe 4.0 x4 slot
  • 1 x PCIe 3.0 x1 slot
Storage Interface

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel 14th & 13th & 12th Gen Processors

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel B760 Chipset

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  • 4 x SATA 6Gb/s ports
    • Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB

Rear USB (Total 8 ports)

  • 1 x USB 20Gbps port (1 x USB Type-C)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 8 ports)

  • 1 x USB 10Gbps connector (supports USB Type-C)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 3 x USB 2.0 headers support 5 additional USB 2.0 ports
Internal I/O Connectors

Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connector

Storage related

  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 1 x USB 10Gbps connector (supports USB Type-C)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 3 x USB 2.0 headers support 5 additional USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt (USB4) header

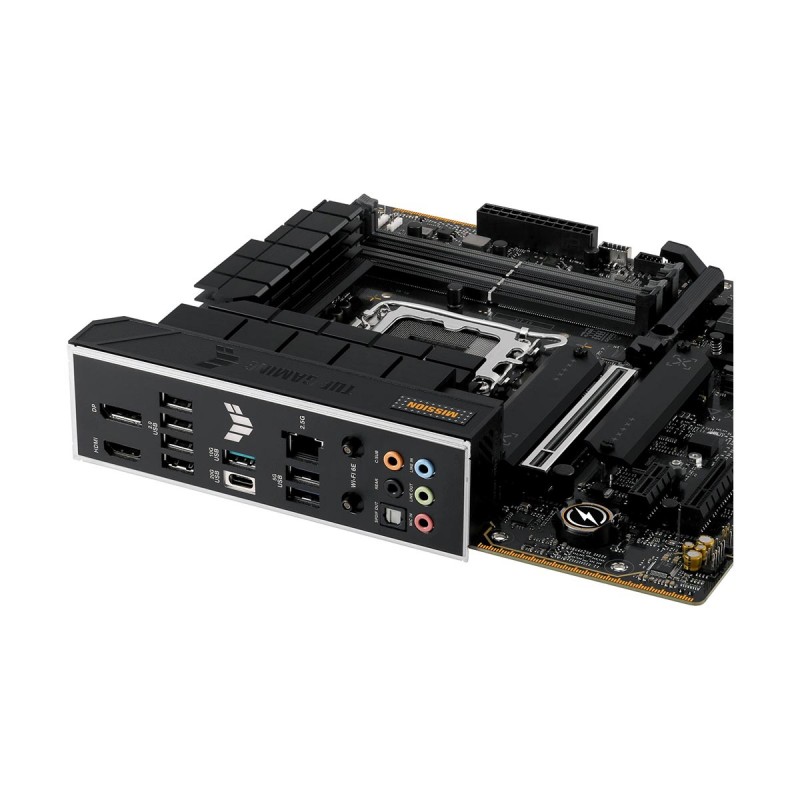

Back Panel Connectors
  • 1 x USB 20Gbps port (1 x USB Type-C)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
Unique Features

ASUS 5X PROTECTION III

  • DIGI+ VRM (Digital power design with DrMOS)
  • ESD Guards
  • TUF LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O

ASUS Q-Design

  • M.2 Q-Latch
  • PCIe Slot Q-Release
  • Q-Antenna
  • Q-DIMM
  • Q-LED

ASUS Thermal Solution

  • M.2 heatsink
  • VRM heatsink design

ASUS EZ DIY

  • CPU Socket lever protector
  • ProCool
  • Pre-mounted I/O shield
  • SafeDIMM

Aura Sync

  • Addressable Gen 2 headers
Bundled Software

Armoury Crate

  • Aura Creator
  • Aura Sync
  • Fan Xpert 2+
  • Power Saving
  • Two-Way AI Noise Cancelation

AI Suite 3

  • DIGI+ VRM
  • PC Cleaner

TUF GAMING CPU-Z

DTS Audio Processing

MyASUS

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

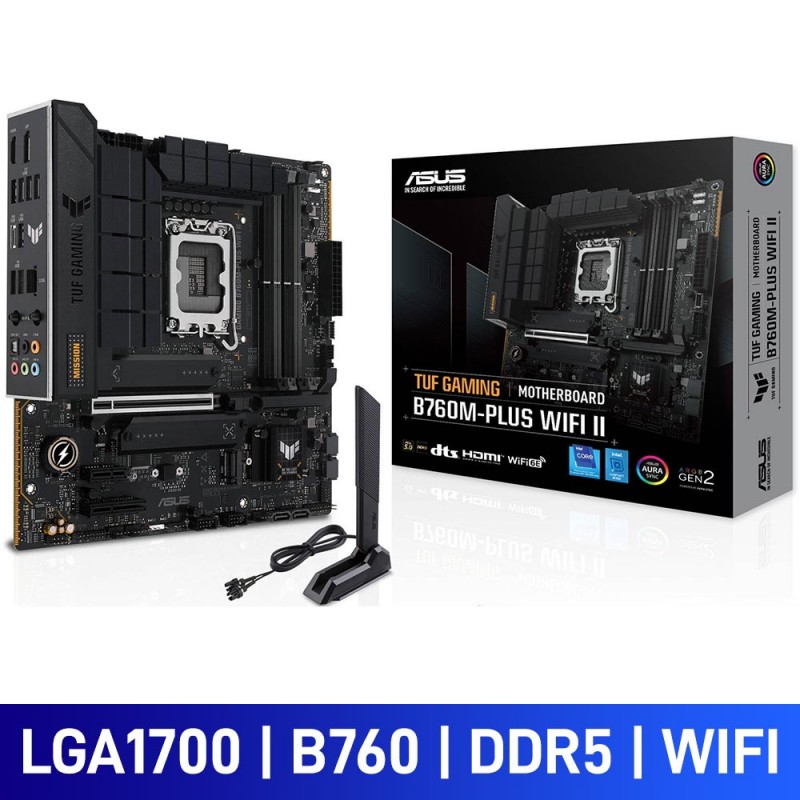

ASUS TUF GAMING B760M-PLUS WIFI II, Intel B760 Chipset, LGA1700, DDR5, Micro ATX Desktop Motherboard

- Socket LGA1700, Intel B760 Chipset
- Supports 12th, 13th and 14th Gen Intel Processors
- 4 x DDR5 DIMM Slots, up to 192GB DDR5-7800 (OC)
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x4 Slot
- 1 x PCIe 3.0 x1 Slot
- 3 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5Gbps LAN & Wi-Fi 6E
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 1 x Rear USB Type-C 20Gb/s
- 1 x Rear USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
- Form Factor: Micro ATX
- 3 Year Warranty

  • Product Code: 90MB1HE0-M0EAY0
  • Availability: In Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R3,408



Price displayed is already subject to a 4% discount for EFT payments
