With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming. GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard. With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy. GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage. GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

CPU
  • LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • L3 cache varies with CPU
Chipset
  • Intel B760 Express Chipset
Memory
  • Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
  • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
Audio

Realtek Audio CODEC

  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
  • Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module

None

Expansion Slots

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
    (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Multi-Graphics Technology
  • N/A
Storage Interface

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
  • 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 4 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB Type-C header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

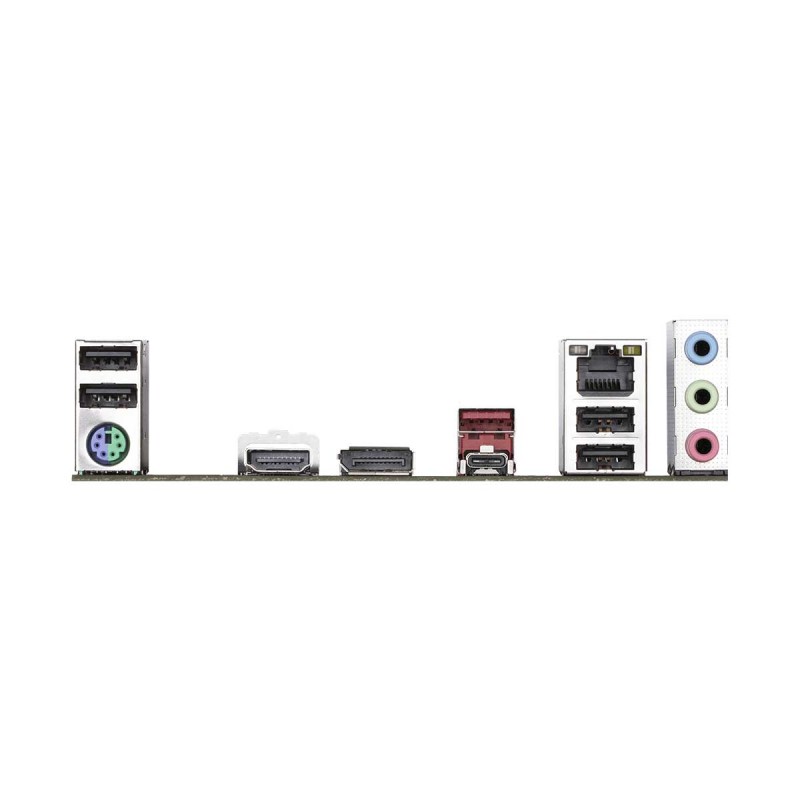

Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 2.0/1.1 ports
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
Bundled Software
  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

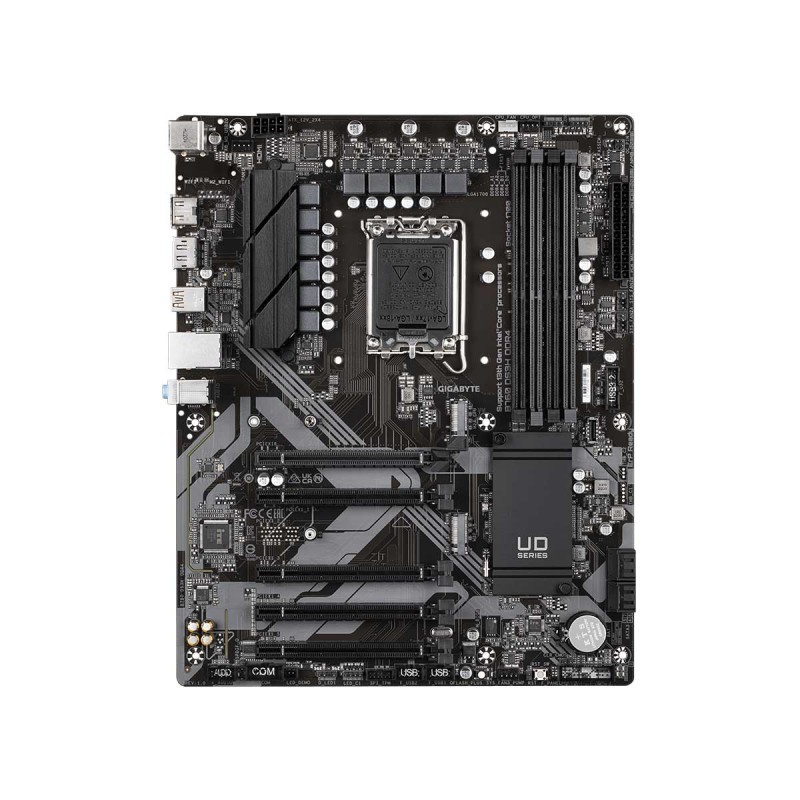

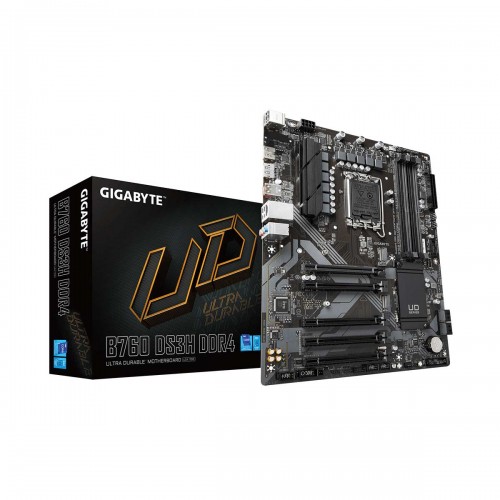

Gigabyte B760 DS3H DDR4, Intel B760 Chipset, LGA1700, DDR4, ATX Desktop Motherboard
