Images are for reference purposes only and product appearances/colours may vary.

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming. Reinforced PCIe 4.0 x16 with lower impedance. M.2 PCIe 4.0 x4 slot with lower impedance. AORUS is offering a tested and proven platform that has memory overclocking capability up to 8000 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard. AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. Upgrade with the latest 2nd generation Gen4 SSD, the performance is up to 7000MB/s which is up to 2x faster than PCIe3.0 SSD. GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

CPU
  • LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • L3 cache varies with CPU
Chipset
  • Intel B760 Express Chipset
Memory
  • Support for DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) /7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
Audio

Realtek Audio CODEC

  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
LAN

Intel 2.5GbE LAN chip

  • 2.5 Gbps/1 Gbps/100 Mbps
Wireless Communication Module

Intel Wi-Fi 6E AX211 / Realtek Wi-Fi 6E RTL8852CE

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz Dual-Band
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Multi-Graphics Technology
  • N/A
Storage Interface

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 2 x SATA 6Gb/s connectors

RAID 0, RAID 1 support for SATA storage devices

USB

Chipset:

  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 3.2 Gen 1 Hub:

  • 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 1 x system fan header
  • 1 x addressable LED strip header
  • 1 x RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 2 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x speaker header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • 1 x chassis intrusion header

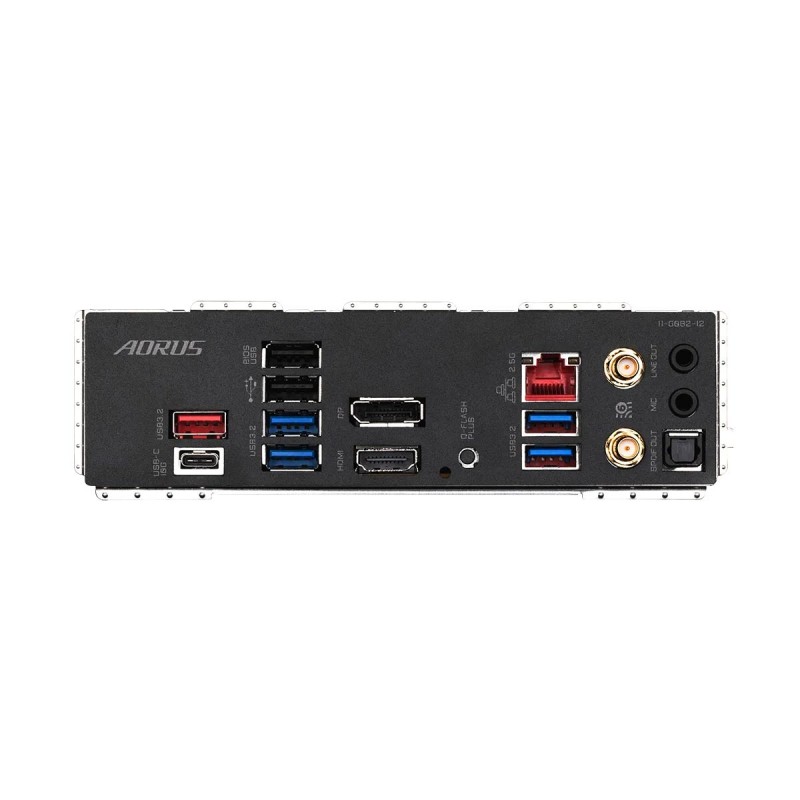

Back Panel Connectors
  • 1 x USB Type-C port, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 2 x SMA antenna connectors (2T2R)
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
Bundled Software
  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • Mini-ITX Form Factor, 17.0cm x 17.0cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
