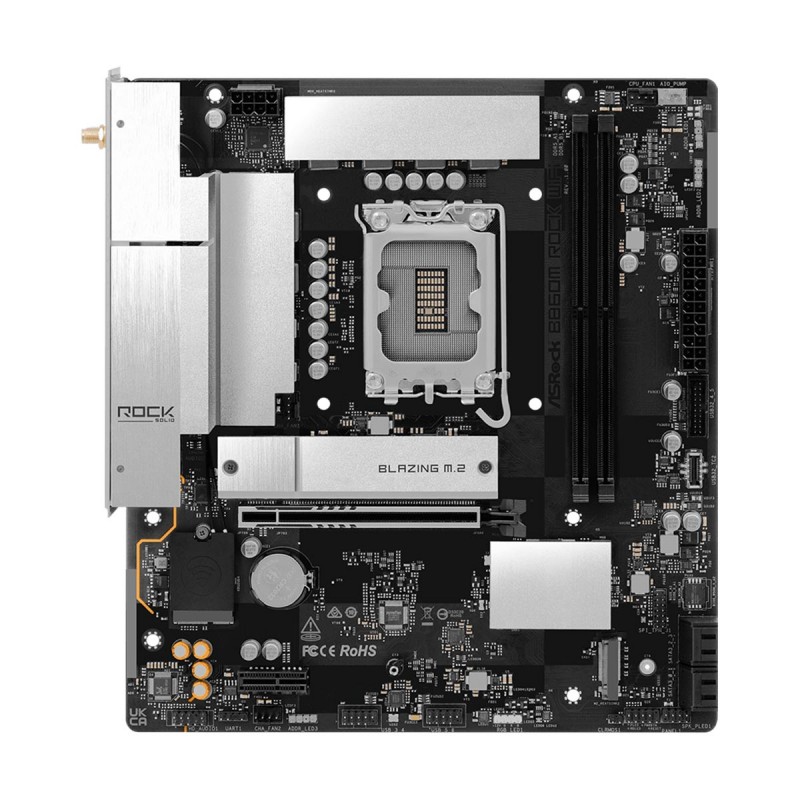

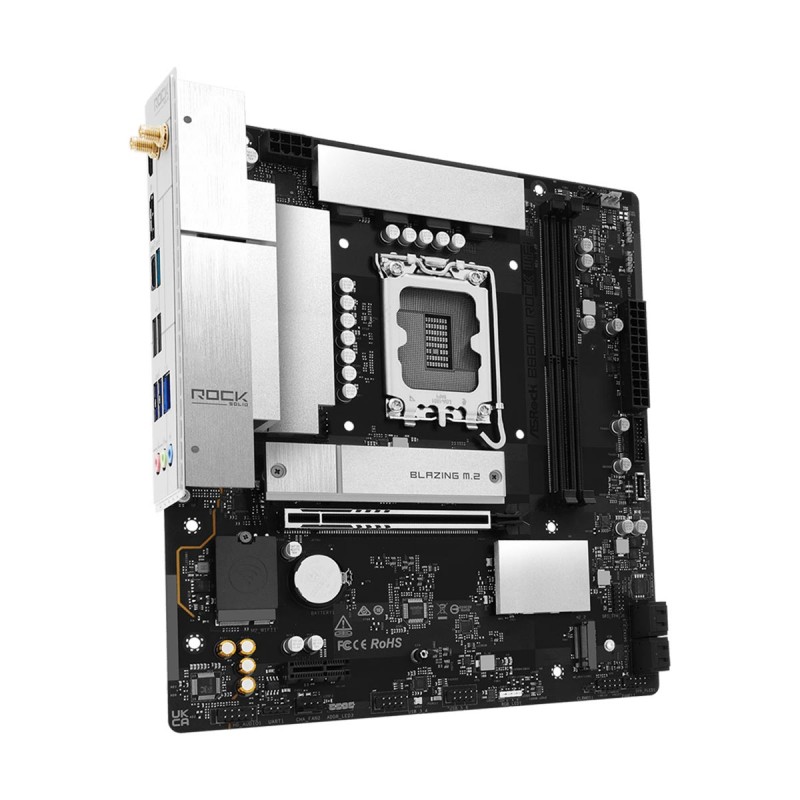

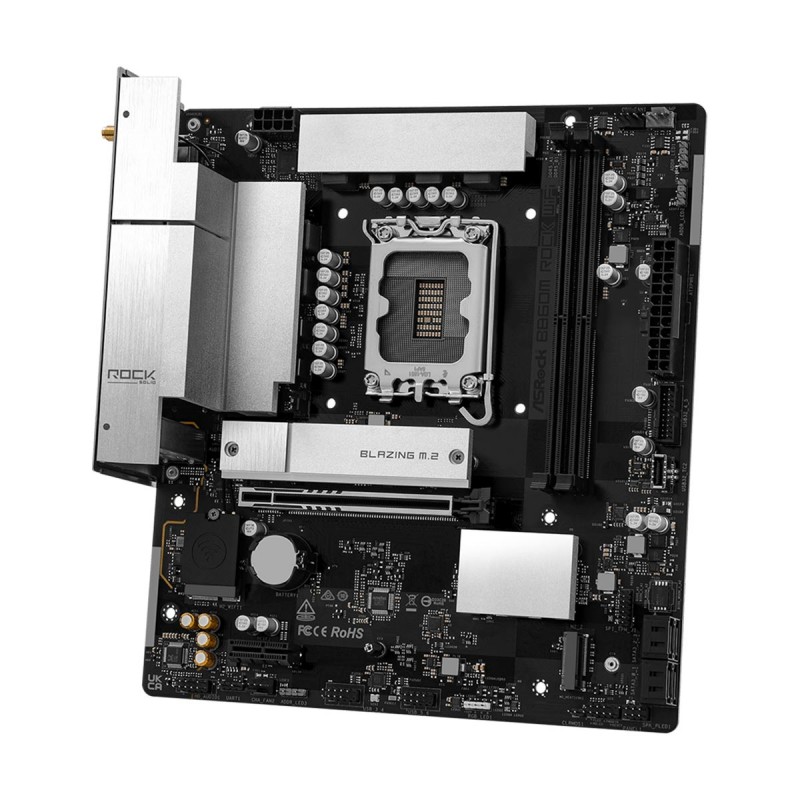

Rock Series brings reliable performance and solid quality in a clean, modern design—ready for work, study, and gaming with practical, well-balanced features. This motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, providing CPU a smooth and efficient power source which expands the lifespan and stability of the motherboard. Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

CPU

Intel Socket LGA1851 for Intel Core Ultra Processors

  • Supports Intel Hybrid Technology
  • Supports Intel Turbo Boost Max 3.0 Technology
  • Supports Intel Thermal Velocity Boost (TVB)
  • Supports Intel Adaptive Boost Technology (ABT)
  • Integrated NPU for dedicated AI acceleration
Chipset

Intel B860 Express Chipset

Memory

2 x DIMM slots, max. 128GB, DDR5

  • Dual Channel DDR5 Memory Technology
  • Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)
    • 1DPC 1R Up to 8333+ MHz (OC), 6400 MHz Natively
    • 1DPC 2R Up to 6400+ MHz (OC), 6400 MHz Natively
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Supports Intel Extreme Memory Profile (XMP) 3.0x
Onboard Graphics

Intel Xe LPG Graphics Architecture

  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible
    • Supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed)
    • Supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

7.1 CH HD Audio

  • Realtek ALC897 Audio Codec
LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
    • Smart Auto Adjust Bandwidth Control
    • Visual User Friendly UI
    • Visual Network Usage Statistics
    • Optimized Default Setting for Game, Browser, and Streaming Modes
    • User Customized Priority Control
Wireless Communication Module

802.11axe Wi-Fi 6E Module

  • Supports IEEE 802.11a/b/g/n/ac/ax/axe
  • Supports Dual-Band 2x2 with extended 6GHz band support
  • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports MU-MIMO

Supports Bluetooth 5.3

Expansion Slots

CPU:

  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode

Chipset:

  • 1 x PCIe 4.0 x1 Slot (PCIE2)
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Interface

CPU:

  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode

Chipset:

  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 4 x SATA3 6.0 Gb/s Connectors

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

CPU:

  • 1 x USB 3.2 Gen2x2 Type-C (Rear)

Chipset:

  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)

All USB ports support ESD Protection

Internal I/O Connectors

  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
    • Supports in total up to 12V/3A, 36W LED Strip
  • 3 x Addressable LED Headers
    • Support in total up to 5V/3A, 15W LED Strip
  • 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
    • CPU_FAN1, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W).
    • CPU_FAN1, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
  • 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    • CPU_FAN1, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W).
    • CPU_FAN1, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    • CPU_FAN1, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W).
    • CPU_FAN1, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header

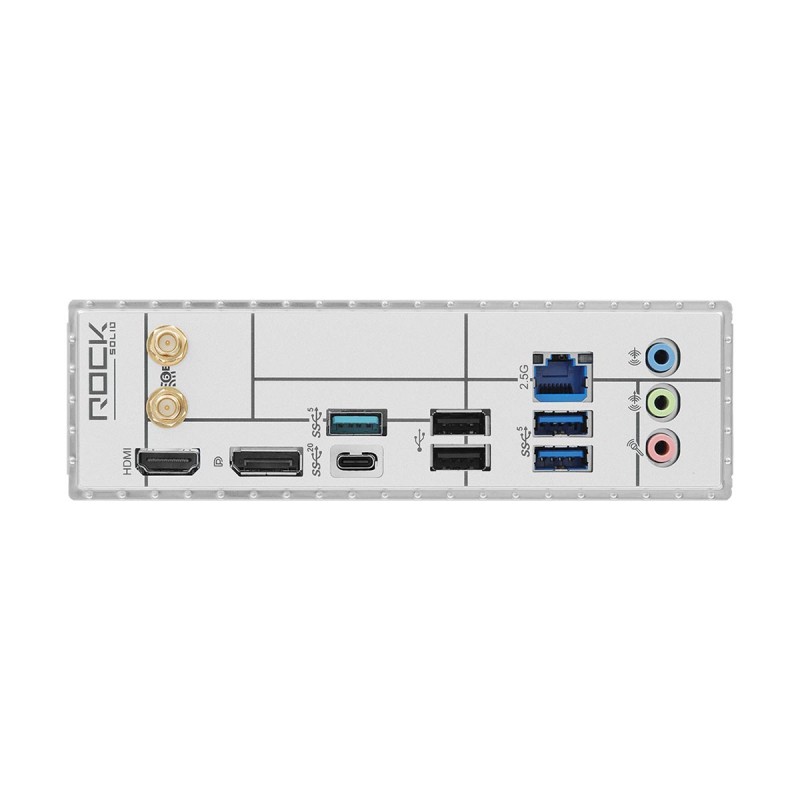

Back Panel Connectors
  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  • 3 x USB 3.2 Gen1 Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
I/O Controller

Not Specified

H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS

1 x 256 Mbit flash

  • AMI UEFI Legal BIOS with GUI support
Unique Features

Superb Productivity

  • PCIe Gen5 (Graphics, M.2)
  • Dual Channel DDR5

Rock-Solid Durability

  • 5+1+1+1+1 Power Phase
  • Pre-Installed I/O Shield
  • ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology

Ultrafast Connectivity

  • 2.5G LAN, 802.11axe Wi-Fi 6E Module

EZ Update

  • ASRock Auto Driver Installer
Bundled Software

Software

  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
    • These utilities can be downloaded from ASRock Live Update & APP Shop

UEFI

  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
Operating System

Support for Windows 11 64-bit

Form Factor

Micro ATX Form Factor

  • 24.4cm x 21.8cm
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

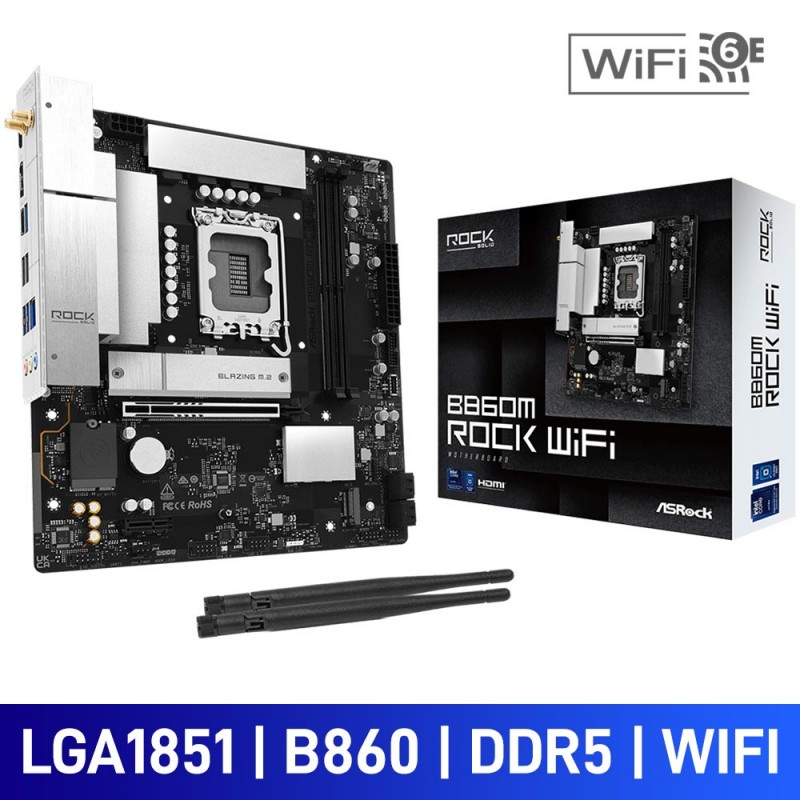

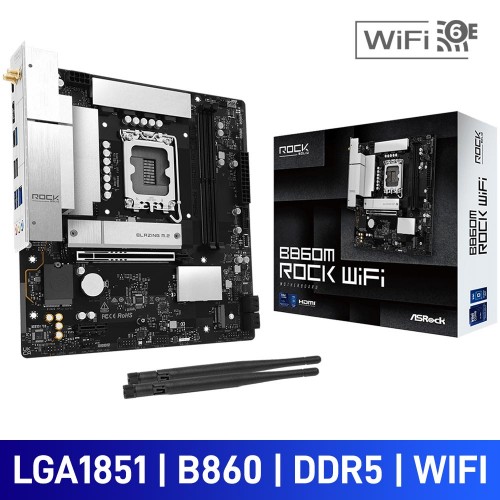

ASRock B860M ROCK WIFI, Intel B860 Chipset, LGA1851, DDR5, Micro ATX Desktop Motherboard

- Socket LGA1851, Intel Z890 Chipset
- Supports Intel Core Ultra (Series 2) Processors
- 2 x DDR5 DIMM Slots, up to 128GB, DDR5-8333+ (OC)
- Supports CUDUMM Memory Modules
- 1 x PCIe 4.0 x16 Slot
- 1 x PCIe 4.0 x1 Slot
- 1 x M.2 PCIe 5.0 NVMe Slot
- 1 x M.2 PCIe 4.0 NVMe Slot
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5Gbps LAN, Wi-Fi 6E & Bluetooth 5.3
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 1 x Rear USB Type-C 20Gb/s
- 3 x Rear USB Type-A 5Gb/s
- 2 x Rear USB 2.0/1.1
- 3 x Rear Audio Jacks
- 3 x ARGB Gen2 Headers
- Form Factor: Micro ATX
- 3 Year Warranty

  • Product Code: B860M ROCK WIFI
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Special Order Item: Ordered specially upon request. Contact us for estimated lead times.
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R2,417



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
