Images are for reference purposes only and product appearances/colours may vary.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds. PRIME Z790M-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance. The PRIME Z790M-PLUS D4 motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel Core Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

CPU
  • LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
  • Intel Z790 Express Chipset
Memory
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC) / 5133(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem II
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x DisplayPort
    * Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • 1 x HDMI port
    * Supports 4K@60Hz as specified in HDMI 2.1.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  • Audio Features
    Audio Shielding
    Premium audio capacitors
    Dedicated audio PCB layers
LAN
  • 1 x Intel 1Gb Ethernet
  • ASUS LANGuard
Wireless Communication Module
  • None
Expansion Slots

CPU:

  • 1 x PCIe 5.0 x16 slot

Chipset:

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 2 x PCIe 4.0 x1 slots
Multi-Graphics Technology
  • N/A
Storage Interface

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel 13th & 12th Gen Processors

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel Z790 Chipset

  • M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

USB

Rear USB (Total 8 ports)

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
    * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Internal I/O Connectors

Fan and cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin + 12V Power connector
  • 1 x 4-pin + 12V Power connector

Storage related

  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x M.2 slot (Key E)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt (USB4) header
Back Panel Connectors
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI  port
  • 1 x Intel 1Gb Ethernet port
  • 3 x Audio jacks
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Unique Features

ASUS 5X PROTECTION III

  • DIGI+ VRM (- Digital power design with DrMOS)
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O

ASUS Q-Design

  • Q-DIMM
  • Q-LED Core
  • Q-Slot

ASUS Thermal Solution

  • VRM heatsink design

ASUS EZ DIY

  • ProCool

Aura Sync

  • Aura RGB header
  • Addressable Gen 2 headers
Bundled Software

Armoury Crate

  • Aura Sync
  • Fan Xpert 4 (with AI Cooling II)
  • Power Saving

AI Suite 3

  • TurboV EVO
  • DIGI+ VRM
  • PC Cleaner

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

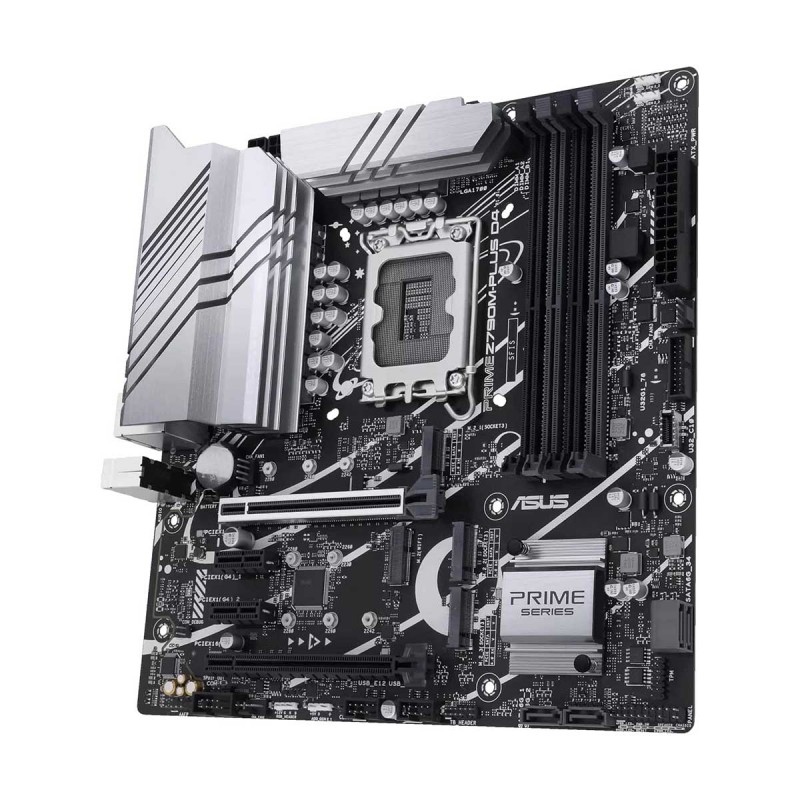

ASUS PRIME Z790M-PLUS D4, Intel Z790 Chipset, LGA1700, DDR4, Micro ATX Desktop Motherboard

  • Product Code: 90MB1D20-M0EAY0
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R5,058



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
