The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed. M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster. Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer. Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s. The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal. Reinforced, heavy soldered connections secure to the motherboard with extra solder points and support the weight of heavy graphics cards. Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B760 TOMAHAWK WIFI is ready to deliver the world class memory performance. Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

CPU
  • LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • L3 cache varies with CPU
Chipset
  • Intel B760 Express Chipset
Memory
  • 4 x DDR5, Maximum Memory Capacity 192GB
  • Memory Support 7000+(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz
  • Max. overclocking frequency:
    1DPC 1R Max speed up to 7000+ MHz
    1DPC 2R Max speed up to 6600+ MHz
    2DPC 1R Max speed up to 6400+ MHz
    2DPC 2R Max speed up to 5600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel Extreme Memory Profile (XMP)
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x HDMI
    * Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
  • 1 x DisplayPort
    * Support DP 1.4, maximum resolution of 8K 60Hz
Audio

Realtek ALC897 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN

Realtek 2.5G LAN

Wireless Communication Module

Intel Wi-Fi 6E

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth 5.3, FIPS, FISMA
Expansion Slots

2 x PCI-E x16 slot

  • PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 PCIe 3.0 supports up to x4 (From Chipset)

1 x PCI-E x1 slot

  • PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Multi-Graphics Technology
  • N/A
Storage Interface

3 x M.2 slot

  • M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
  • M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4 x SATA 6G port

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

Rear:

  • 4 x USB 2.0
  • 4 x USB 3.2 Gen2 Type A
  • 1 x USB 3.2 Gen2x2 Type C

Front:

  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type A
  • 1 x USB 3.2 Gen2 Type C
Internal I/O Connectors
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 5x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x TBT connector (JTBT, supports RTD3)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports

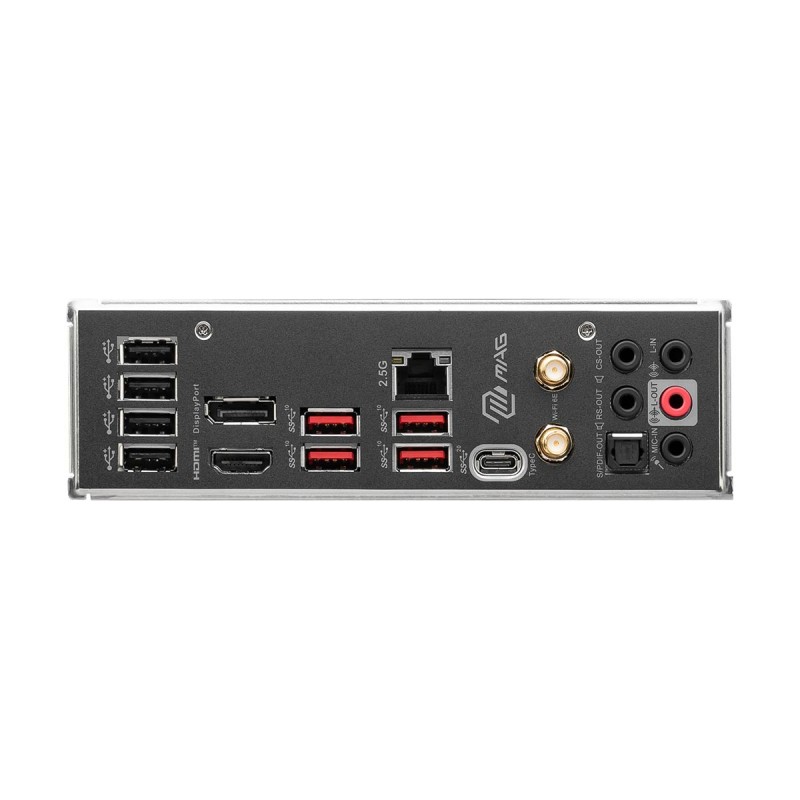

Back Panel Connectors
  • 4 x USB 2.0
  • 1 x DisplayPort 1.4
  • 4 x USB 3.2 Gen 2 10Gbps Type-A
  • 1 x 2.5G LAN Port
  • 2 x Wi-Fi / Bluetooth Antenna
  • 5 x HD Audio Connectors
  • 1 x HDMI 2.1 Port
  • 1 x USB 3.2 Gen 2x2 20Gbps Type-C
  • 1 x Optical S/PDIF OUT
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • Not Specified
Unique Features
  • 4 x EZ Debug LED
Bundled Software
  • Drivers
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
