Images are for reference purposes only and product appearances/colours may vary.

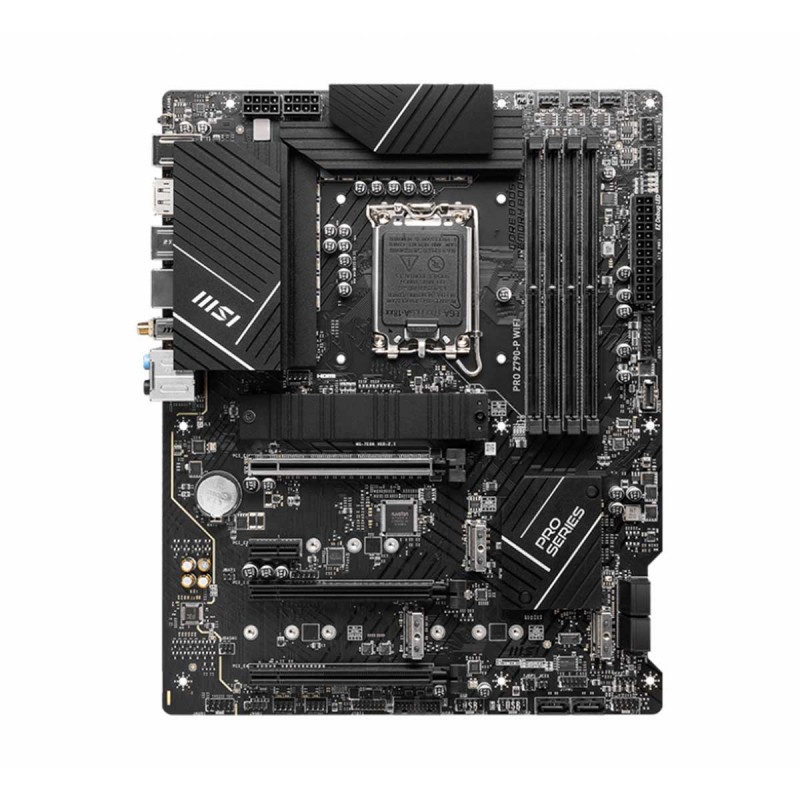

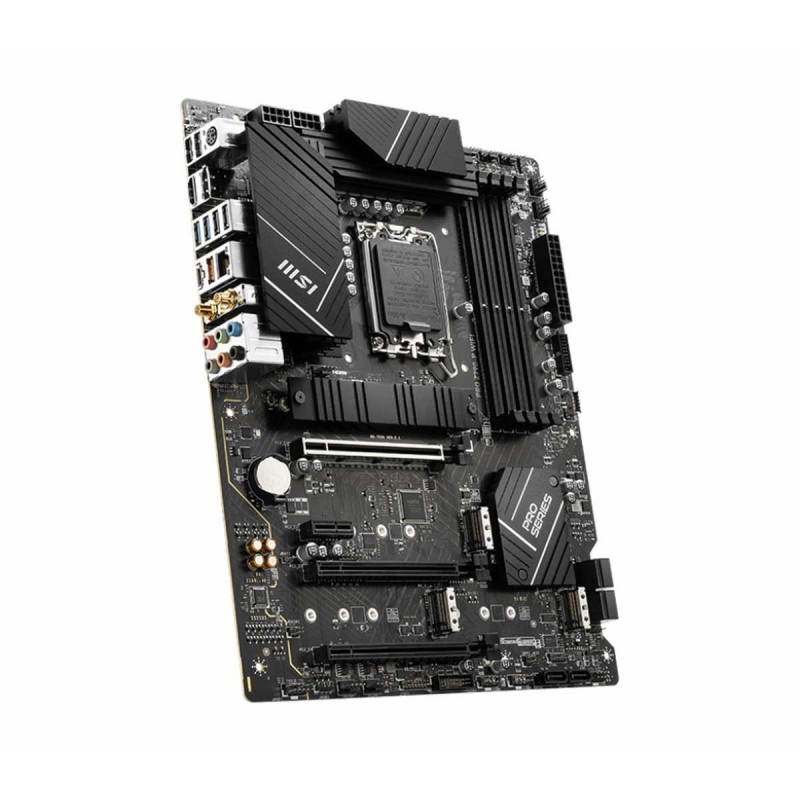

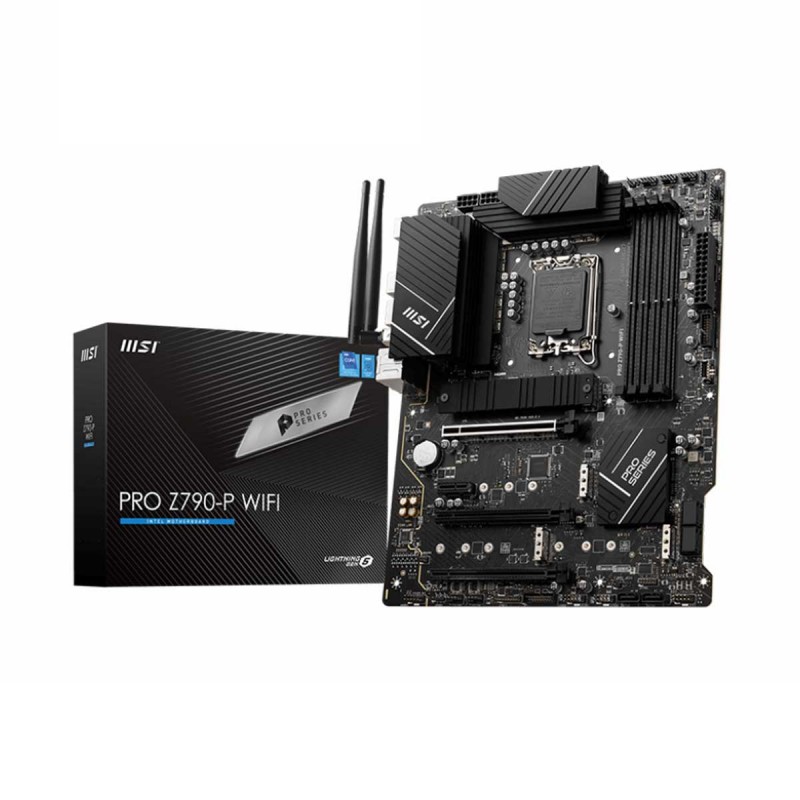

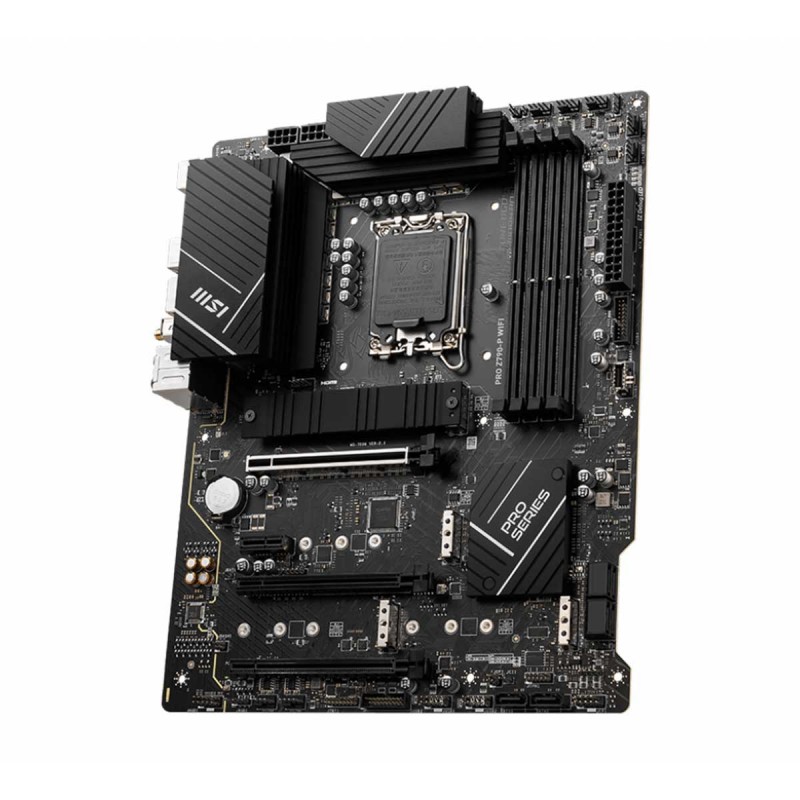

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. PRO Z790-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version. Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads. The VRM heatsink covers the upper MOS and helps dissipate the heat. Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance. The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s. The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

CPU
  • LGA 1700 supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset
  • Intel Z790 Express Chipset
Memory
  • 4 x DDR5, Maximum Memory Capacity 128GB
  • Memory Support 7000+(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz
  • Max. overclocking frequency:
    1DPC 1R Max speed up to 7000+ MHz
    1DPC 2R Max speed up to 6600+ MHz
    2DPC 1R Max speed up to 6400+ MHz
    2DPC 2R Max speed up to 5600+ MHz
  • Supports Intel XMP3.0 OC
  • Supports Dual-Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x HDMI
    * Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
  • 1 x DisplayPort
    * Support DP 1.4, maximum resolution of 4K 60Hz

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN
  • Intel 2.5Gbps LAN
Wireless Communication Module

Intel Wi-Fi 6E

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth 5.2, FIPS, FISMA
Expansion Slots

CPU:

  • 1 x PCI-E x16 slot
    * PCI_E1 PCIe 5.0 supports up to x16

Chipset:

  • 2 x PCI-E x16 slots
    * PCI_E2 PCIe 3.0 supports up to x1
    * PCI_E3 PCIe 4.0 supports up to x4
  • 1x PCI-E x1 slot
    * PCI_E4 PCIe 3.0 supports up to x1
Multi-Graphics Technology
  • N/A
Storage Interface

CPU:

  • 1 x M.2 Slot
    * M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

Chipset:

  • 3 x M.2 slot
    * M.2_2 supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    * M.2_3 supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    * M.2_4 supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 6x SATA 6G port

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

Rear:

  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type A
  • 1 x USB 3.2 Gen2 Type A
  • 1 x USB 3.2 Gen2x2 Type C

Front:

  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type A
  • 1 x USB 3.2 Gen2 Type C
Internal I/O Connectors
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x TBT connector (JTBT, supports RTD3)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0
  • 4x USB 3.2 Gen1 Type A
  • 1x USB 3.2 Gen2 Type C

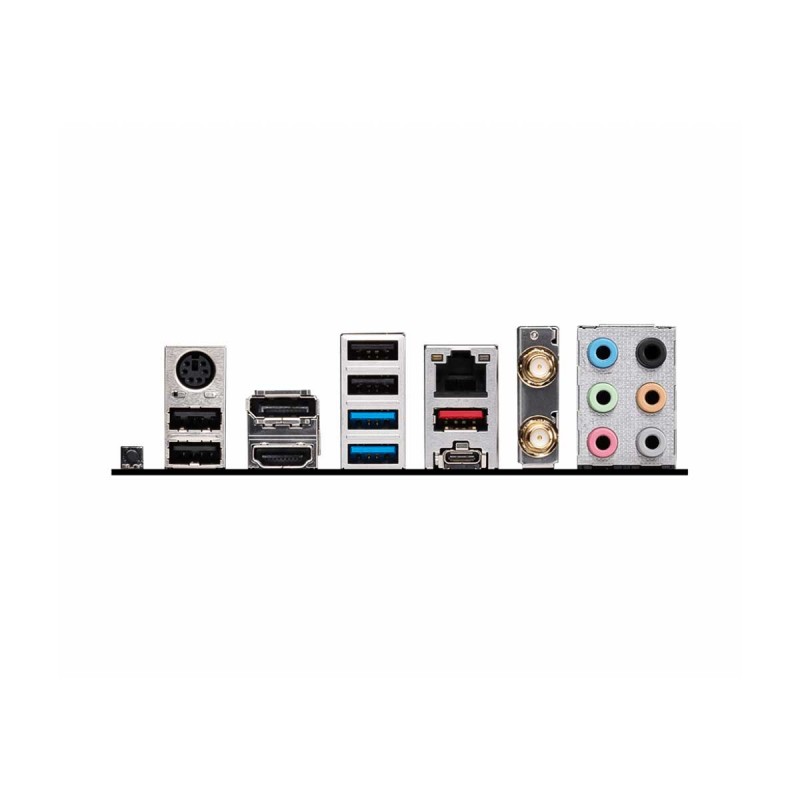

Back Panel Connectors
  • 1 x Keyboard / Mouse
  • 1 x DisplayPort
  • 4 x USB 2.0
  • 1 x 2.5G LAN
  • 1 x Wi-Fi / Bluetooth
  • 6 x Audio Connectors
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 2 x USB 3.2 Gen 1 5Gbps (Type-A)
  • 1 x USB 3.2 Gen 2x2 20Gbps (Type-C)
  • 1 x USB 3.2 Gen 2 10Gbps (Type-A)
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • Not Specified
Unique Features
  • 4 x EZ Debug LED
Bundled Software
  • Drivers
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
