• Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors

• Supports Intel 14 nm CPU
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

• Intel Z490 Express Chipset


• 4 x DIMM, Max. 128GB, DDR4 4800(O.C.) / 4600(O.C) / 4500(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory

• Dual Channel Memory Architecture
• Supportsd Intel Extreme Memory Profile (XMP)
• OptiMem II

Integrated Graphics Processor:

• 1 x DisplayPort 1.4*

• 1 x HDMI 1.4b
  *Graphics specifications may vary between CPU types.
  **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz

Thunderbolt:

• 2 x Intel Thunderbolt 3 ports(TypeC) support DisplayPort and Thunderbolt video outputs
• Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz
  * VGA resolution support depends on VGA cards' resolution.

• Realtek ALC S1220A 8-Channel High Definition Audio CODEC
  Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
  High quality 120 dB SNR stereo playback output and SNR recording input
• Audio Feature:
  Optical S/PDIF out port(s) at back panel
  Audio Shielding
  Dedicated audio PCB layers
  Premium Japanese audio capacitors
  Audio Cover
  Unique de-pop circuit
  * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

• Intel I225-V 2.5Gb Ethernet

• None

• 2 x PCIe 3.0 x16 (x16 or dual x8)
  * Support PCIe bifurcation for RAID on CPU function.

• 1 x PCIe 3.0 x16 (x4 mode)
  * PCIe 3.0 x4 will be switched from Thunderbolt 3 to PCIEX16_3 if the slot is populated; by then Thunderbolt 3 will have no output.
• 2 x PCIe 3.0 x1

• Supports AMD 3-Way CrossFireX Technology


Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel Z490 Chipset :

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  * When M.2_1 is operating in SATA device, SATA6G_2 will be disabled.
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  * M.2_2 runs at PCIe 3.0 x2 by default and shares bandwidth with SATA6G_56. When M.2_2 runs at PCIe 3.0 x4 or is populated by H10, SATA6G_56 will be disabled.

• 6 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 5, 10
• Intel Rapid Storage Technology supports
• Intel Optane Memory Ready

Intel Thunderbolt 3 Controller :

• 2 x USB 3.2 Gen 2 port(s) (USB Type-C)

Rear USB Port ( Total 6 )

• 4 x USB 3.2 Gen 2 port(s)(4 x Type-A)
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

Front USB Port ( Total 7 )

• 1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C)
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 4 x USB 2.0 port(s)

• 1 x CPU Fan connector(s)

• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
• 1 x Thermal sensor connector(s)
• 1 x CPU OV
• 1 x Clear CMOS jumper(s)
• 1 x COM port header

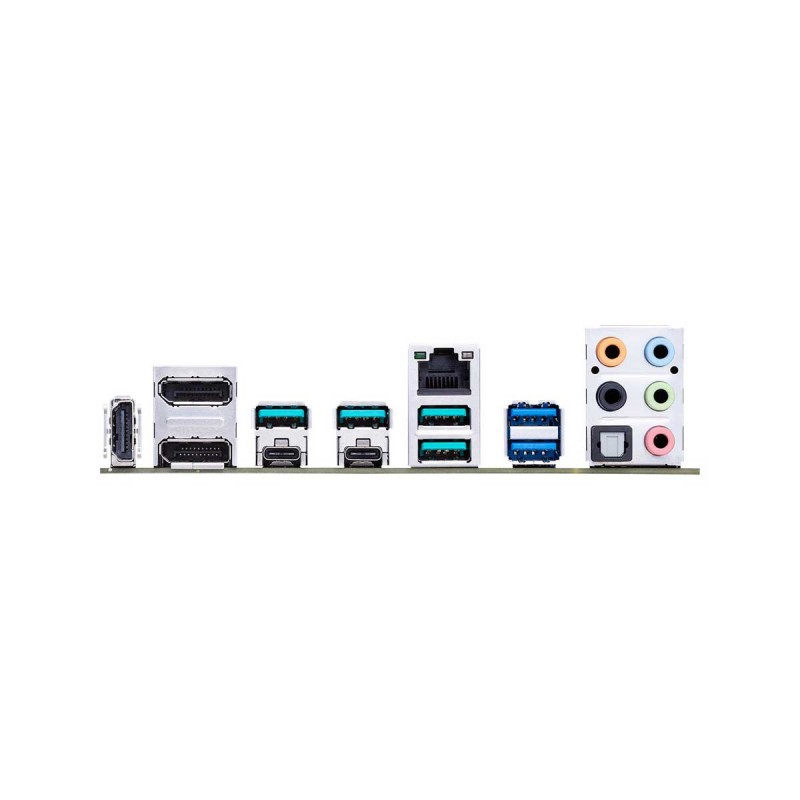

• 2 x Thunderbolt 3 ports TypeC

• 2 x DisplayPort IN ports for Thunderbolt 3
• 1 x HDMI
• 1 x LAN (2.5G) port(s)
• 4 x USB 3.2 Gen 2 Type-A
• 2 x USB 3.2 Gen 1 Type-A
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• 128 Mb Flash ROM, UEFI AMI BIOS


• ASUS 5X PROTECTION III
  ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
  ASUS Enhanced DRAM Overcurrent Protection
  ASUS ESD Guards
  ASUS LANGuard
  ASUS Overvoltage Protection
  ASUS SafeSlot Core+
  ASUS Stainless-Steel Back I/O
• ASUS Q-Design
  ASUS Q-DIMM
  ASUS Q-LED
  ASUS Q-Shield
  ASUS Q-Slot
• ASUS Thermal Solution
  Aluminum heatsink design
• ASUS EZ DIY
  Procool
  SafeSlot
• AURA Sync
  Standard RGB headers
  Addressable Gen 2 RGB header(s)
  Addressable Gen 2 RGB header

• Driver and software disc

• Windows 10 64-bit

• ATX Form Factor, 30.5cm x 23.4cm
