• Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron Processors


• Intel B560 Express Chipset


• 4 x DDR4 memory slots, support up to 128GB
  Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
  Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
• Max overclocking frequency:
  1DPC 1R Max speed up to 5066 MHz
  1DPC 2R Max speed up to 4600+ MHz
  2DPC 1R Max speed up to 4266+ MHz
  2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
• 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz
  * Available only on processors featuring integrated graphics.
  * Graphics specifications may vary depending on the CPU installed.

• Realtek ALC897 Codec
  7.1-Channel High Definition Audio

• 1x Realtek 8125B 2.5Gbps LAN controller


• Intel Wi-Fi 6 AX201
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  WiFi 6 pre certified
  Supports Bluetooth 5.1, FIPS, FISMA

• 1x PCIe x16 slot (From CPU)
  Support up to PCIe 4.0 for 11th Gen Intel CPU
  Support up to PCIe 3.0 for 10th Gen Intel CPU
• 2x PCIe 3.0 x1 slots (From B560 chipset)

• N/A


Chipset:

• 6x SATA 6Gb/s ports (From B560 chipset)

• 2x M.2 slot (Key M)
• M2_1 slot
  Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
  Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)
  Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 slot (from B560 chipset)
  Supports up to PCIe 3.0 x4
  Supports 2242/ 2260/ 2280 storage devices
• Intel Optane Memory Ready
• Supports Intel Smart Response Technology for Intel Core processors
• SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
• Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Intel B560 Chipset

• 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 2x USB 2.0 Type-A ports on the back panel

USB Hubs GL850G

• 4x USB 2.0 ports are available through the internal USB 2.0 connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x M.2 slots (M-Key)
• 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump fan connector
• 2 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x TPM module connector
• 1 x Serial port connector
• 1 x Tuning Controller Connector

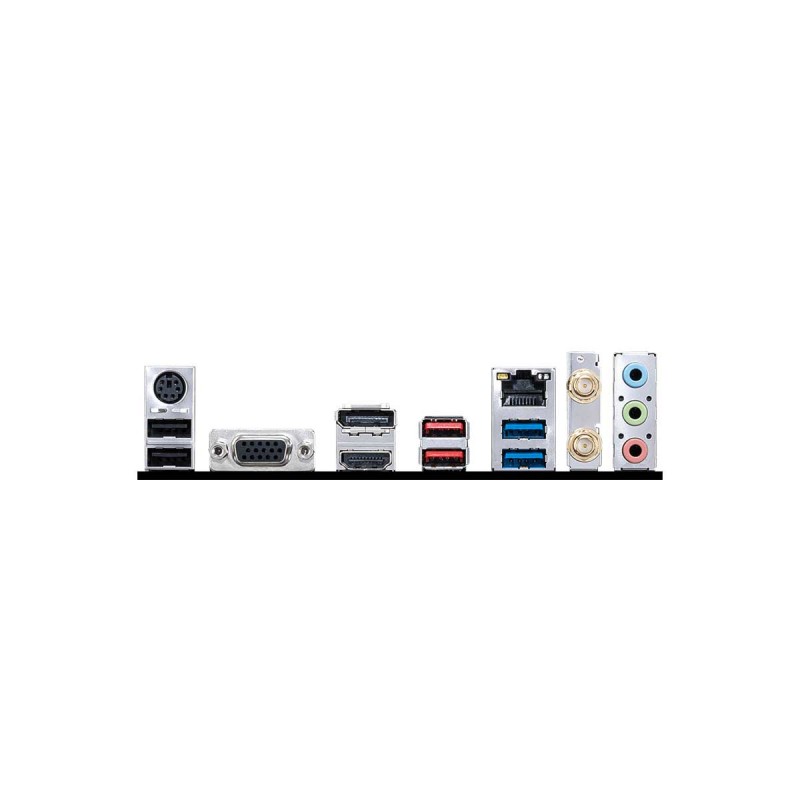

• 1 x Keyboard / Mouse

• 1 x VGA
• 1 x DisplayPort
• 2 x USB 3.2 Gen 2 10Gbps Type-A
• 1 x LAN port
• 2 x WiFi / Bluetooth
• 3 x Audio connector
• 2 x USB 2.0
• 1 x HDMI
• 2 x USB 3.2 Gen 1 5Gbps Type-A

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• 1x 256 Mb flash

• UEFI AMI BIOS
• ACPI 6.2, SMBIOS 3.0
• Multi-language

• N/A

• Driver Disc

• Support for Windows 10 64-bit

• Micro-ATX Form Factor, 24.4cm x 24.4cm
