• Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors


• Intel Z590 Express Chipset


• 4x DDR4 memory slots, support up to 128GB

• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
• Max overclocking frequency:
  1DPC 1R Max speed up to 5333 MHz
  1DPC 2R Max speed up to 4700+ MHz
  2DPC 1R Max speed up to 4400+ MHz
  2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
• Available only on processors featuring integrated graphics.
• Graphics specifications may vary depending on the CPU installed.

• Realtek ALC897 Codec
  7.1-Channel High Definition Audio

• 1x Intel I225-V 2.5Gbps LAN controller

• Intel Wi-Fi 6E AX210
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth 5.22, FIPS, FISMA
  Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
  Bluetooth 5.2 will be ready in WIN10 21H1.

• 2x PCIe x16 slots
  Support x16/ x4
• PCI_E1 (from CPU)
  Supports up to PCIe 4.0 for 11th Gen Intel CPU
  Supports up to PCIe 3.0 for 10th Gen Intel CPU
• PCI_E3 (from Z590 chipset)
  Supports up to PCIe 3.0
• 2x PCIe 3.0 x1 slots (from Z590 chipset)

• Supports 2-Way AMD CrossFire Technology


Chipset

• 6x SATA 6Gb/s ports (from Z590 chipset)

• 3x M.2 slots (Key M)
• M2_1 slot (from CPU)
  Available only on 11th Gen Intel CPU
  Supports up to PCIe 4.0x4
  Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2, M2_3 slots (from Z590 chipset)
  Support up to PCIe 3.0x4
  Support up to SATA 6Gb/s
  Support 2242/ 2260/ 2280 storage devices
  Intel Optane Memory Ready
• Support Intel Smart Response Technology for Intel Core processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot.

Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Intel Z590 Chipset

• 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
• 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
• 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)

USB 2.0 Hubs GL850G

• 4x USB 2.0 Type-A ports on the back panel
• 4x USB 2.0 ports are available through the internal USB 2.0 connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x 6-pin ATX PCIe power connector
• 6 x SATA 6Gb/s connectors
• 3 x M.2 slots (M-Key)
• 1 x USB 3.2 Gen 2 10Gbps Type-C port
• 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump fan connector
• 6 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x TPM module connector
• 1 x Serial port connector
• 1 x Tuning controller connector
• 1 x TBT connector (Supports RTD3)

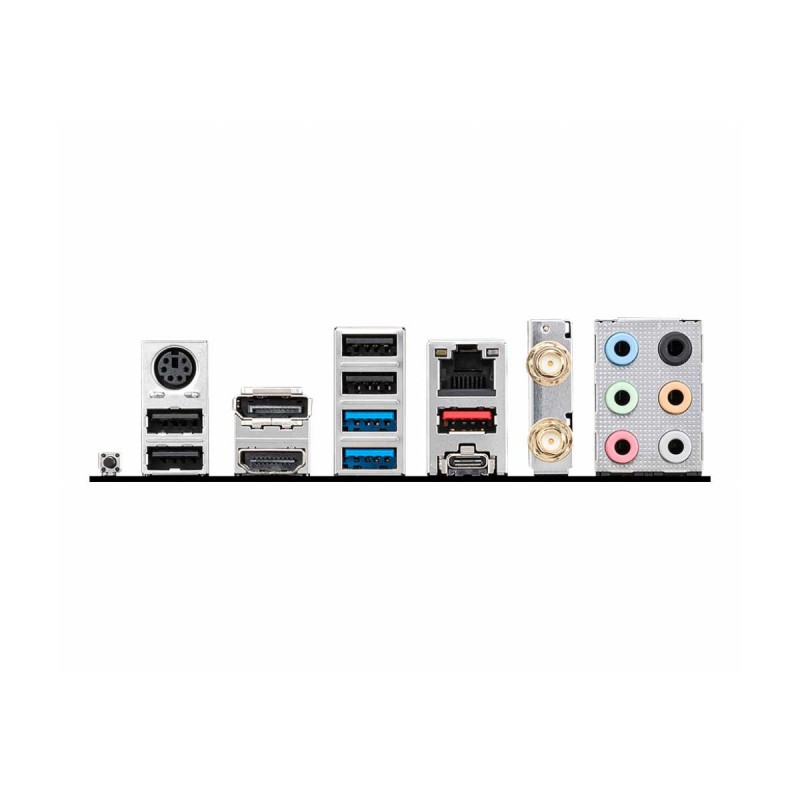

• 1 x Keyboard / Mouse

• 1 x DisplayPort
• 4 x USB 2.0
• 1 x LAN port
• 2 x WIFI / Bluetooth
• 6 x Audio connector
• 1 x Flash BIOS Button
• 1 x HDMI
• 2 x USB 3.2 Gen 1 5Gbps Type-A
• 1 x USB 3.2 Gen 2x2 20Gbps Type-C
• 1 x USB 3.2 Gen 2 10Gbps Type-A

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• N/A

• 1 x 4-pin RGB LED connector

• 2 x 3-pin RAINBOW LED connectors
• 4 x EZ Debug LED

• Driver Disc

• Support for Windows 10 64-bit

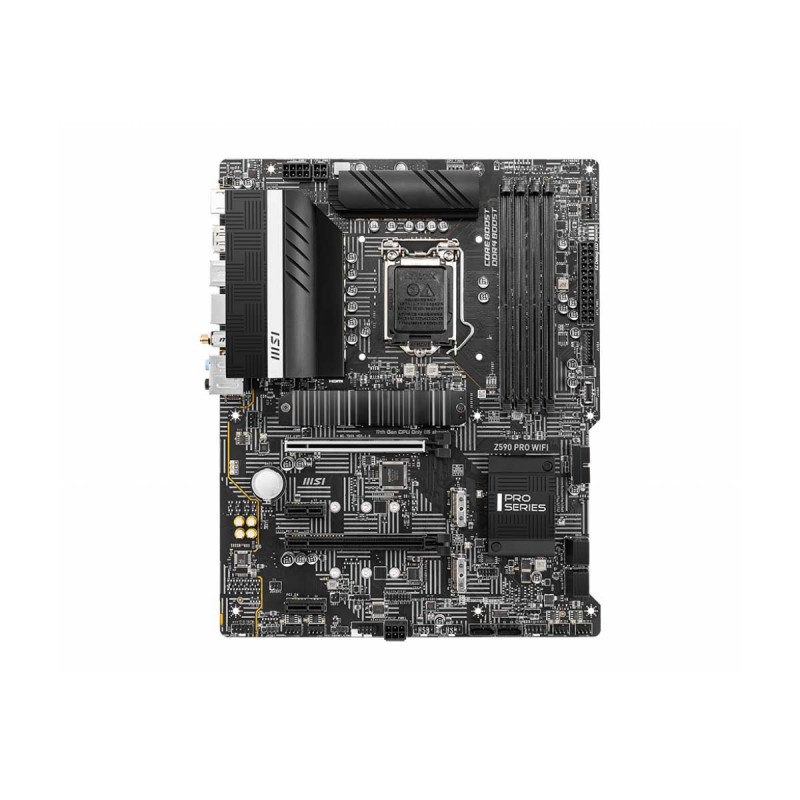

• ATX Form Factor, 30.5cm x 24.4cm
