Images are for reference purposes only and product appearances/colours may vary.

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers! Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance. Ready for higher capacity and even faster Type 2280 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

CPU

AMD Socket AM4

  • Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  • Digi Power design
  • 8 Power Phase design
ChipsetAMD B550
Memory

4 x DDR4 DIMM sockets supporting up to 128 GB of system memory

  • Dual Channel DDR4 Memory Technology
  • AMD Ryzen series CPUs (Vermeer):
    • DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series CPUs (Matisse):
    • DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series APUs (Cezanne):
    • DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series APUs (Renoir):
    • DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series APUs (Picasso)
    • DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
  • Supports Extreme Memory Profile (XMP) memory modules
  • 15μ Gold Contact in DIMM Slots
Onboard Graphics

Integrated Graphics Processor with AMD Radeon Graphics support:

  • 1 x HDMI
    • Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    • Supports HDR (High Dynamic Range) with HDMI 2.1
    • Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
      • Picasso supports HDCP 2.2 with HDMI 2.0 Port
    • Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
    • Supports Microsoft PlayReady
  • 1 x DisplayPort
    • Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz
    • Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
    • Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
    • Supports Microsoft PlayReady

DirectX 12, Pixel Shader 5.0

Shared memory default 2GB. Max Shared memory supports up to 16GB

  • The Max shared memory 16GB requires 32GB system memory installed
Audio

7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

  • Supports Surge Protection
LAN

1 Gigabit LAN 10/100/1000 Mb/s

  • Realtek RTL8111H
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
Wireless Communication Module

None

Expansion Slots

AMD Ryzen series CPUs (Vermeer and Matisse)

  • 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)
    • Supports NVMe SSD as boot disks

AMD Ryzen series APUs (Cezanne and Renoir)

  • 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)
    • Supports NVMe SSD as boot disks

AMD Ryzen series APUs (Picasso)

  • 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)
    • Supports NVMe SSD as boot disks

Chipset

  • 1 x PCI Express 3.0 x1 Slot

Supports AMD Quad CrossFireX and CrossFireX

Storage Interface

4 x SATA3 6.0 Gb/s Connectors

  • Supports RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

1 x Hyper M.2 Socket (M2_1)

  • Supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)
  • Supports NVMe SSD as boot disks

1 x M.2 Socket (M2_2)

  • Supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
  • Supports NVMe SSD as boot disks

NVMe SSD is not supported with AMD Athlon 3000G Processors

USB

Rear:

  • 4 x USB 3.2 Gen1 Ports
  • 2 x USB 2.0 Ports

Front:

  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

All USB ports support ESD Protection

Internal I/O Connectors
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 2 x RGB LED Headers
    • Support in total up to 12V/3A, 36W LED Strip
  • 2 x Addressable LED Headers
    • Support in total up to 5V/3A, 15W LED Strip
  • 1 x CPU Fan Connector (4-pin)
    • The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
    • The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    • CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

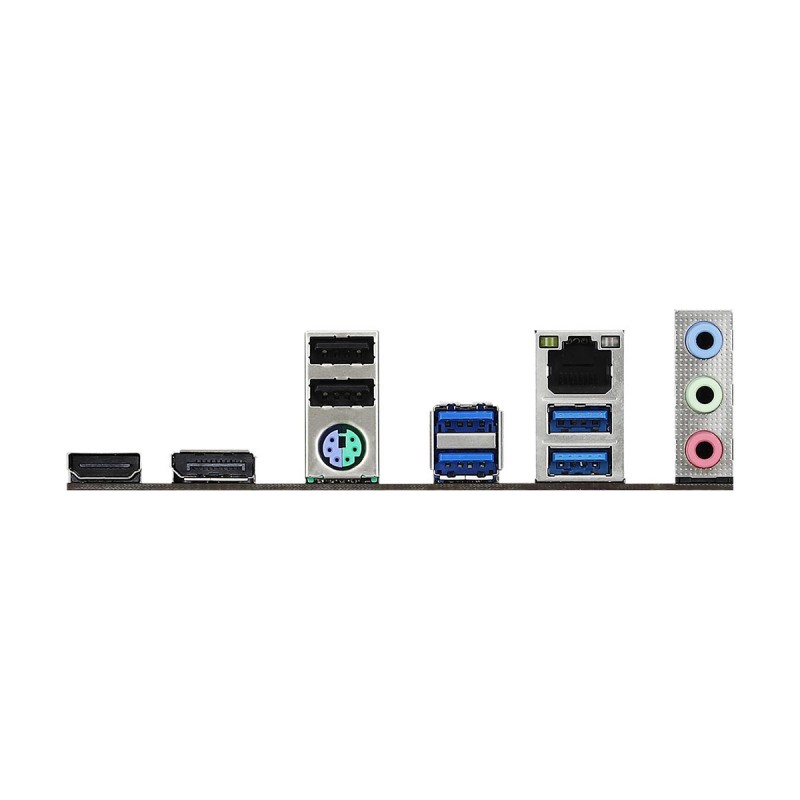

Back Panel Connectors
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  • 2 x USB 2.0 Ports (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • 3 x HD Audio Jacks: Line in / Front Speaker / Microphone
I/O Controller

Not Specified

H/W Monitoring
  • Temperature Sensing: CPU, Chassis/Water Pump Fans
  • Fan Tachometer: CPU, Chassis/Water Pump Fans
  • Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
  • Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
  • Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, +1.8V
BIOS

1 x 256 Mbit flash

  • AMI UEFI Legal BIOS with GUI support
  • Supports "Plug and Play"
  • ACPI 5.1 compliance wake up events
  • Supports jumperfree
  • SMBIOS 2.3 support
  • CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, Voltage Multi-adjustment
Unique Features

ASRock Super Alloy

  • Premium 50A Power Choke
  • Sapphire Black PCB
  • High Density Glass Fabric PCB
  • 2oz Copper PCB

ASRock Hyper M.2 (PCIe Gen4x4)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

Bundled Software

Software

  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Polychrome SYNC
    • These utilities can be downloaded from ASRock Live Update & APP Shop

UEFI

  • ASRock Full HD UEFI
  • ASRock Instant Flash
Operating System

Support for Windows 10 / 11 64-bit

Form Factor

Micro ATX Form Factor

  • 24.4cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

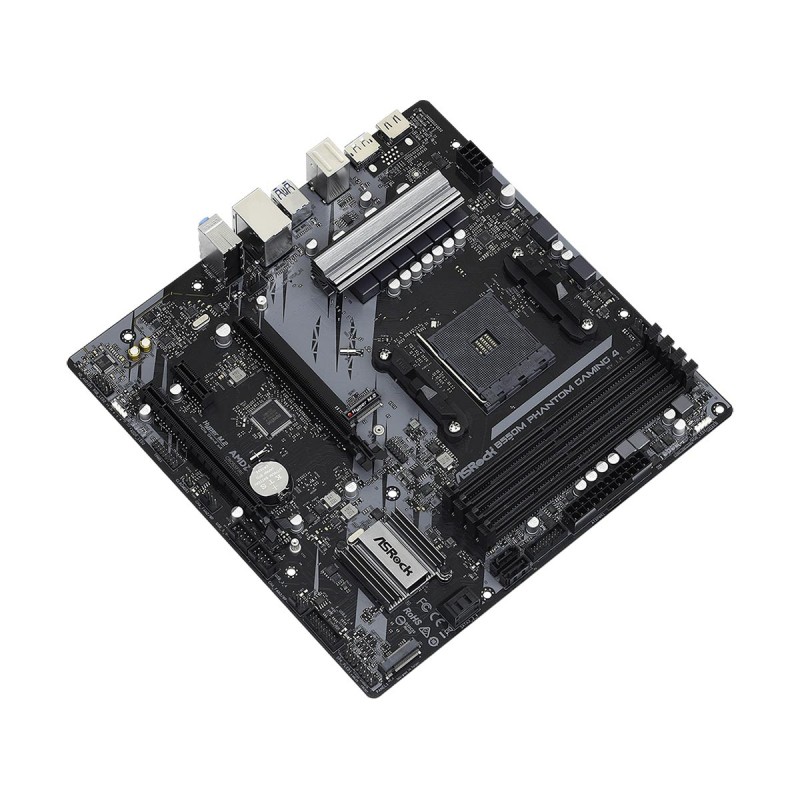

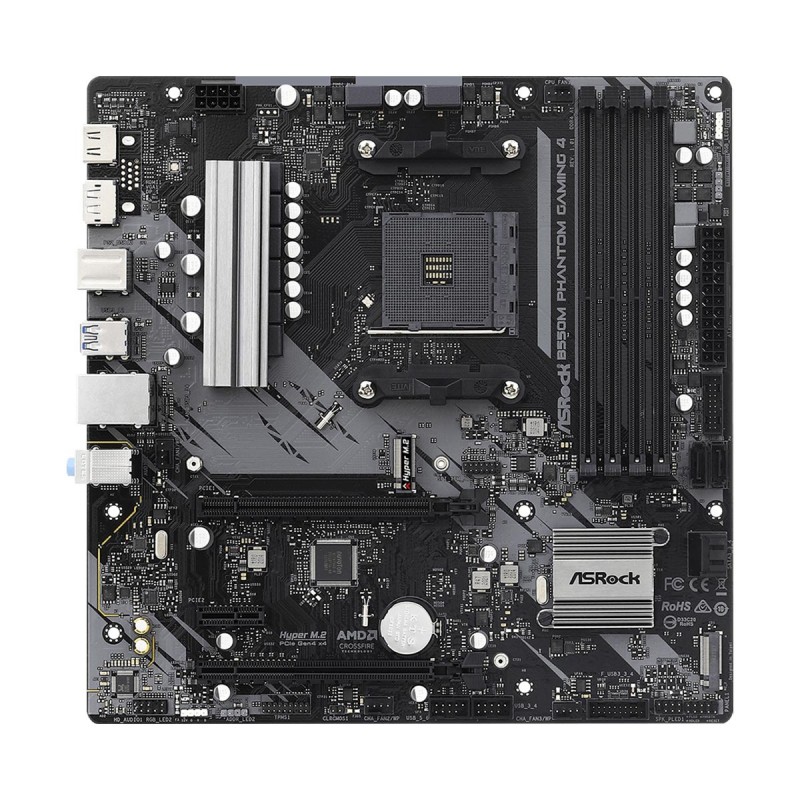

ASRock B550M PHANTOM GAMING 4, AMD B550 Chipset, Socket AM4, Micro ATX Desktop Motherboard

- Socket AM4, AMD B550 Chipset
- Supports Ryzen 3000 to 5000 Series Processors
- 4 x DDR4 DIMM Slots, up to 128GB, DDR4-4733+
- 1 x PCIe 4.0 x16 Slot
- 1 x PCIe 3.0 x16 Slot (x4 Electrical)
- 1 x PCIe 3.0 x1 Slot
- 1 x M.2 PCIe 4.0 NVMe Slot
- 1 x M.2 PCIe 3.0 x2 NVMe Slot
- 4 x SATA 3.0 Ports with RAID 0/1/10
- 1Gbps LAN
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 4 x Rear USB Type-A 5Gb/s
- 2 x Rear USB 2.0/1.1 Ports
- 1 x PS/2 Keyboard/Mouse Port
- 3 x Rear Audio Jacks
- 2 x ARGB Gen2 Headers
- Form Factor: Micro ATX
- 3 Year Warranty

  • Product Code: B550M PHANTOM GAMING 4
  • Availability: In Stock with Supplier leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Special Order Item: Ordered specially upon request. Contact us for estimated lead times.
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R2,043



Price displayed is already subject to a 4% discount for EFT payments
