ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. PRIME B760-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal. The PRIME B760-PLUS D4 motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel Core Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

CPU
  • Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
  • Intel B760 Express Chipset
Memory
  • 4 x DIMM, Max. 128GB, DDR4 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x DisplayPort
    * Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • 1 x VGA port
  • 1 x HDMI port
    * Supports 4K@60Hz as specified in HDMI 2.1.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
    Audio Shielding
    Premium audio capacitors
    Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN
  • 1 x Realtek 2.5Gb Ethernet
Wireless Communication Module

None

Expansion Slots

Intel 13th & 12th Gen Processors

  • 1 x PCIe 5.0 x16 slot

Intel B760 Chipset

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 2 x PCIe 3.0 x1 slots
Multi-Graphics Technology
  • N/A
Storage Interface

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel 13th & 12th Gen Processors

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel B760 Chipset

  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  • 4 x SATA 6Gb/s ports
    * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB

Rear USB (Total 6 ports)

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors

Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector

Storage related

  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt (USB4) header

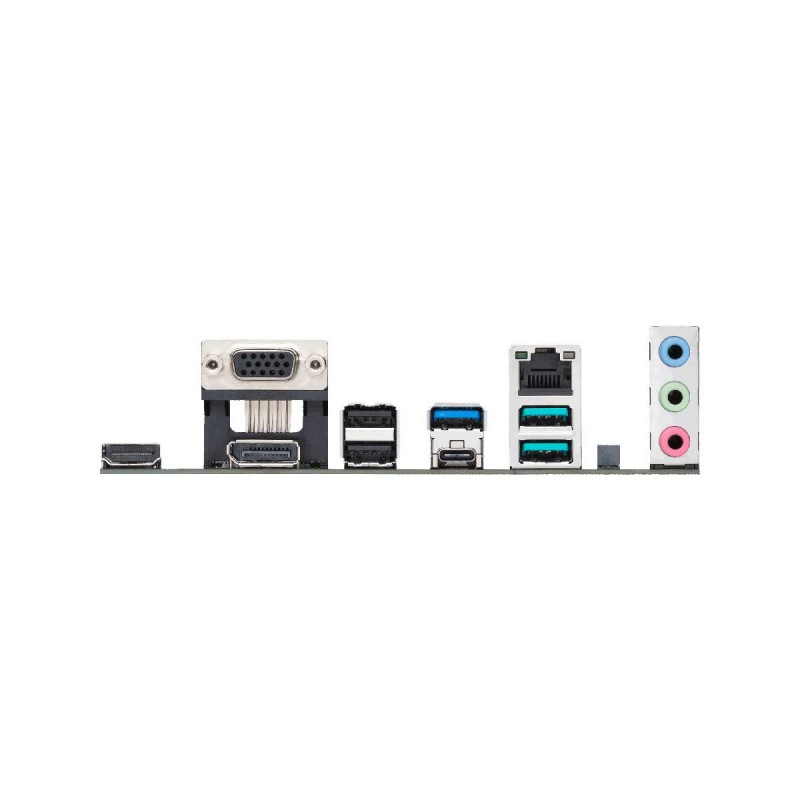

Back Panel Connectors
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI port
  • 1 x Vertical M.2 slot (Key E)
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
Unique Features

ASUS 5X PROTECTION III

  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O

ASUS Q-Design

  • Q-DIMM
  • Q-LED Core
  • Q-Slot

ASUS Thermal Solution

  • M.2 heatsink
  • VRM heatsink design

ASUS EZ DIY

  • ProCool

Aura Sync

  • Aura RGB header
  • Addressable Gen 2 headers
Bundled Software

ASUS Exclusive Software

Armoury Crate

  • Aura Creator
  • Aura Sync
  • Fan Xpert 2+
  • Power Saving

AI Suite 3

  • DIGI+ VRM
  • PC Cleaner

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

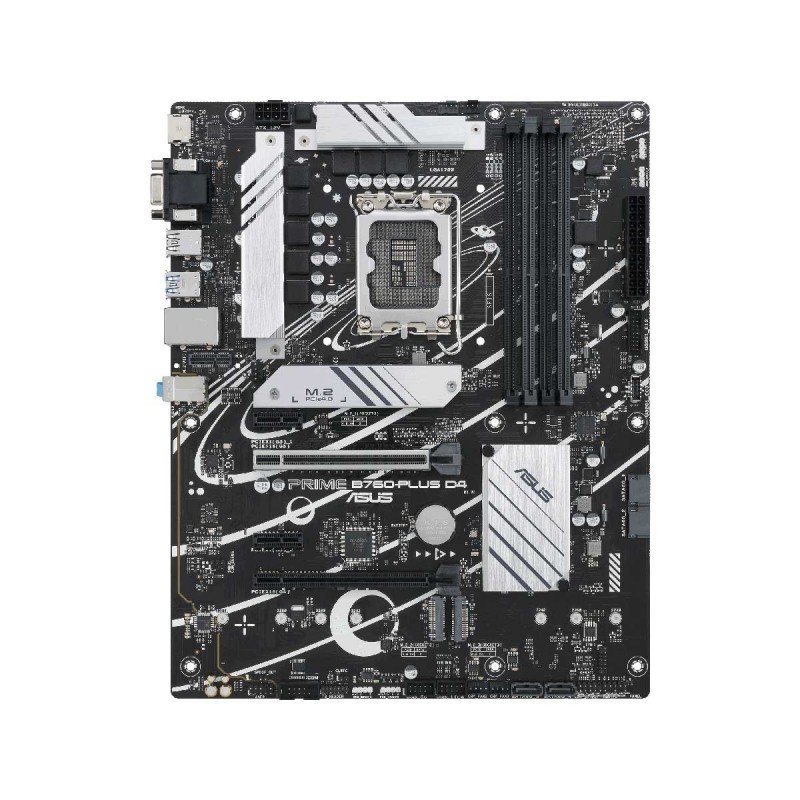

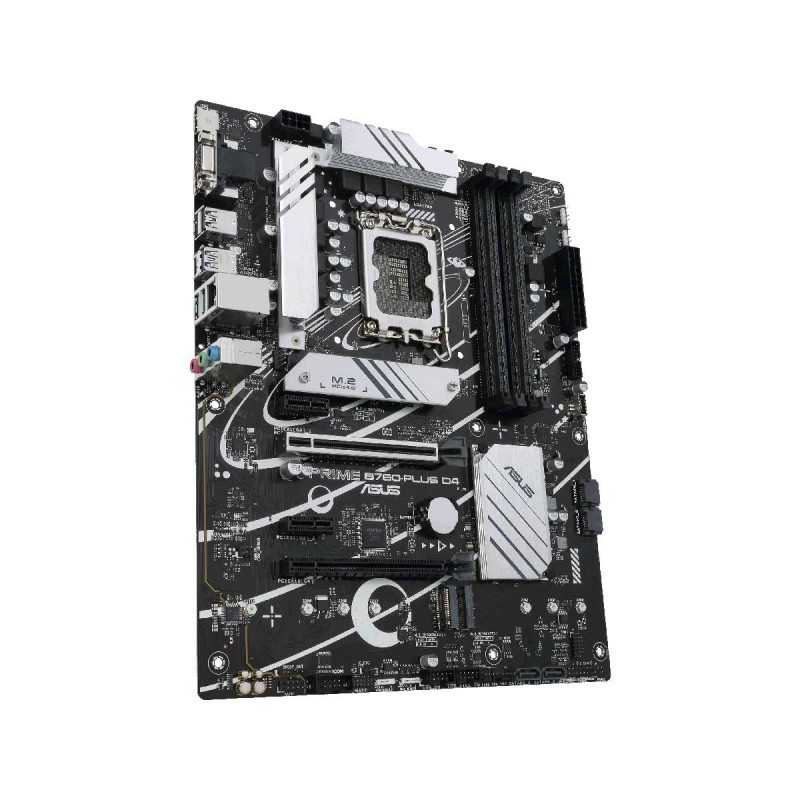

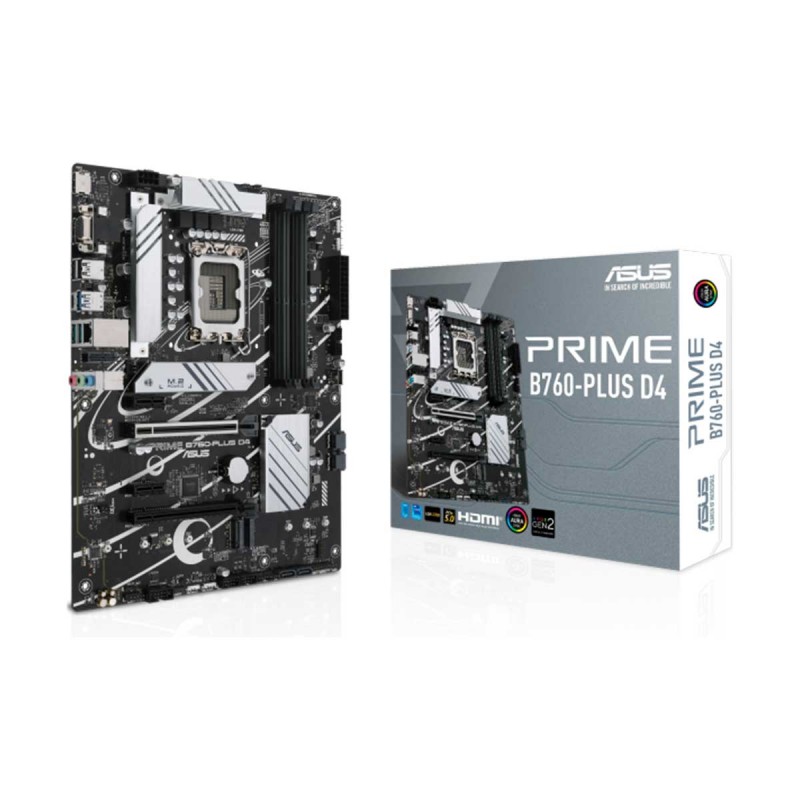

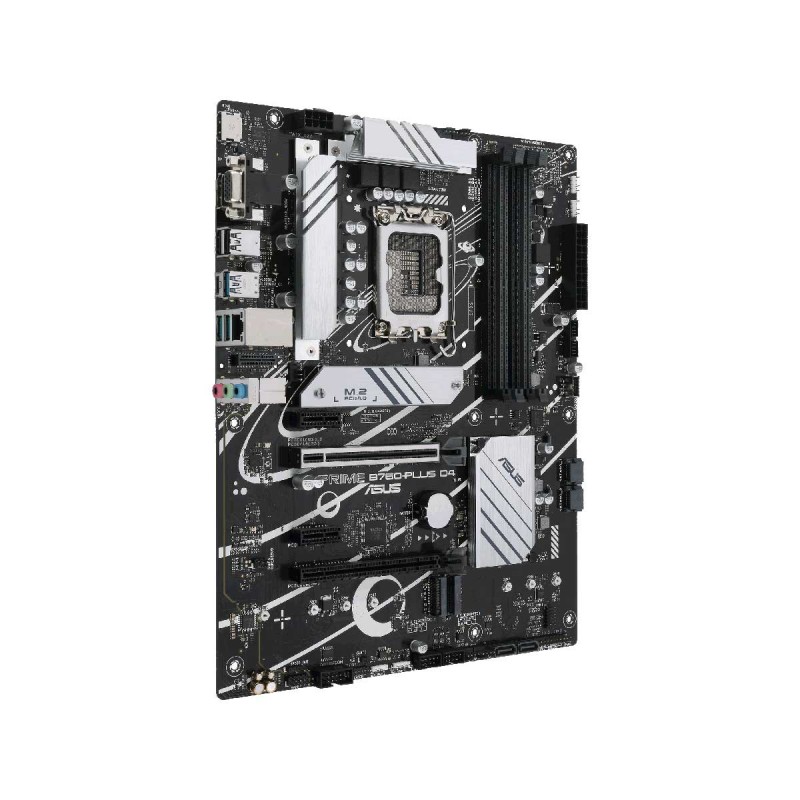

ASUS PRIME B760-PLUS D4, Intel B760 Chipset, LGA1700, DDR4, ATX Desktop Motherboard
