Images are for reference purposes only and product appearances/colours may vary.

ASUS TUF GAMING A620M-PLUS WIFI takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. With upgraded power delivery and comprehensive cooling options to fuel AMD's CPUs, plus support for faster memory and storage, TUF GAMING A620 motherboards are the perfect foundation for your next high-core-count AMD battle rig. Comprehensive memory tuning options are the cornerstone of  TUF GAMING motherboards. With TUF GAMING A620 motherboards, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. Dual M.2 slots support up to PCIe 4.0 and also provide NVMe SSD RAID support for incredible performance potential.  Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fast data transfer speeds.

CPU
  • AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
(Refer to www.asus.com for CPU support list.)
Chipset
  • AMD A620
Memory
  • 4 x DIMM, Max. 192GB, DDR5 7600+(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC and Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports AMD EXTended Profiles for Overclocking (EXPO)
  • OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
    * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Onboard Graphics

Integrated Graphics Processor:

  • 2 x DisplayPort
    * Support max. 8K@60Hz as specified in DisplayPort 1.4.
  • 1 x HDMI port
    * Supports 4K@60Hz as specified in HDMI 2.1.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  • Audio Features
    Audio Shielding
    Premium audio capacitors
    Dedicated audio PCB layers
LAN

1 x Realtek 2.5Gb Ethernet

  • TUF LANGuard
Wireless Communication Module

Wi-Fi 6

  • 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth v5.3
Expansion Slots

CPU:

  • 1 x PCIe 4.0 x16 slot

Chipset:

  • 2 x PCIe 3.0 x1 slots
Multi-Graphics Technology
  • N/A
Storage Interface

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

CPU:

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Chipset:

  • 4 x SATA 6Gb/s ports

AMD RAID Xpert Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

USB

Rear USB (Total 6 ports)

  • 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

  • 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors

Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector

Storage related

  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x 10-1 pin System Panel header

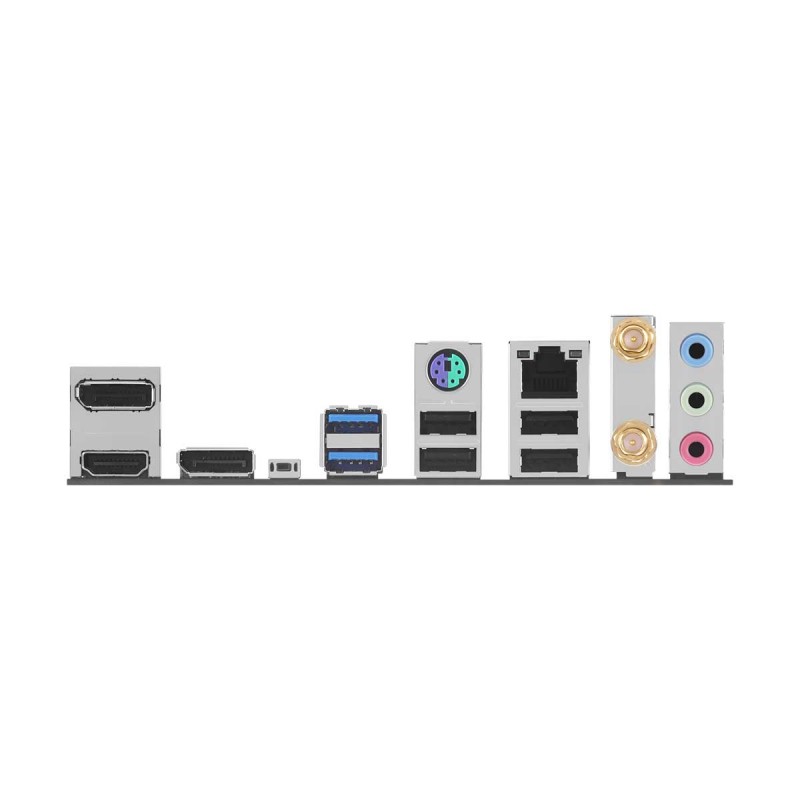

Back Panel Connectors
  • 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 2 x DisplayPort
  • 1 x HDMI port
  • 1 x Wi0Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack button
  • 1 x PS/2 Keyboard/Mouse combo port
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
Unique Features

ASUS TUF PROTECTION

  • DIGI+ VRM
  • ESD Guards
  • TUF LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O

ASUS Q-Design

  • M.2 Q-Latch
  • Q-DIMM
  • Q-LED Core
  • Q-Slot

ASUS Thermal Solution

  • VRM heatsink design

ASUS EZ DIY

  • BIOS FlashBack button
  • BIOS FlashBack LED

Aura Sync

  • Aura RGB header
  • Addressable Gen 2 headers
Bundled Software

Armoury Crate

  • Aura Creator
  • Aura Sync
  • Fan Xpert 2+
  • Power Saving
  • Two-Way AI Noise Cancellation

AI Suite 3

  • TurboV EVO
  • DIGI+ VRM
  • PC Cleaner

TUF GAMING CPU-Z

Norton 360 for Gamers (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
Operating System
  • Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

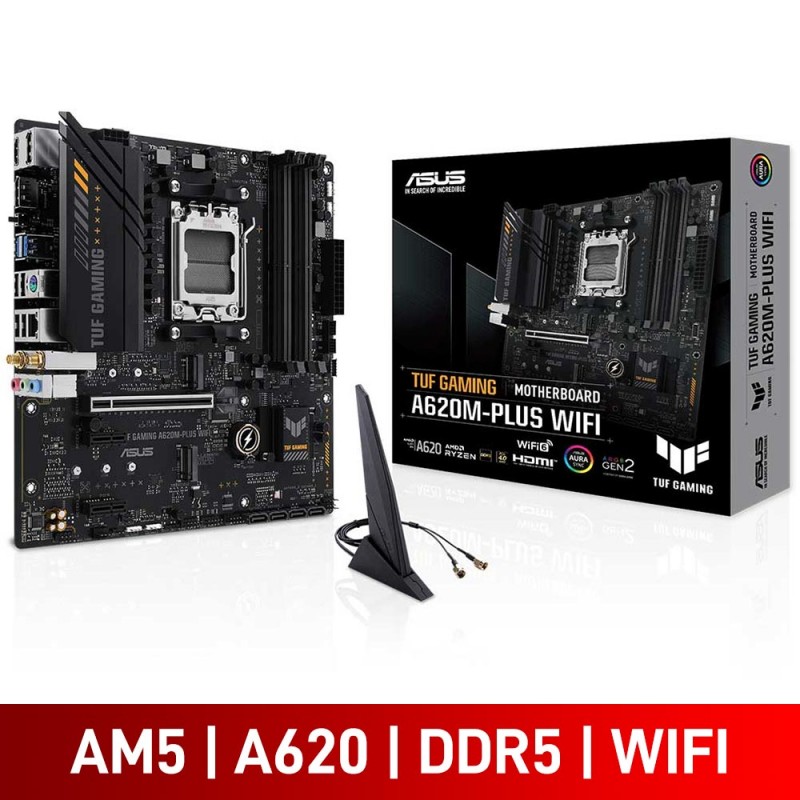

ASUS TUF GAMING A620M-PLUS WIFI, AMD A620 Chipset, Socket AM5, Micro ATX Desktop Motherboard

- Socket Socket AM5, AMD A620 Chipset
- Supports Ryzen 7000 / 8000 Series Processors
- 4 x DDR5 DIMM Slots, Up To 192GB, DDR5-7600
- 1 x PCIe 4.0 x16 Slot
- 2 x PCIe 3.0 x1 Slots
- 2 x M.2 PCIe 4.0 NVMe Slot
- 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 5 / 10
- 2.5Gbps LAN & Wi-Fi 6
- 2 x USB Type-A 5Gb/s
- 3 Year Warranty

  • Product Code: 90MB1F00-M0EAY0
