Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability. Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

CPU	Intel LGA1700, Supports 14th, 13th Gen & 12th Gen Intel Core Processors Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Supports ASRock Hyper BCLK Engine
Chipset	Intel B760 Express Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Dual Channel DDR5 Memory Technology Supports DDR5 non-ECC, un-buffered memory up to 7200MHz+(OC) 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively Supports Intel Extreme Memory Profile (XMP) 3.0
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI 2.1 TMDS Compatible Supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed) Supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Wireless Communication Module	802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports MU-MIMO Supports Killer LAN Software Supports Bluetooth 5.3 + High speed class II
Expansion Slots	CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 1 x PCIe 4.0 x1 Slot (PCIE2) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage Interface	CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (4 Rear, 2 Front) All USB ports support ESD Protection
Internal I/O Connectors	1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header Supports in total up to 12V/3A, 36W LED Strip 3 x Addressable LED Headers Support in total up to 5V/3A, 15W LED Strip 1 x CPU Fan Connector (4-pin) CPU_FAN1 supports the fan power up to 1A (12W) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) CPU_FAN2/WP supports the fan power up to 2A (24W) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) CHA_FAN1~3/WP support the fan power up to 2A (24W) CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header

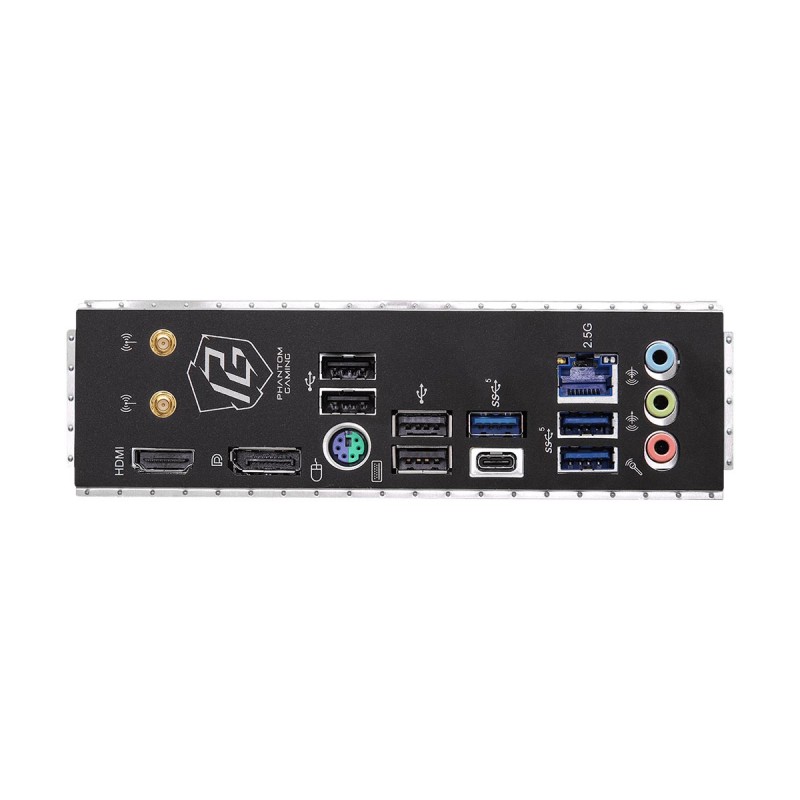

Back Panel Connectors	2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone
I/O Controller	Not Specified
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash AMI UEFI Legal BIOS with GUI support
Unique Features	Superb Productivity Dual Channel DDR5 Rock-Solid Durability 14+1+1 Power Phase Pre-Installed I/O Shield Ultrafast Connectivity 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module EZ Update ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
Bundled Software	Software ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Phantom Gaming LAN Software Killer Control Center ASRock Polychrome SYNC These utilities can be downloaded from ASRock Live Update & APP Shop UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Operating System	Support for Windows 11 64-bit
Form Factor	Micro ATX Form Factor 24.4cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

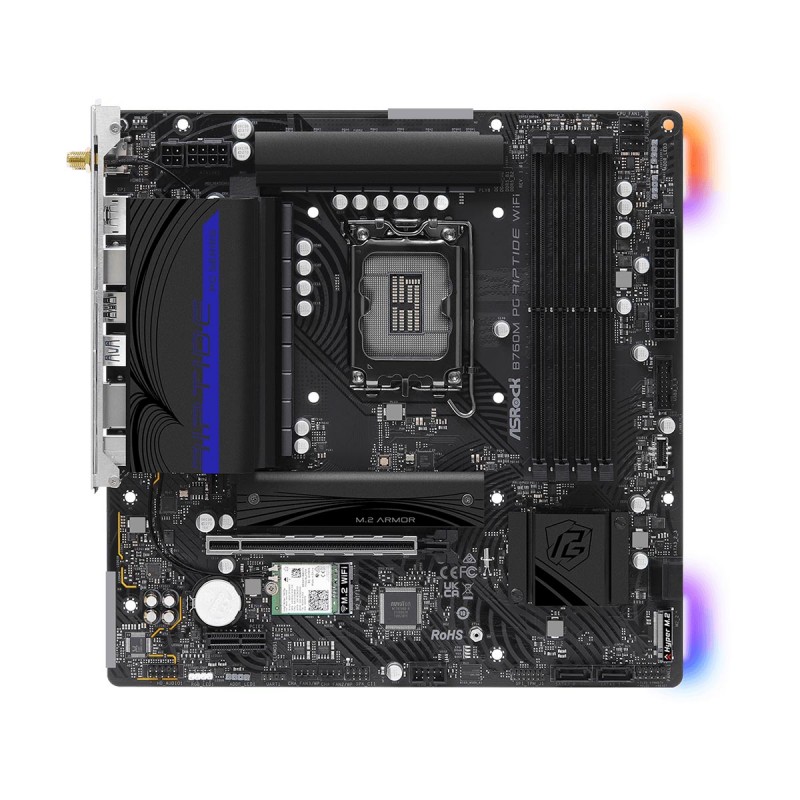

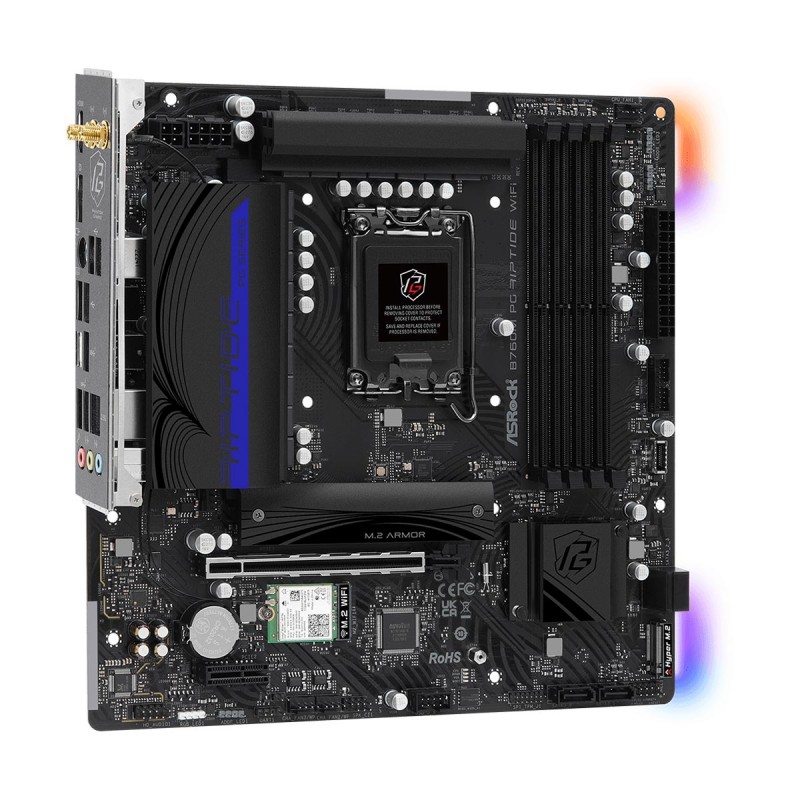

ASRock B760M PG RIPTIDE WiFi, Intel B760 Chipset, LGA1700, DDR5, Micro ATX Desktop Motherboard

- Socket LGA1700, Intel B760 Chipset
- Supports 12th, 13th and 14th Gen Intel Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-7200+ (OC)
- 1 x PCIe 4.0 x16 Slot
- 1 x PCIe 4.0 x1 Slot
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5Gbps LAN, Wi-Fi 6E & Bluetooth 5.3
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 1 x Rear USB Type-C 5Gb/s
- 3 x Rear USB Type-A 5Gb/s
- 4 x Rear USB 2.0/1.1
- 1 x PS/2 Keyboard/Mouse Port
- 3 x Rear Audio Jacks
- ASRock POST Status Checker
- Integrated RGB Lighting & 3 x ARGB Gen2 Headers
- Form Factor: Micro ATX
- 3 Year Warranty

Product Code: 90-MXBL60-A0UAYZ
Availability: Out Of Stock Lead Times:

In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.

In Stock with Supplier: 1-3 business days until dispatched or ready for collection

Out Of Stock: Contact us to see if this item will be restocked.

OUT OF STOCK

Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
