• Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)

• Supports Intel Hybrid Technology
• Supports Intel Turbo Boost Max 3.0 Technology
• Supports Intel Thermal Velocity Boost (TVB)
• Supports Intel Adaptive Boost Technology (ABT)

• Intel Z790 Express Chipset


• Dual Channel DDR5 Memory Technology

• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)
  1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively
  1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively
  2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively
  2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively
• Max. capacity of system memory: 128GB
• Supports Intel Extreme Memory Profile (XMP) 3.0

Integrated Graphics Processor-Intel HD Graphics support:

• 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz

• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• Nahimic Audio

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

• None

• 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode

• 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
• 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

• AMD CrossFiire


CPU:

• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

Chipset:

• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 8 x SATA3 6.0 Gb/s Connectors

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Supports Intel Volume Management Device (VMD)

Supports NVMe SSD as boot disks

Rear:

• 1 x USB 3.2 Gen2 Type-C
• 1 x USB 3.2 Gen2 Type-A
• 2 x USB 3.2 Gen1
• 4 x USB 2.0

Front:

• 1 x USB 3.2 Gen2x2 Type-C
• 4 x USB 3.2 Gen1
• 4 x USB 2.0

All USB ports support ESD protection

• 1 x eDP Signal Connector

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
  * Supports in total up to 12V/3A, 36W LED Strip
• 3 x Addressable LED Headers
  * Support in total up to 5V/3A, 15W LED Strip
• 1 x CPU Fan Connector (4-pin)
  * CPU_FAN1 supports the fan power up to 1A (12W).
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  * CPU_FAN2/WP supports the fan power up to 2A (24W).
• 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  * CHA_FAN1~5/WP support the fan power up to 2A (24W).
  * CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

• 2 x Antenna Mounting Points

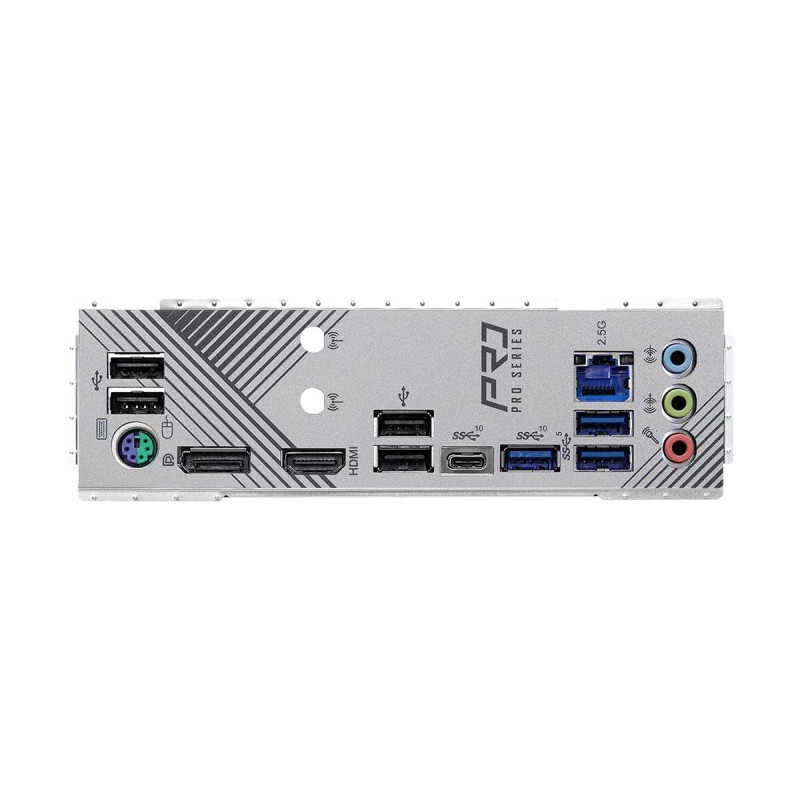

• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• 2 x USB 3.2 Gen1 Ports
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 3 x HD Audio Jacks: Line in / Front Speaker / Microphone

• Not Specified

• Not Specified

• 128Mb AMI UEFI Legal BIOS with GUI support

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer

Superb Productivity

• PCIe Gen5 (Graphics)
• Dual Channel DDR5

Rock-Solid Durability

• 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
• Flexible Integrated I/O Shield

Ultrafast Connectivity

• 2.5G LAN

EZ Update

• ASRock Auto Driver Installer

EZ Troubleshooter

• ASRock Post Status Checker

ASRock Motherboard Utility (A-Tuning)

ASRock Dragon 2.5G LAN Software

ASRock Polychrome SYNC

• Support for Windows 10/11 64-bit

• ATX Form Factor, 30.5cm x 24.4cm
