• LGA1700 socket: Support for 12th Gen Intel Core, Pentium Gold and Celeron Processors

• L3 cache varies with CPU

• Intel B660 Express Chipset


• Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules

• 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Integrated Graphics Processor-Intel HD Graphics support

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  * Support native HDMI 2.1 TMDS compatible ports.

Realtek Audio CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)


• None

1 x PCI Express x16 slot, running at x16 (PCIEX16)

• For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• The PCIEX16 slot conforms to PCI Express 4.0 standard.

2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2)

• All of the PCI Express slots conform to PCI Express 3.0 standard.

• N/A


CPU:

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• Intel Optane Memory Ready
  * System acceleration with Intel Optane Memory can only be enabled on the M.2 connector supported by the Chipset.

Chipset:

• 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:

• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper
  ＊ All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

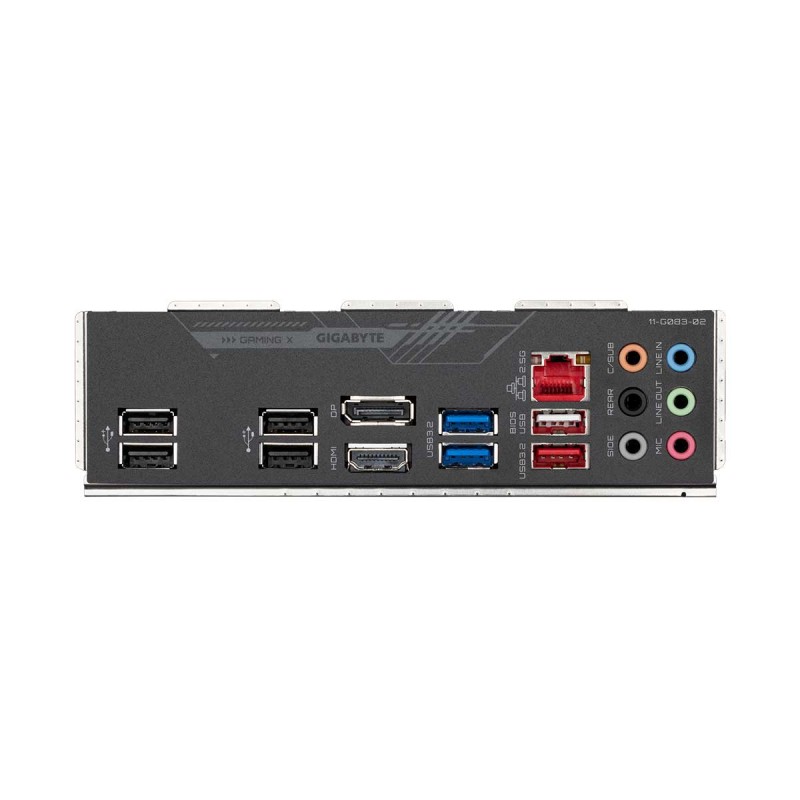

• 1 x USB 3.2 Gen 2 Type-A port (red)

• 2 x USB 3.2 Gen 1 ports
• 5 x USB 2.0/1.1 ports
• 1 x DisplayPort
• 1 x HDMI 2.0 port
• 1 x RJ-45 port
• 6 x audio jacks

• iTE I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning

• Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• 1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer

• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install


• Norton Internet Security (OEM version)
• LAN bandwidth management software

• Support for Windows 10/11 64-bit

• ATX Form Factor, 30.5cm x 24.4cm
