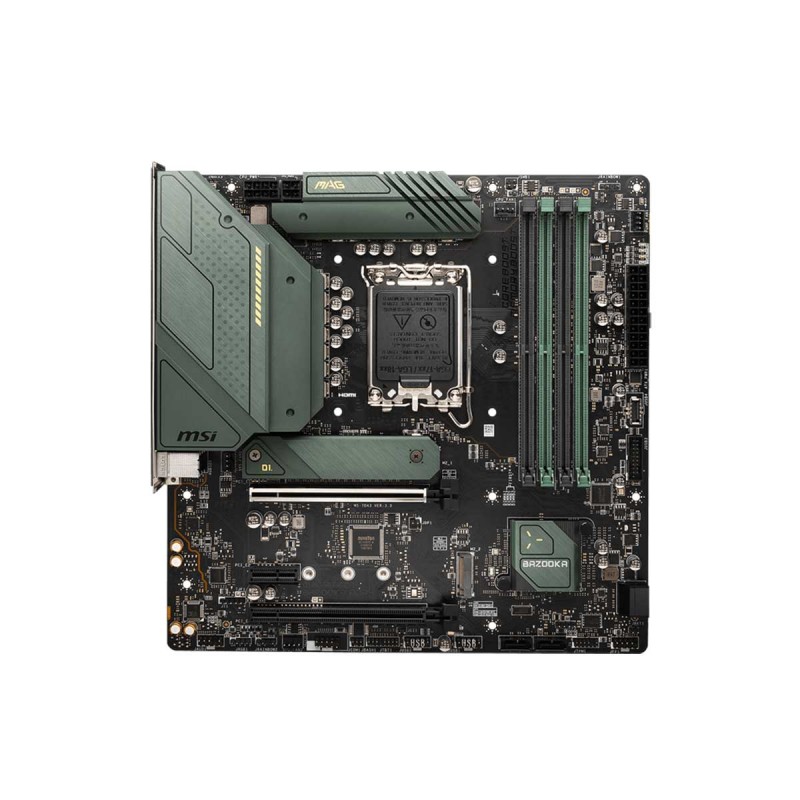

With years of experience, MSI is no stranger to building high-performance motherboards. Out R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
| CPU | - Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Processor socket LGA1700
|
| Chipset | - Intel B660 Express Chipset
|
| Memory | - 4x DDR4 memory slots, support up to 128GB
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
- Max overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz - Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel Extreme Memory Profile (XMP)
|
| Onboard Graphics | - 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
- 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Audio | Realtek ALC897 Codec - 7.1-Channel High Definition Audio
|
| LAN | - 1 x Realtek 8125BG 2.5Gbps LAN controller
|
| Wireless Communication Module | |
| Expansion Slots | 2x PCIe x16 slots - PCI_E1 slot (From CPU)
Supports PCIe 4.0 x16 - PCI_E3 slot (From B660 Chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot (From B660 chipset) |
| Multi-Graphics Technology | - Supports 2-Way AMD CrossFire Technology
|
| Storage Interface | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) - SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2x M.2 slots (Key M) - M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices - M2_2 slot (From B660 Chipset)
SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Optane Memory
|
| USB | Intel B660 Chipset - 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
- 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
Asmedia ASM1074 - 2x USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
|
| Internal I/O Connectors | - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x M.2 slots (M-Key)
- 1 x USB 3.2 Gen 1 5Gbps Type-C port
- 1 x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump fan connector
- 2 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Clear CMOS jumper
- 1 x TBT connector (supports RTD3)
- 1 x Serial port
- 1 x Tuning Controller connector
|

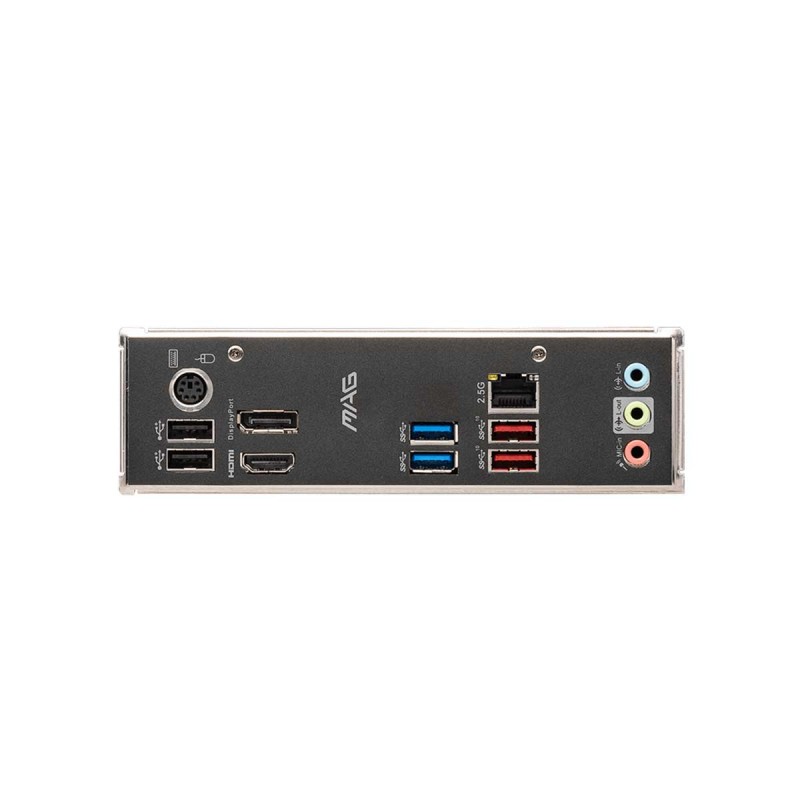

| Back Panel Connectors | - 1 x Keyboard / Mouse
- 1 x DisplayPort
- 1 x 2.5G LAN
- 3 x Audio Connectors
- 2 x USB 2.0
- 1 x HDMI
- 2 x USB 3.2 Gen 1 5Gbps Type-A
- 2 x USB 3.2 Gen 2 10Gbps Type-A
|
| I/O Controller | |
| H/W Monitoring | - Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
|
| BIOS | |
| Unique Features | - 1 x 4-pin RGB LED connector
- 2 x 3-pin RAINBOW LED connectors
- 4 x EZ Debug LED
|
| Bundled Software | |
| Operating System | - Support for Windows 10/11 64-bit
|
| Form Factor | - Micro ATX Form Factor, 24.4cm x 24.4cm
|
| Manufacturer |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information |
| Warranty Duration | 3 Years |
