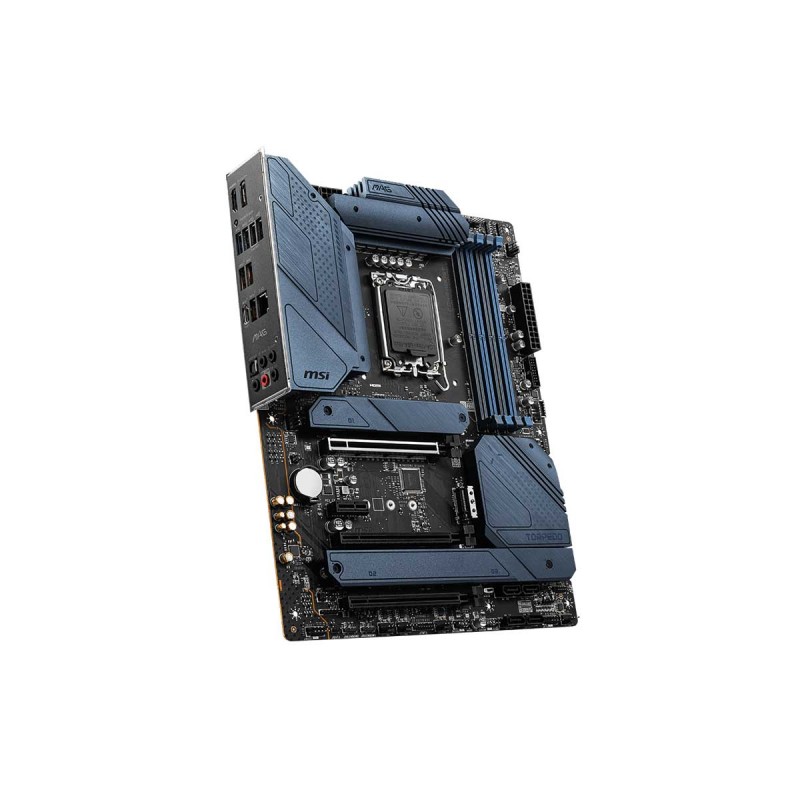

With years of experience, MSI is no stranger to building high-performance motherboards. Out R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
| CPU | - Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Processor socket LGA1700
|
| Chipset | - Intel Z690 Express Chipset
|
| Memory | - 4x DDR5 memory slots, supporting up to 128GB
- Supports 1R 4800 MHz (by JEDEC & POR)
- Max overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5400+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz - Supports Intel XMP 3.0 OC
- Supports Dual Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
|
| Onboard Graphics | - 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
- 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Audio | Realtek ALC4080 Codec - 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
| LAN | - 1 x Intel I225V 2.5Gbps LAN controller
|
| Wireless Communication Module | |
| Expansion Slots | CPU - 1x PCIe x16 slots
- PCI_E1
Support up to PCIe 5.0 x16
Chipset - 2x PCIe x16 slots
- PCI_E3
Support up to PCIe 3.0 x4 - PCI_E4
Support up to PCIe 3.0 x1 - 1x PCIe 3.0 x1 slot
|
| Multi-Graphics Technology | - Supports AMD CrossFire Technology
|
| Storage Interface | 6x SATA 6Gb/s ports (From Z690 chipset) 4x M.2 slots (Key M) - M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices - M2_2 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices - M2_3 slot (From Z690 chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices - M2_4 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices - Intel Optane Memory Ready for M.2 slots from Z690 Chipset
Supports Intel Smart Response Technology for Intel Core processors |
| USB | Intel Z690 Chipset - 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
- 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
- 1x USB 2.0 Type-A port on the back panel
Hub-GL850G - 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
|
| Internal I/O Connectors | - 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 6 x SATA 6Gb/s connectors
- 4 x M.2 slots (M-Key)
- 1 x USB 3.2 Gen 2 10Gbps Type-C port
- 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump fan connector
- 6 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Clear CMOS jumper
- 1 x TBT connector (supports RTD3)
- 1 x Tuning Controller connector
|
| Back Panel Connectors | - 1 x DisplayPort 1.4
- 2 x USB 2.0 Port
- 3 x USB 3.2 Gen 2 10Gbps Type-A
- 1 x 2.5G LAN Port
- 5 x HD Audio Connectors
- 1 x HDMI 2.1 Port
- 1 x Flash BIOS Button
- 2 x USB 3.2 Gen 1 5Gbps Type-A
- 1 x USB 3.2 Gen 2x2 20Gbps Type-C
- 1 x Optical S/PDIF OUT
|
| I/O Controller | |
| H/W Monitoring | - Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
|
| BIOS | |
| Unique Features | - 1 x EZ LED Control switch
- 1 x 4-pin RGB LED connectors
- 3 x 3-pin RAINBOW LED connectors
- 4 x EZ Debug LED
|
| Bundled Software | |
| Operating System | - Support for Windows 10/11 64-bit
|
| Form Factor | - ATX Form Factor, 30.5cm x 24.4cm
|
| Manufacturer |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information |
| Warranty Duration | 3 Years |
