• Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket


• Intel Z490 Express Chipset


• 4 x DDR4 memory slots, support up to 128GB

• Supports 1R 2133/2666/2933 MHz
  1DPC 1R Max speed up to 5000+ MHz
  1DPC 2R Max speed up to 4500+ MHz
  2DPC 1R Max speed up to 4400+ MHz
  2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC mode, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

None

• Realtek ALC1220 Codec + ESS SABRE9018Q2C combo DAC
• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output

• 1 x Realtek 8125B 2.5G LAN controller

• 1 x Intel I219V 1G LAN controller

Intel AX201

• Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
• WiFi 6 Pre-Certified
• Supports Bluetooth 5.1 , FIPS, FISMA
• The Wireless module is pre-install in the M2 (Key-E) slot

• 3 x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)

• 2 x PCIe x1 slots (from PCH)
• PCIE_5 shares lanes with M2_3, please refer to manual for details

• Supports 2-Way NVIDIA SLI Technology

• Supports 3-Way AMD CrossFire Technology

Chipset:

• 6 x SATA 6Gb/s ports

• 3 x M.2 slots (Key M)
  M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
  M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
  Intel Optane Memory Ready
  Supports Intel Smart Response Technology for Intel Core processors
• SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
• SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
• M2_3 shares lanes with PCIE_5, please refer to manual for details
• Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Chipset:

• 4 x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector)

• 4 x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector)
• 6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

ASMedia 3241 Chipset:

• 1 x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connectors
• 6 x SATA 6Gb/s connectors
• 3 x M.2 slots (M-Key)
• 1 x USB 3.2 Gen 2 10Gbps Type-C port
• 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump connector
• 6 x 4-pin system fan connectors
• 1 x front panel audio connector
• 2 x system panel connectors
• 1 x Chassis Intrusion connector
• 1 x slow mode jumper
• 1 x power button
• 1 x reset button
• 1 x 4-pin RGB LED connector
• 2 x 3-pin RAINBOW LED connectors
• 1 x 3-pin CORSAIR LED connector
• 1 x RTD3 connector
• 1 x TBT connector (Thunderbolt card need support RTD3)

• 1 x Clear CMOS Button

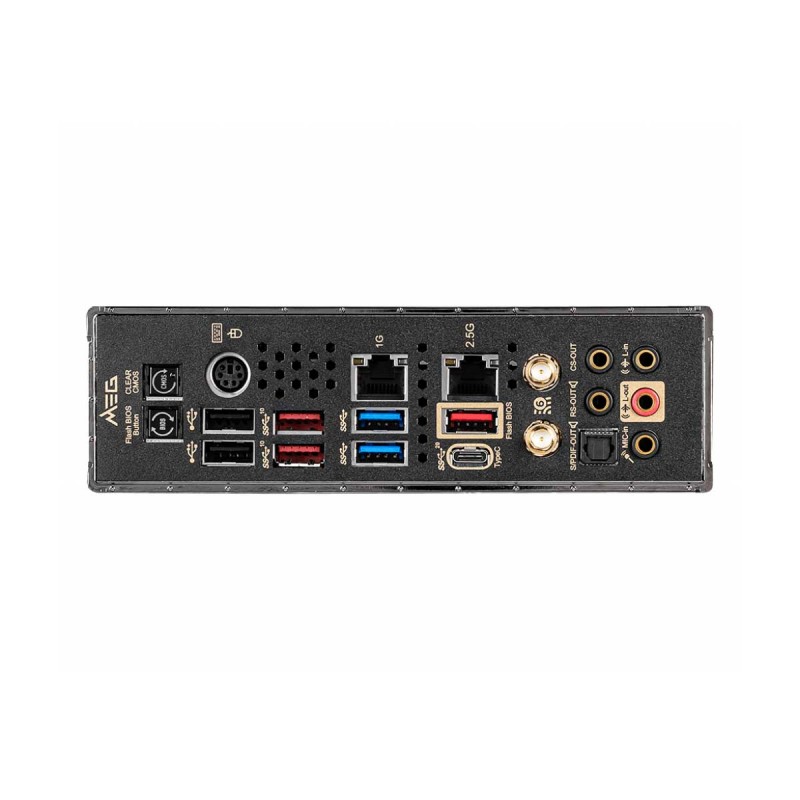

• 1 x PS/2 Keyboard / Mouse Port
• 1 x 1G LAN
• 1 x 2.5G LAN
• 2 x Wi-Fi /Bluetooth Antenna Connectors
• 5 x HD Audio Connectors
• 1 x Flash BIOS Button
• 2 x USB 2.0 Ports
• 3 x USB 3.2 Gen 2 10Gbps (Type-A)
• 2 x USB 3.2 Gen 1 5Gbps (Type-A)
• 1 x USB 3.2 Gen 2x2 20Gbps (Type-C)
• 1 x Optical S/PDIF-Out

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• N/A

• N/A

• Driver Disc

• Support for Windows 10 64-bit

• ATX Form Factor, 30.5cm x 24.4cm
