• Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
• Processor socket LGA1700

• Intel Z690 Express Chipset


• 4x DDR5 memory slots, support up to 128GB

• Supports 1R 4800 MHz (by JEDEC & POR)
• Max. overclocking frequency:
  1DPC 1R Max speed up to 6666+ MHz
  1DPC 2R Max speed up to 5600+ MHz
  2DPC 1R Max speed up to 4000+ MHz
  2DPC 2R Max speed up to 4000+ MHz
• Supports Intel XMP 3.0 OC
• Supports Dual Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

• N/A

Realtek ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• 2x Intel I225V 2.5Gbps LAN controllers


Intel Wi-Fi 6E

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth 5.2, FIPS, FISMA
  * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 version 21H1 and Windows 11.
  * Bluetooth 5.2 will be ready in Windows 10 version 21H1 and Windows 11.

CPU:

• 2x PCIe x16 slots
  Support PCIe 5.0
  Support x16/ x0, x8/ x8

Chipset:

• 1x PCIe x4 slot
  Supports PCIe 3.0 x4

• Supports NVIDIA SLI Technology

• Supports AMD CrossFire Technology

6x SATA 6Gb/s ports

• SATA5~8 (From Z690 Chipset)
• SATAA~B (From ASMedia ASM1061)

5x M.2 slots (Key M)

• M2_1 slot (From CPU)
  Supports PCIe 4.0 x4
  Supports 2260/ 2280 storage devices
• M2_2 slot (From Z690 Chipset)
  Supports PCIe 4.0 x4
  Supports 2260/ 2280 storage devices
• M2_3 slot (From Z690 Chipset)
  Supports PCIe 4.0x4
  Supports SATA 6Gb/s
  Supports 2260/ 2280/ 22110 storage devices
• M2_4 slot (From Z690 Chipset)
  Supports PCIe 3.0x4
  Supports 2260/ 2280 storage devices
• M2_5 slot (From Z690 Chipset)
  Supports PCIe 4.0x4
  Supports 2260/ 2280 storage devices
• M2_2~5 supports Intel Optane Memory

Supports Intel Smart Response Technology for Intel Core processors

Intel Z690 Chipset

• 2x USB 3.2 Gen2x2 20Gbps ports ( 1 Type-C port on the back panel, 1 Type-C internal connector)
• 3x USB 3.2 Gen2 10Gbps Type-A ports on the back panel
• 2x USB 2.0 Type-A port on the back panel

Hub GL3590

• 4x USB 3.2 Gen2 10Gbps ports on the back panel

Hub ASM1074

• 4x USB 3.2 Gen1 5Gbps ports available through internal USB connectors

Hub GL850G

• 4x USB 2.0 ports available through internal USB connectors

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connectors
• 6 x SATA 6Gb/s connectors
• 5 x M.2 slots (M-Key)
• 1 x USB 3.2 Gen 2x2 20Gbps Type-C port
• 2 x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump fan connector
• 6 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 2 x 2-pin Thermal Sensors connector
• 1 x Water flow connector
• 1 x V-check point
• 1 x TPM module connector
• 1 x Tuning controller connector
• 1 x Debug port connector
• 1 x TBT connector (Supports RTD3)

• 1 x Clear CMOS Button

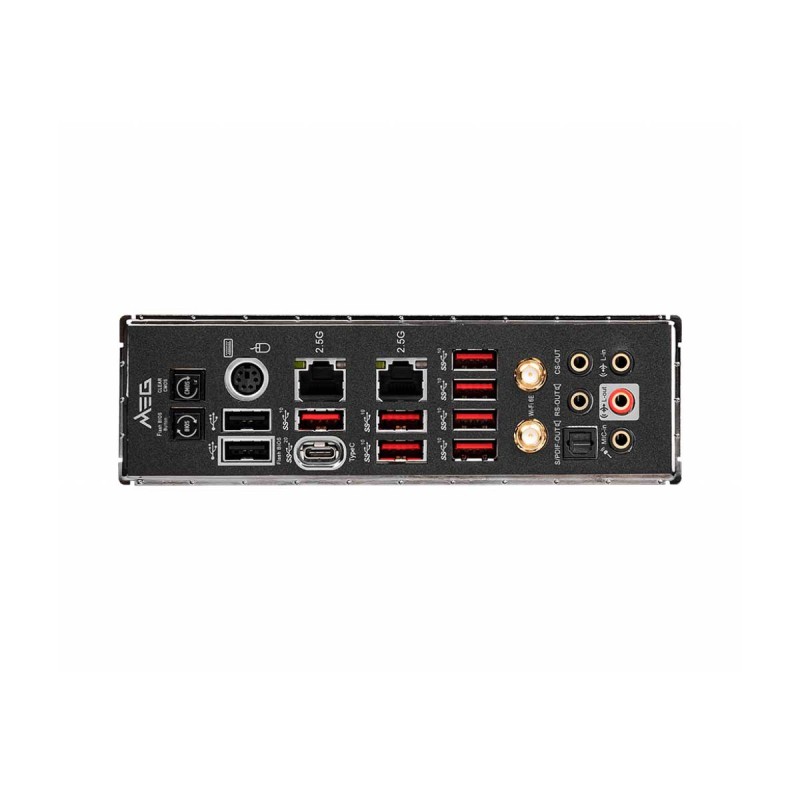

• 1 x PS/2 Keyboard/Mouse Port
• 2 x 2.5G LAN
• 7 x USB 3.2 Gen 2 10Gbps (Type-A)
• 2 x Wii-Fi / Bluetooth
• 5 x HD Audio Connectors
• 1 x Flash BIOS Button
• 2 x USB 2.0
• 1 x USB 3.2 Gen 2x2 20Gbps (Type-C)
• 1 x Optical S/PDIF-Out

• Not Specified

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• Not Specified

• 1 x 2-Digit Debug Code LED

• 4 x EZ Debug LED
• 1 x 4-pin RGB LED connector
• 2 x 3-pin RAINBOW LED connectors
• 1 x 3-pin JCORSAIR LED connector

• Driver Disc

• Support for Windows 10/11 64-bit

• ATX Form Factor, 30.5cm x 24.4cm)
