The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion. MPG Z790 EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful. Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed. Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSDs safe while preventing throttling. The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s. The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790 EDGE WIFI is ready to deliver the world class memory performance.

CPU
  • LGA 1700 supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset
  • Intel Z790 Express Chipset
Memory
  • 4 x DDR5, Maximum Memory Capacity 128GB
  • Memory Support 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz
  • Max. overclocking frequency:
    1DPC 1R Max speed up to 7200+ MHz
    1DPC 2R Max speed up to 6600+ MHz
    2DPC 1R Max speed up to 6400+ MHz
    2DPC 2R Max speed up to 5600+ MHz
  • Supports Intel XMP3.0 OC
  • Supports Dual-Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x HDMI
    * Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
  • 1 x DisplayPort
    * Support DP 1.4, maximum resolution of 8K 60Hz

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek ALC4080 Codec

  • 7.1-Channel USB High Performance Audio
  • Supports up to 32-Bit/384 kHz playback on front panel
LAN
  • Intel 2.5Gbps LAN
Wireless Communication Module

Intel Wi-Fi 6E

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth 5.2, FIPS, FISMA
Expansion Slots

CPU:

  • 1 x PCI-E x16 slot
    * PCI_E1 PCIe 5.0 supports up to x16

Chipset:

  • 1 x PCI-E x16 slots
    * PCI_E3 PCIe 4.0 supports up to x4
  • 1x PCI-E x1 slot
    * PCI_E2 PCIe 3.0 supports up to x1
Multi-Graphics Technology
  • N/A
Storage Interface

CPU:

  • 1 x M.2 Slot
    * M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

Chipset:

  • 4 x M.2 slot
    * M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    * M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    * M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    * M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 7 x SATA 6G port

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

* SATA_A1~A2 do not support RAID function.

USB

Rear

  • 4 x USB 3.2 Gen1 Type A
  • 4 x USB 3.2 Gen2 Type A
  • 1 x USB 3.2 Gen2 Type C
  • 1 x USB 3.2 Gen2x2 Type C

Front:

  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type A
  • 1 x USB 3.2 Gen2 Type C
Internal I/O Connectors
  • 1 x Power Connector(ATX_PWR)
  • 2 x Power Connector(CPU_PWR)
  • 1 x CPU Fan
  • 1 x Pump Fan
  • 6 x System Fan
  • 2 x Front Panel (JFP)
  • 1 x Chassis Intrusion (JCI)
  • 1 x Front Audio (JAUD)
  • 1 x TBT connector (JTBT, supports RTD3)
  • 1 x Tuning Controller connector(JDASH)
  • 3 x Addressable V2 RGB LED connector (JARGB_V2)
  • 1 x RGB LED connector(JRGB)
  • 1 x TPM pin header(Support TPM 2.0)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type A
  • 1 x USB 3.2 Gen2 Type C

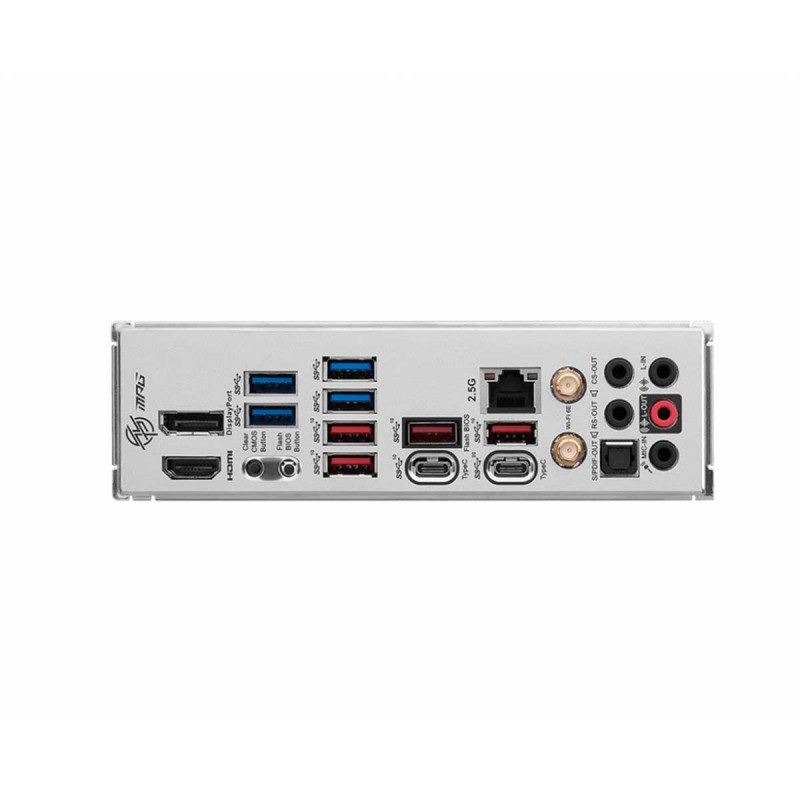

Back Panel Connectors
  • 1 x Display Port
  • 4 x USB 3.2 Gen 1 5 Gbps (Type-A)
  • 4 x USB 3.2 Gen 2 10Gbps (Type-A)
  • 1 x 2.5G LAN
  • 1 x Wi-Fi / Bluetooth
  • 5 x Audio Connectors
  • 1 x HDMI
  • 1 x Clear CMOS
  • 1 x Flash BIOS
  • 1 x USB 3.2 Gen 2 10Gbps (Type-C)
  • 1 x USB 3.2 Gen 2x2 20Gbps (Type-C)
  • 1 x Optical S/PDIF Out
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • Not Specified
Unique Features
  • 4 x EZ Debug LED
  • 1 x EZ LED Control switch
Bundled Software
  • Drivers
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
