The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance. The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH. Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.

CPU
  • LGA1700 socket: Support Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Chipset
  • Intel B760 Express Chipset
Memory
  • 4 x DDR5, Maximum Memory Capacity 256GB
  • Memory Support 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel Extreme Memory Profile (XMP)
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x HDMI
    • Support HDMI 1.4, maximum resolution of 4K 30Hz
  • 1 x DisplayPort
    • Support DP 1.4, maximum resolution of 4K 60Hz
  • 1 x VGA
    • Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Audio

Realtek ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN

Realtek RTL8111H Gigabit LAN

  • 10/100/1000 Gbps
Wireless Communication ModuleNone
Expansion Slots

1 x PCI-E x16 slot

  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

2 x PCI-E x1 slot

  • PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage Interface

2 x M.2 slot

  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4 x SATA 6G

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
USB

4 x USB 2.0

  • 1 x USB 5Gbps Type A
  • 1 x USB 10Gbps Type C

Front:

  • 4 x USB 2.0
  • 2 x USB 5Gbps Type A
Internal I/O Connectors
  • 1 x Power Connector(ATX_PWR)
  • 1 x Power Connector(CPU_PWR)
  • 1 x CPU Fan
  • 2 x System Fan
  • 2 x Front Panel (JFP)
  • 1 x Chassis Intrusion (JCI)
  • 1 x Front Audio (JAUD)
  • 1 x Printer Port (JLPT)
  • 1 x Com Port (JCOM)
  • 1 x RGB LED connector(JRGB)
  • 1 x TPM pin header(Support TPM 2.0)
  • 4 x USB 2.0 ports
  • 2 x USB 5Gbps Type A ports

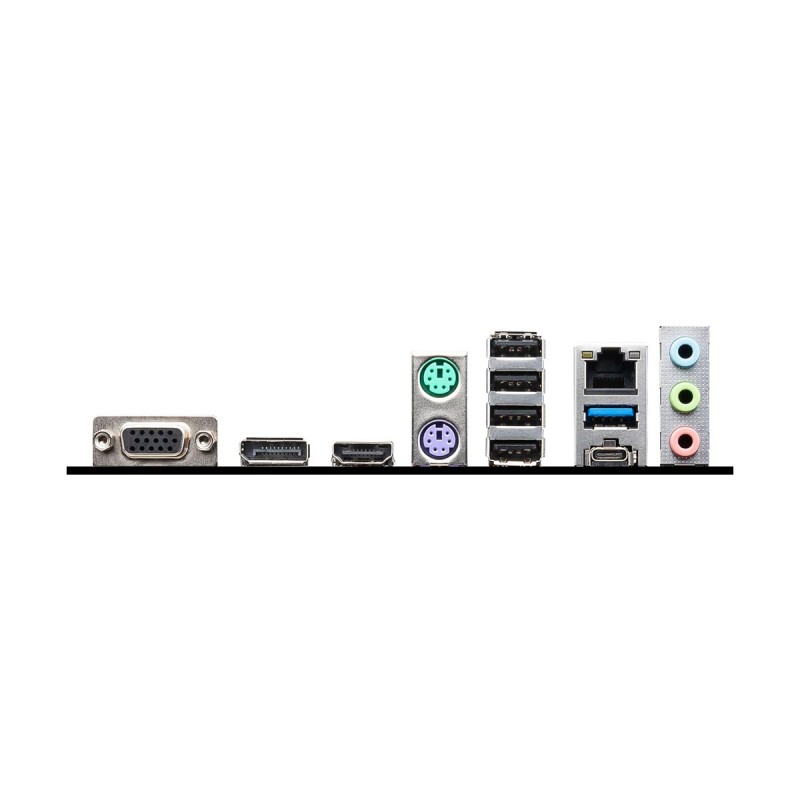

Back Panel Connectors
  • 1 x VGA
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x Keyboard / Mouse
  • 4 x USB 2.0
  • 1 x LAN port
  • 3 x Audio Connectors
  • 1 x USB 3.2 Gen 1 5Gbps (Type-A)
  • 1 x USB 3.2 Gen 2 10Gbps (Type-C)
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • Not Specified
Unique Features
  • 4 x EZ Debug LED
Bundled Software
  • Drivers
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

MSI PRO B760M-P, Intel B760 Chipset, LGA1700, DDR5, Micro ATX Desktop Motherboard

- Socket LGA1700, Intel B760 Chipset
- Supports 12th, 13th and 14th Gen Intel Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-6800 (OC)
- 1 x PCIe 4.0 x16 Slot
- 2 x PCIe 4.0 x1 Slots
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 1Gbps LAN
- 1 x HDMI 1.4, 1 x DisplayPort 1.4, 1 x D-Sub
- 1 x Rear USB Type-C 10Gb/s, 1 x Rear USB Type-A 5Gb/s
- 4 x Rear USB 2.0/1.1
- 2 x PS/2 Keyboard/Mouse Jacks
- 3 x Rear Audio Jacks
- Form Factor: Micro ATX
- 3 Year Warranty
