Images are for reference purposes only and product appearances/colours may vary.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer. Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again. Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s. MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.

CPU	LGA 1700 supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset	Intel Z790 Express Chipset
Memory	4 x DDR5, Maximum Memory Capacity 192GB Memory Support 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 6600+ MHz 1DPC 2R Max speed up to 6400+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI * Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz 1 x DisplayPort * Support DP 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
LAN	Realtek RTL8125GB 2.5Gbps LAN Supports 10 / 100 / 1Gbe / 2.5Gbe
Wireless Communication Module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Expansion Slots	CPU: 1 x PCI-E x16 slot * PCI_E1 Gen PCIe 5.0 supports up to x16 Chipset: 1 x PCI-E x16 slots * PCI_E3 Gen PCIe 4.0 supports up to x4 3 x PCI-E x1 slot * PCI_E2 Gen PCIe 3.0 supports up to x1 * PCI_E4 Gen PCIe 3.0 supports up to x1 * PCI_E5 Gen PCIe 3.0 supports up to x1
Storage Interface	CPU: 1 x M.2 Slot * M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices Chipset: 1 x M.2 slot * M.2_2 supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	Rear: 2 x USB 2.0 4 x USB 3.2 Gen1 Type A 1 x USB 3.2 Gen2x2 Type C Front: 4 x USB 2.0 4 x USB 3.2 Gen1 Type A
Internal I/O Connectors	1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 4 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x TBT connector (JTBT, supports RTD3) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 4 x USB 3.2 Gen1 Type A ports
Back Panel Connectors	1 x DisplayPort 1 x HDMI 2 x USB 2.0 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 1 x 2.5G LAN 5 x Audio Connectors 4 x USB 3.2 Gen 1 5Gbps (Type-A) 1 x S/PDIF-OUT
I/O Controller	Not Specified
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	Not Specified
Unique Features	4 x EZ Debug LED
Bundled Software	Drivers
Operating System	Support for Windows 10/11 64-bit
Form Factor	ATX Form Factor, 30.5cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

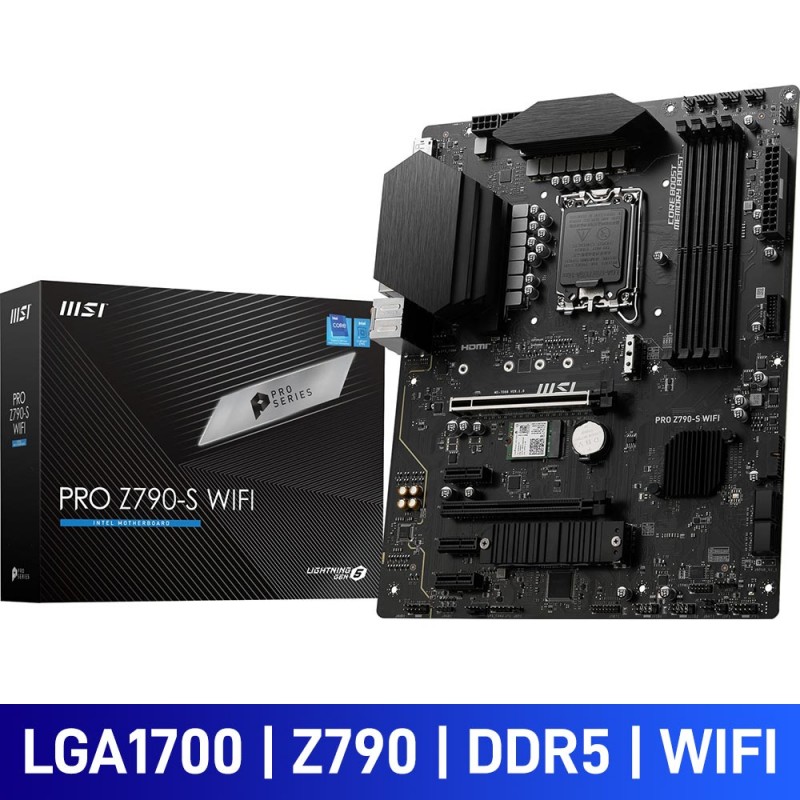

MSI PRO Z790-S WIFI, Intel Z790 Chipset, LGA1700, DDR5, ATX Desktop Motherboard

- Socket LGA1700, Intel Z790 Chipset
- Supports 12th, 13th and 14th Gen Intel Processors
- 4 x DDR5 DIMM Slots, Up To 192GB, DDR5-6600 (OC)
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 3.0 x16 Slot (x4 Electrical)
- 3 x PCIe 3.0 x1 Slot
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5Gbps LAN & Wi-Fi 6E
- 1 x Rear USB Type-C 20Gb/s
- 4 x Rear USB Type-A 5Gb/s
- Form Factor: ATX
- 3 Year Warranty

Product Code: 911-7D88-001
