Images are for reference purposes only and product appearances/colours may vary.

GIGABYTE motherboards are ready to support the latest AMD Ryzen 5000 Series Processors and are backwards compatible with AMD Ryzen 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable Armor for PCIe/ memory slots, USB Type-C interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems. GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system. AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS(on) MOSFETs design to support the 2nd Gen AMD Ryzen™ processors by offering incredible precision in developing power of the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. GIGABYTE' M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices. With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

CPU
  • Supports AMD Ryzen 5000 series processors / Ryzen 5000 G-Series / 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
(Please refer "CPU Support List" for more information.)
Chipset
  • AMD B450
Memory
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Support for DDR4 3600(O.C.) / 3466(O.C) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operates in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated in the New Generation AMD Ryzen with Radeon Graphics processors

  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.2.
    * Actual support may vary by CPU.

Maximum shared memory of 16 GB

Audio

Realtek Audio CODEC

  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LAN
  • Realtek GbE LAN chip (10/100/1000 Mbit)
Wireless Communication Module
  • None
Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

  • Actual support may vary by CPU.
  • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • The PCIEX16 slot conforms to PCI Express 3.0 standard.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

  • The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.

1 x PCI Express x1 slot

  • The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.
Multi-Graphics Technology
  • None
Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

6 x SATA 6Gb/s connectors

  • Support for RAID 0, RAID 1, and RAID 10
USB

Chipset:

  • 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
  • 2 x USB 3.1 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

CPU:

  • 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x M.2 Socket 3 connector
  • 6 x SATA 6Gb/s connectors
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 1 x RGB (RGBW) LED strip header
  • 2 x digital LED strip headers
  • 2 x digital LED strip power select jumpers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.1 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
  • 1 x serial port header
  • 1 x parallel port header
  • 1 x Clear CMOS jumper
Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 2 x USB 3.1 Gen 2 Type-A ports (red)
  • 4 x USB 3.1 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 6 x audio jacks
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  • 2 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    Smart Survey
    System Information Viewer
    USB Blocker
    V-Tuner
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton Internet Security (OEM version)
  • Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System
  • Support for Windows 10 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 24.4cm


Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

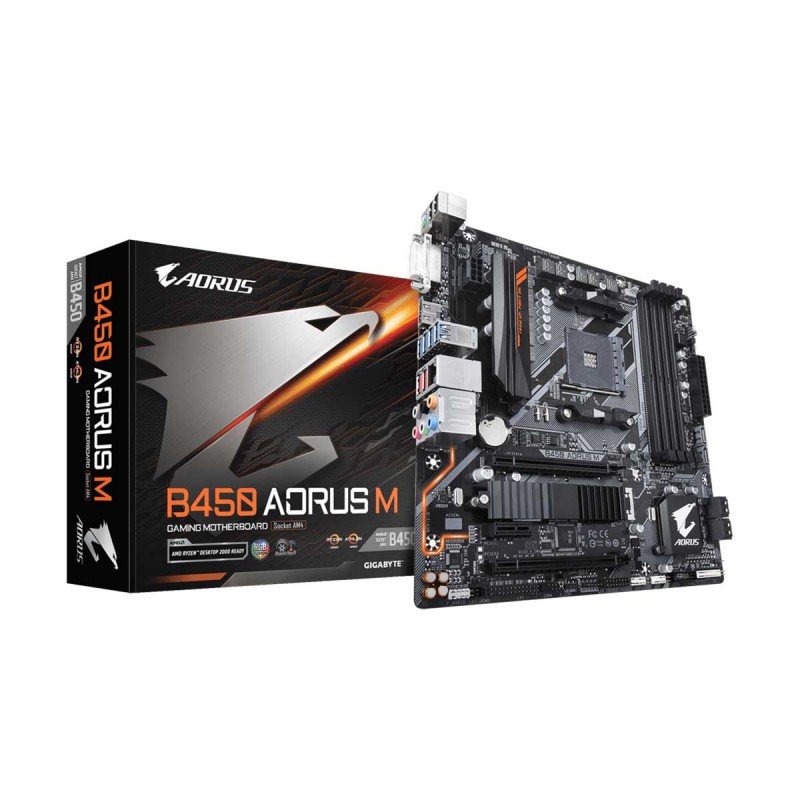

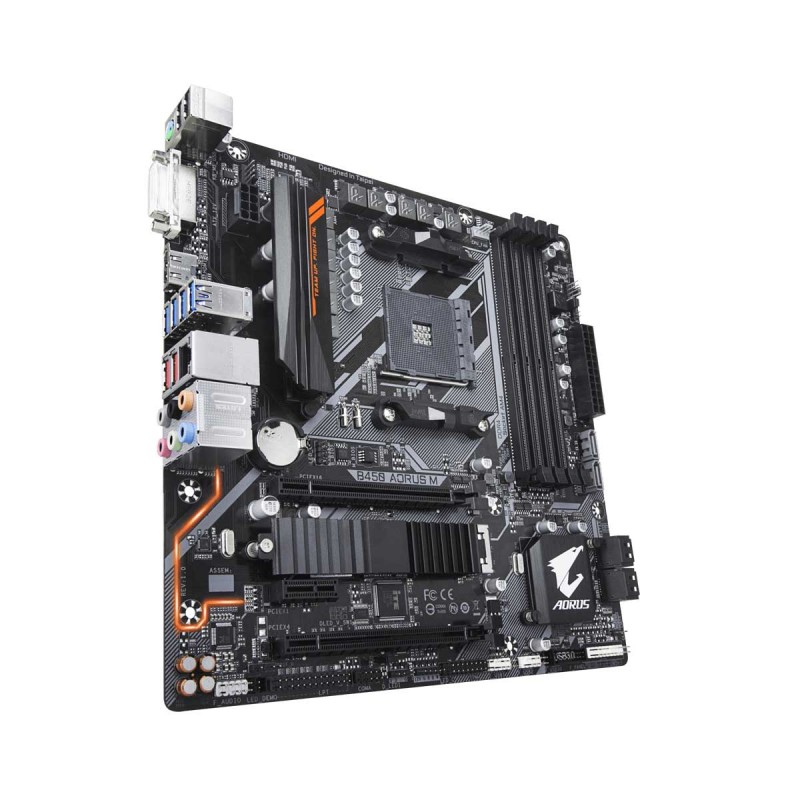

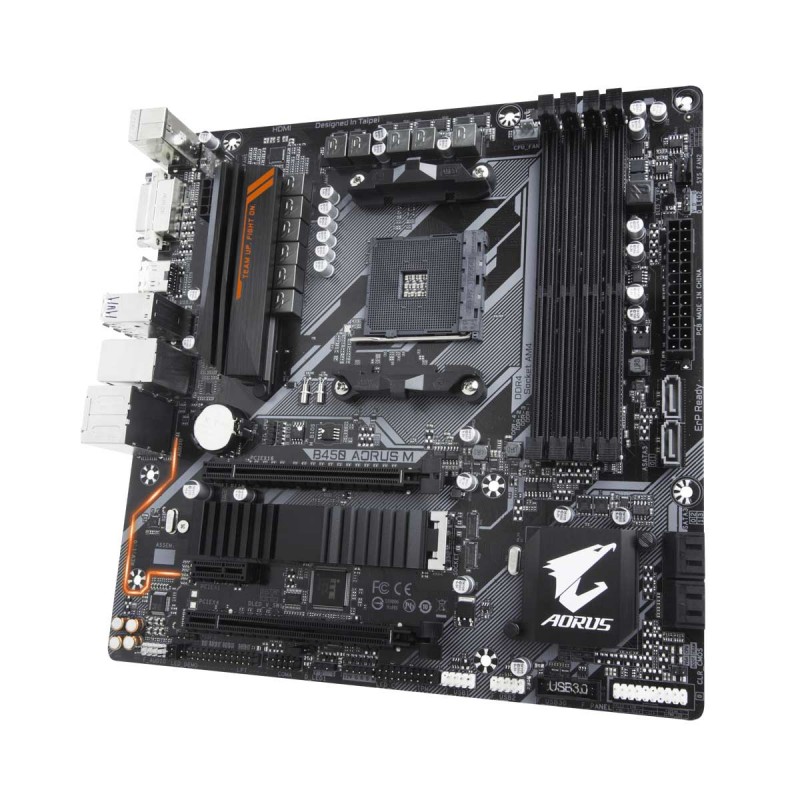

Gigabyte B450 AORUS M, AMD B450 Chipset, Socket AM4, Micro ATX Desktop Motherboard

  • Product Code: GA-B450-AORUS-M
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
OUT OF STOCK


Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
