PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

CPU
  • Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Processor socket LGA1700
Chipset
  • Intel B660 Express Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
    1DPC 1R Max speed up to 4600+ MHz
    1DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memoryy
  • Supports Intel Extreme Memory Profile (XMP)
Onboard Graphics

  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Audio

Realtek ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1 x Intel I219V 1Gbps LAN controller
Wireless Communication Module
  • None
Expansion Slots

1x PCIe x16 slot

  • Supports up to PCIe 4.0 x16

1x PCIe 3.0 x1 slot (Fom B660 chipset)

  • Supports PCIe 3.0 x1
Multi-Graphics Technology
  • Supports AMD CrossFire Technology
Storage Interface

4x SATA 6Gb/s ports

  • SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2_1 slot

1x M.2 slot (Key M)

  • M2_2 slot (From B660 chipset)
    Supports up to PCIe 3.0 x4
    Supports up to SATA 6Gb/s
    Supports 2242/ 2260/ 2280 storage devices
    Supports Intel Optane Memory

Supports Intel Smart Response Technology for Intel Core processors

USB

Intel B660 Chipset

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x TPM module connector
  • 1 x Clear CMOS jumper
Back Panel Connectors
  • 1 x HDMI
  • 1 x VGA
  • 1 x Keyboard / Mouse
  • 2 x USB 3.2 Gen 1 5Gbps Type-A
  • 1 x LAN port
  • 3 x Audio connector
  • 4 x USB 2.0
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • Not Specified
Unique Features
  • 4 x EZ Debug LED
Bundled Software
  • Driver Disc
Operating System
  • Support for Windows 10/11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 21.1cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

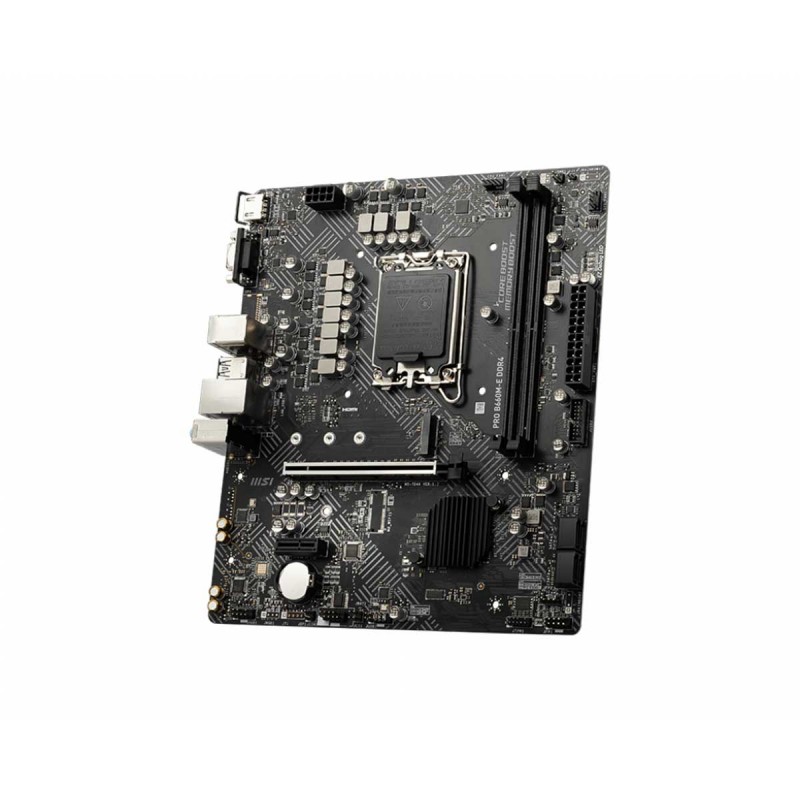

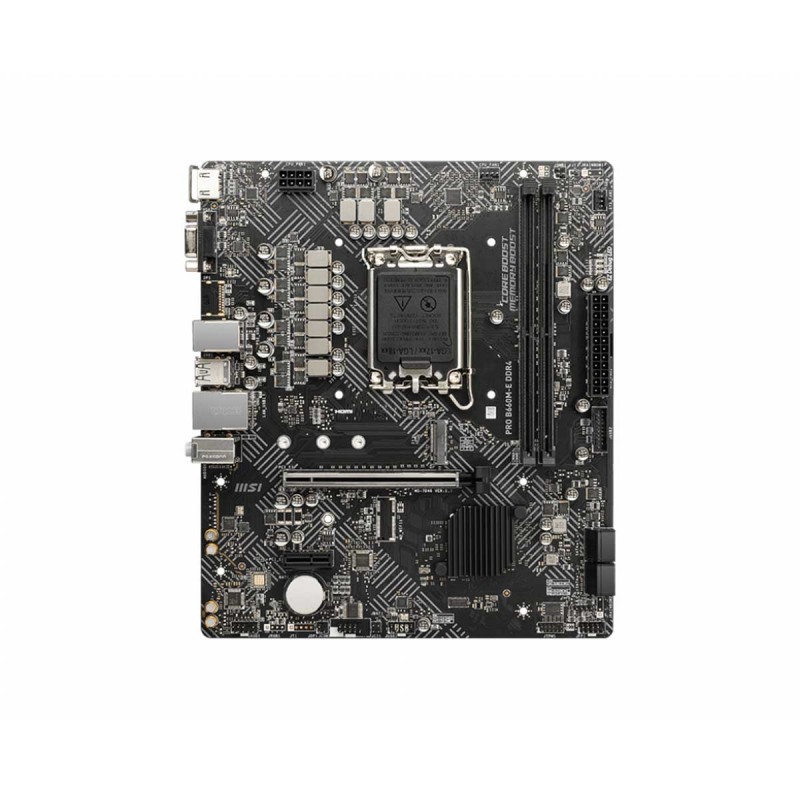

MSI PRO B660M-E DDR4, Intel B660 Chipset, LGA1700, DDR4, Micro ATX Desktop Motherboard
