AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. The AI model, trained by AI TOP on diverse overclocking datasets, improves precision and stability while optimizing performance. This model serves as the core of AORUS AI Snatch software. Better Play AORUS Series, steady power keeps your gaming smooth. AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

CPU

Intel Socket LGA1851

  • Support for Intel Core Ultra Processors
ChipsetIntel Z890 Express Chipset
Memory

4 x DIMM slots, max. 256GB, DDR5

  • Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • Support CUDIMM memory module
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
    • Support for DisplayPort 2.1 version
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    • Support for DisplayPort 2.1 version
  • 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
    • Support for HDMI 1.4 version
Audio

Realtek Audio CODEC

  • High Definition Audio
  • 2/4/5.1/7.1-channel
    • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
LAN

Realtek 2.5GbE LAN chip

  • 2.5 Gbps / 1 Gbps / 100 Mbps
Wireless Communication Module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • Support for 11be 160MHz wireless standard

Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)

  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • Support for 11be 160MHz wireless standard

Bluetooth 5.4

Expansion Slots

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    • The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

CPU:

  • 1 x USB4 USB Type-C port on the back panel

Chipset:

  • 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only)
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  • 1 x HDMI port(Note)
  • 1 x power button
  • 1 x reset button
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

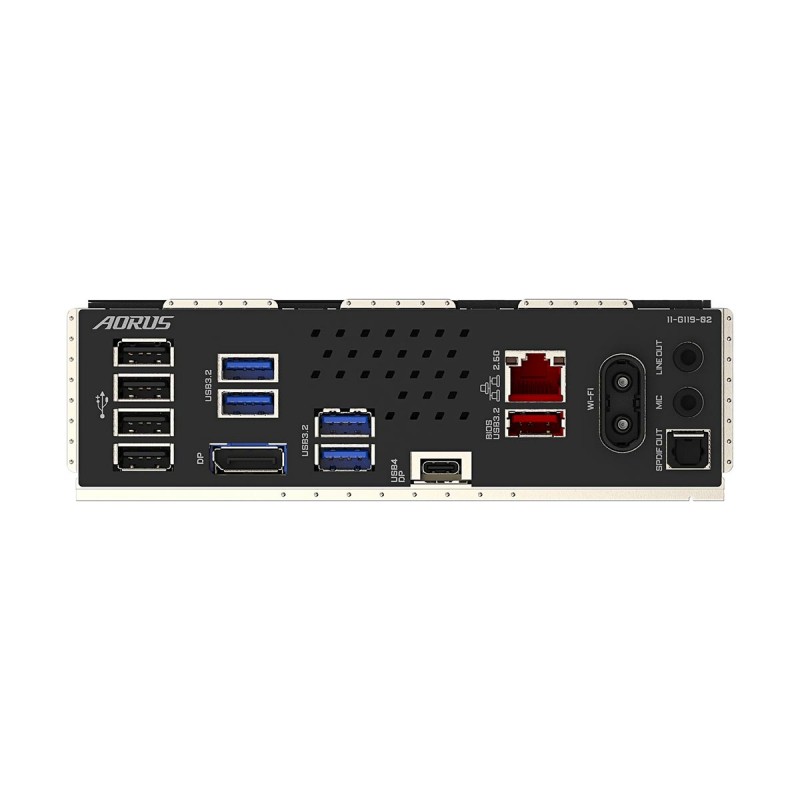

Back Panel Connectors
  • 1 x USB4 USB Type-C port (DisplayPort)
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 2 x antenna connectors (2T2R)
  • 1 x DisplayPort
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS

1 x 256 Mbit flash

  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)

  • Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

  • Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

Micro ATX Form Factor

  • 24.4cm x 24.4cm
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

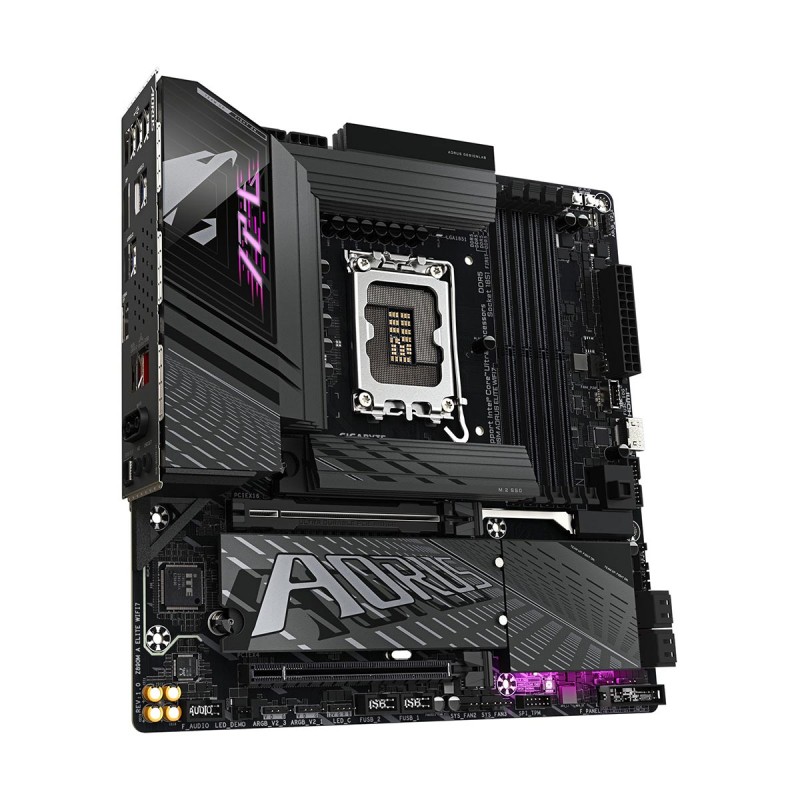

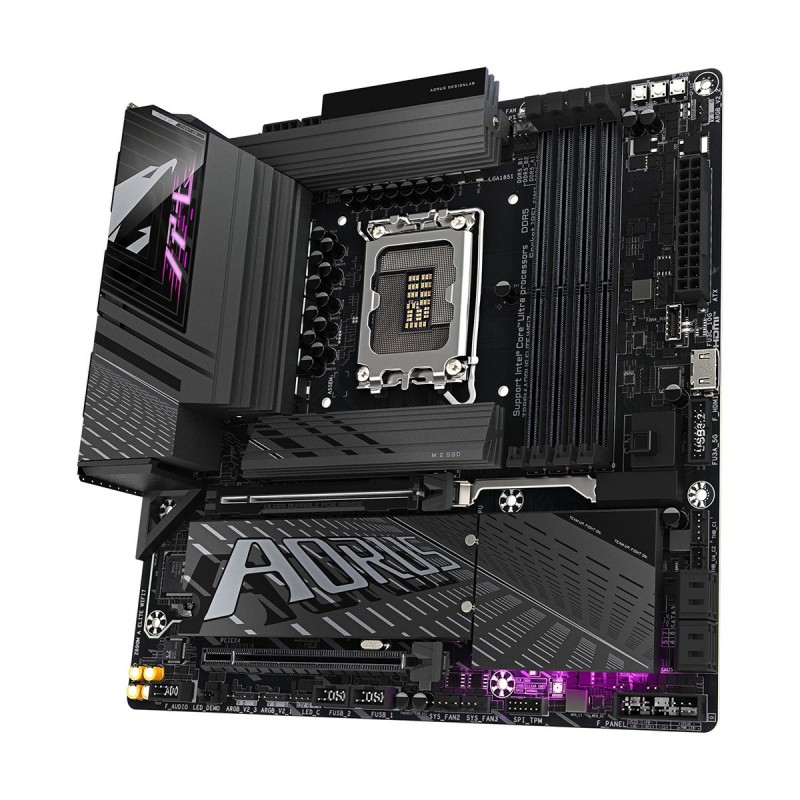

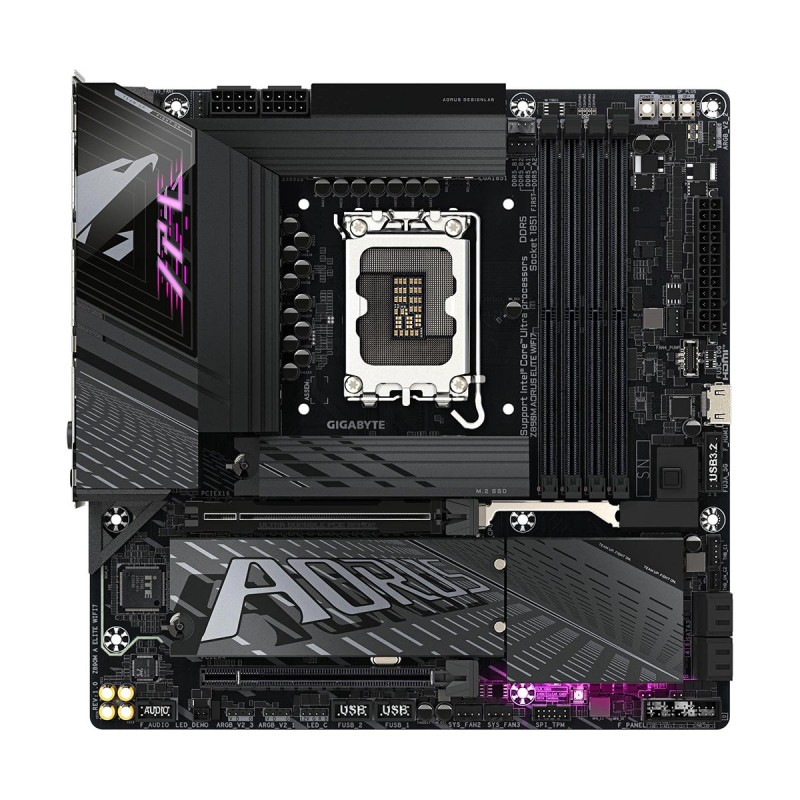

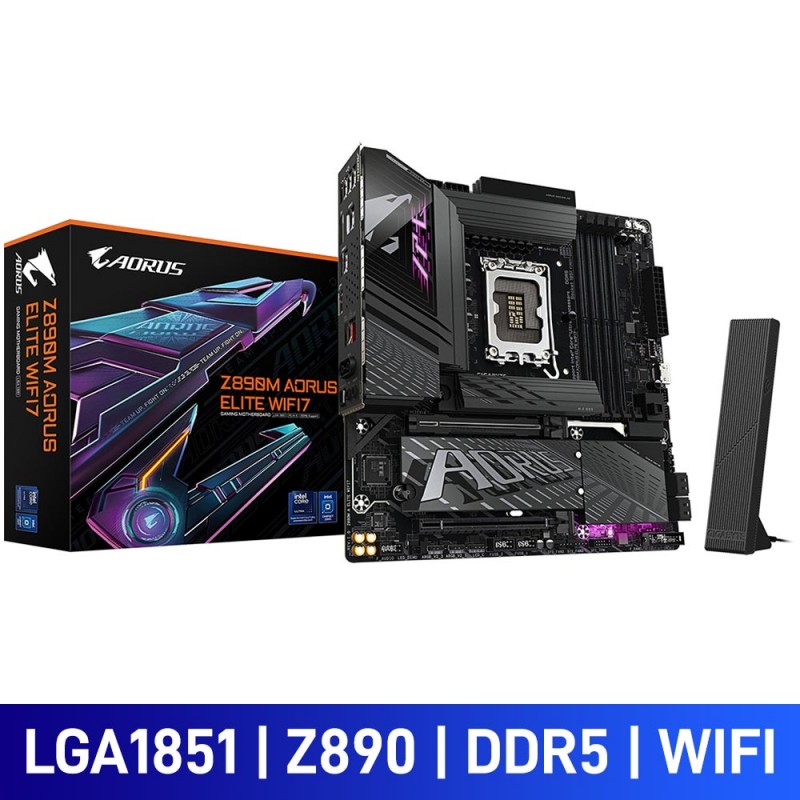

Gigabyte Z890M AORUS ELITE WIFI7, Intel Z890 Chipset, LGA1851, DDR5, Micro ATX Desktop Motherboard

- Socket LGA1851, Intel Z890 Chipset
- Supports Intel Core Ultra (Series 2) Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-9200+ (OC)
- Supports CUDUMM Memory Modules
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 Electrical)
- 1 x M.2 PCIe 5.0 NVMe Slots
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 2.5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4
- 1 x Front HDMI 1.4, 1 x Type-C DP, 1 x DisplayPort 2.1
- 1 x Rear USB 4.0 Type-C 40Gb/s
- 1 x Rear USB Type-A 10Gb/s, 4 x Rear USB Type-A 5Gb/s
- 4 x Rear USB 2.0/1.1
- 2 x Rear Audio Jacks, 1 x Optical S/PDIF Out
- M.2 EZ-Latch Click & EZ-Latch Plus
- PCIe EZ-Latch Plus & Wi-Fi EZ-Plug
- Integrated RGB Lighting & 3 x ARGB Gen2 Headers
- Form Factor: Micro ATX
- 3 Year Warranty

  • Product Code: GA-Z890M-A-ELITE-WIFI7
