The B860M GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

CPU	Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2) Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B860 Express Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 8800+ MT/s 1DPC 2R Max speed up to 7200+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1 x Type-C DisplayPort Thundebolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	Intel Killer E5000 5Gbps LAN 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps
Wireless Communication Module	Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports MLO, 4KQAM Bluetooth 5.4
Expansion Slots	4 x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage Interface	3 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4 x SATA 6G Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	Rear: 2 x USB 2.0 2 x USB 5Gbps Type A 1 x USB 5Gbps Type C 1 x USB 10Gbps Type A Front: 4 x USB 2.0 4 x USB 5Gbps Type A 1 x USB 10Gbps Type C
Internal I/O Connectors	1 x Thunderbolt5 card connector(JTBT5, support RTD3) 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 3 x System Fan 1 x EZ Conn-header (JAF_1) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 10Gbps Type C ports

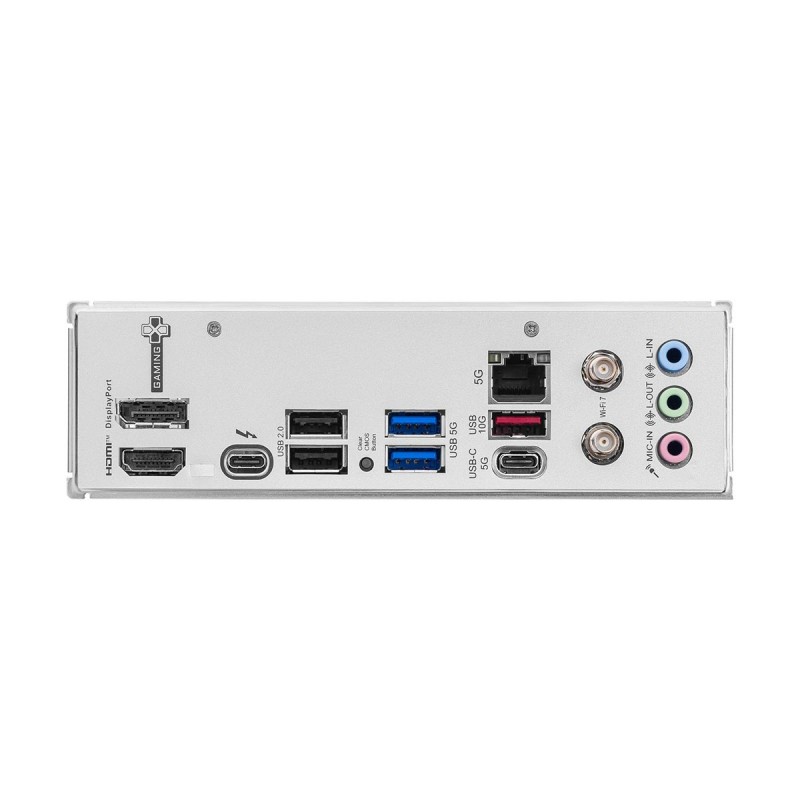

Back Panel Connectors	1 x Display Port 1 x Clear CMOS Button 1 x 5G LAN 2 x Wi-Fi / Bluetooth 3 x Audio Connectors 1 x HDMI 1 x Thunderbolt 4 40Gbps (Type-C) 2 x USB 2.0 2 x USB 5Gbps (Type-A) 1 x USB 5Gbps (Type-C) 1 x USB 10Gbps (Type-A)
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control
BIOS	Not Specified
Unique Features	4 x EZ Debug LED
Bundled Software	Drivers
Operating System	Support for Windows 11 64-bit
Form Factor	Micro ATX Form Factor 24.4cm x 24.4cm

Manufacturer
Manufacturer's Website	Link *
Product Website	Link *
Warranty Information
Warranty Duration	3 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

MSI B860M GAMING PLUS WIFI, Intel B860 Chipset, LGA1851, DDR5, Micro ATX Desktop Motherboard

- Socket LGA1851, Intel B860 Chipset
- Supports Intel Core Ultra (Series 2) Processors
- 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8800+ (OC)
- Supports CUDIMM Memory Modules
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 Slot (x4 Electical)
- 2 x PCIe 4.0 x16 Slots (x1 Electrical)
- 1 x M.2 PCIe 5.0 NVMe Slot
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA Ports with RAID 0/1/5/10
- 5Gbps LAN, 2.5Gbps LAN & Wi-Fi 7
- 1 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x Thunderbolt DP
- 1 x Rear Thunderbolt 4 / USB 4.0 Type-C 40Gb/s
- 1 x Rear USB Type-C 10Gb/s
- 1 x Rear USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
- 2 x USB 2.0/1.1
- 3 x Rear Audio Jacks
- EZ PCIe CLIP II Quick-Release Mechanism
- EZ M.2 CLIP II Tool-Less M.2 SSD Installation
- EZ M.2 Shield Frozr II
- EZ Debug LED
- EZ Antenna Quick-Release Wi-Fi Antenna
- 2 x ARGB Gen2 Headers
- Form Factor: Micro ATX
- 3 Year Warranty

Product Code: 7E42-003R
Availability: In Stock Lead Times:

In Stock with Progenix: Ready for collection/dispatch once payment clears

In Stock: 1-3 working days until dispatched or ready for collection

Out Of Stock: Contact us to see if this item will be restocked.

R3,770

Qty

Price displayed is already subject to a 4% discount for EFT payments
