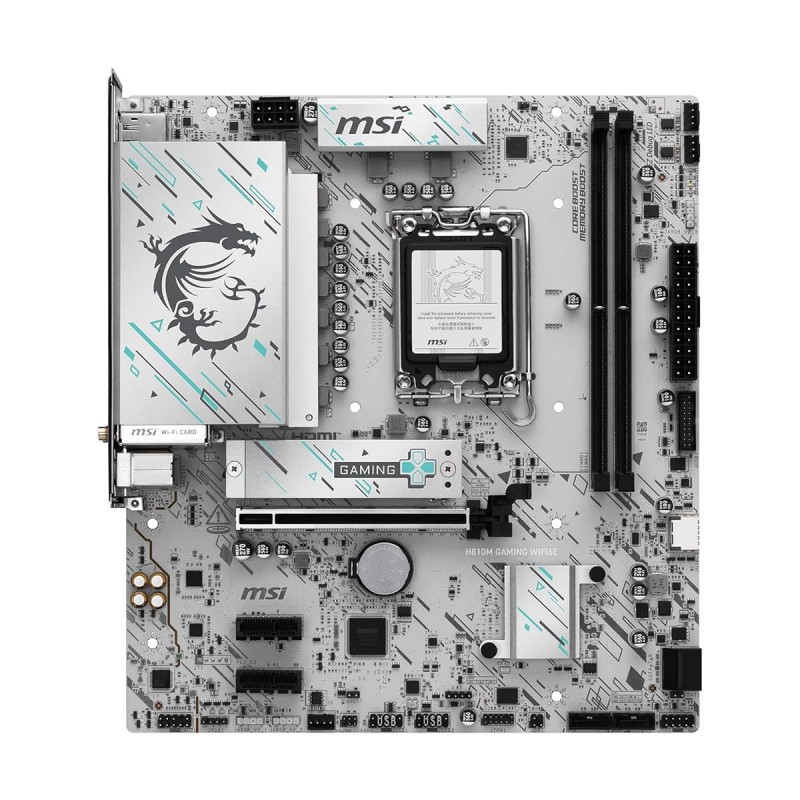

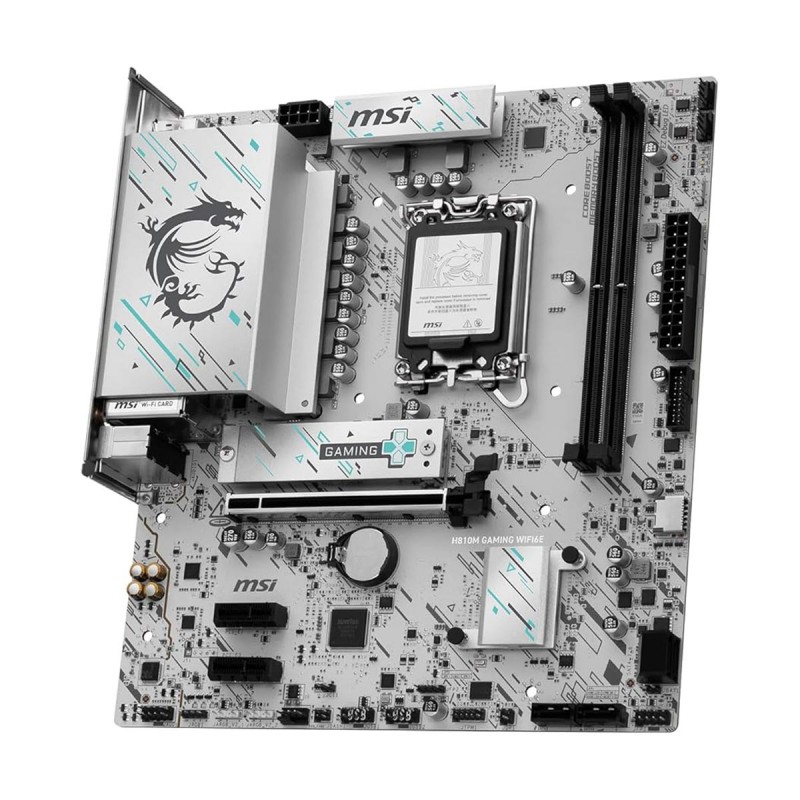

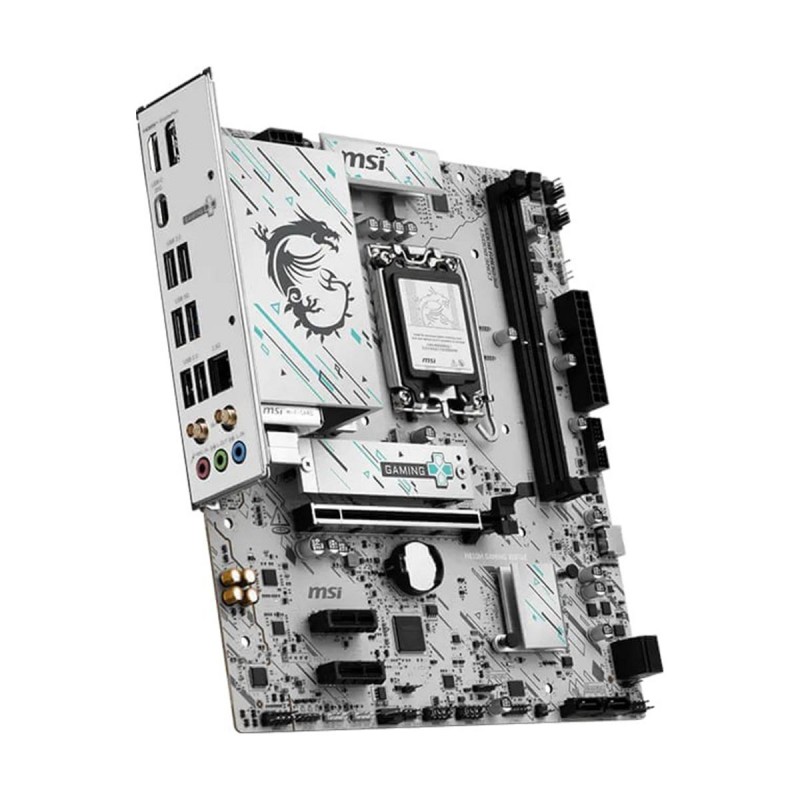

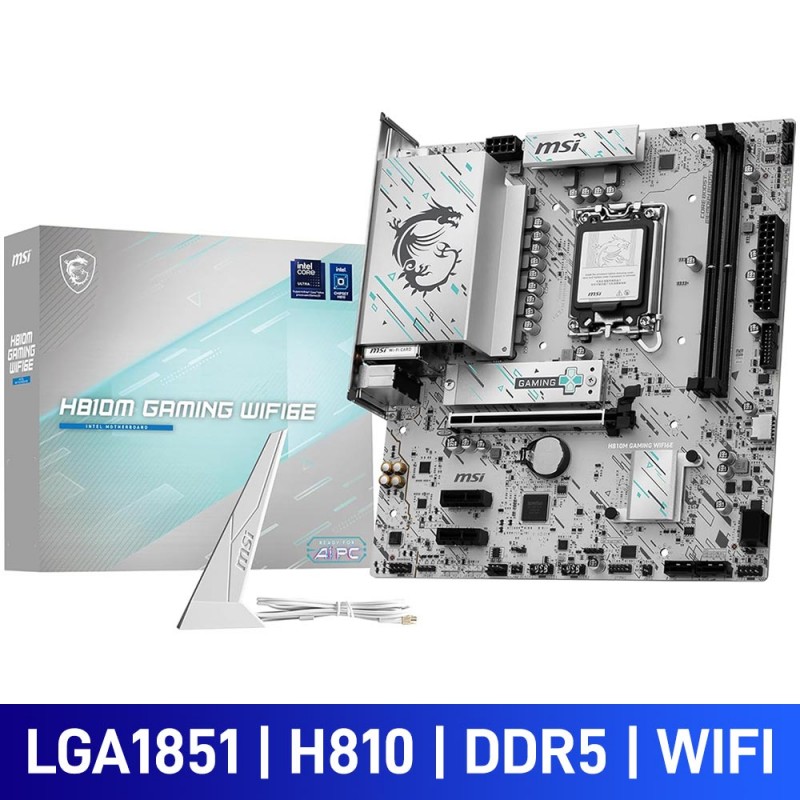

The H810M GAMING WIFI6E motherboard features a sleek, cyber-inspired pattern with teal and black geometric accents on a silver base. Featuring USB 20G Type-C port, Wi-Fi 6E, 2.5G LAN, PCIe 5.0 solution and M.2 Shield Frozr, ready for Intel Core Ultra processors. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

CPU

Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2)

  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel H810 Express Chipset
Memory

2 x DIMM slots, max. 128GB, DDR5

  • Memory Support DDR5 6400 - 4800 (JEDEC) MT/s
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6400 MT/s
    • 1DPC 2R Max speed up to 6400 MT/s
  • Supports Intel POR Speed and JEDEC Speed
  • Supports Intel XMP 3.0
  • Supports Dual-Controller Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x HDMI
    • Support HDMI 2.1, maximum resolution of 4K 60Hz
  • 1x DisplayPort
    • Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Audio

Realtek ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN

Realtek 8125 2.5Gbps LAN

  • 2.5 Gbps / 1 Gbps / 100 Mbps
Wireless Communication Module

Wi-Fi 6E module

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

Expansion Slots

1 x PCI-E x16 slot

  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

2 x PCI-E x1 slos

  • PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage Interface

1 x M.2

  • M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4 x SATA 6G

USB

Rear:

  • 4 x USB 2.0
  • 2 x USB 5Gbps Type A
  • 1 x USB 20Gbps Type C

Front:

  • 4 x USB 2.0
  • 2 x USB 5Gbps Type A
  • 1 x USB 10Gbps Type C
Internal I/O Connectors

  • 1 x Power Connector(ATX_PWR)
  • 1 x Power Connector(CPU_PWR)
  • 1 x CPU Fan
  • 2 x System Fan
  • 2 x Front Panel (JFP)
  • 1 x Chassis Intrusion (JCI)
  • 1 x Front Audio (JAUD)
  • 1 x Tuning Controller connector(JDASH)
  • 3 x Addressable V2 RGB LED connector (JARGB_V2)
  • 1 x RGB LED connector(JRGB)
  • 1 x TPM pin header(Support TPM 2.0)
  • 4 x USB 2.0 ports
  • 2 x USB 5Gbps Type A ports
  • 1 x USB 10Gbps Type C ports
Back Panel Connectors
  • 1 x DisplayPort
  • 2 x USB 2.0
  • 2 x USB 5Gbps (Type-A)
  • 1 x 2.5G LAN
  • 2 x Wi-Fi / Bluetooth
  • 1 x HDMI
  • 1 x USB 20Gbps (Type-C)
  • 3 x Audio connectors
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
BIOSNot Specified
Unique Features

  • 4 x EZ Debug LED
  • 1 x EZ Memory Detection LED
Bundled Software

  • Drivers
Operating SystemSupport for Windows 11 64-bit
Form Factor

Micro ATX Form Factor

  • 24.4cm x 22.0cm
Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

MSI H810M GAMING WIFI6E, Intel H810 Chipset, LGA1851, DDR5, Micro ATX Desktop Motherboard

- Socket LGA1851, Intel H810 Chipset
- Supports Intel Core Ultra (Series 2) Processors
- 2 x DDR5 DIMM Slots, up to 128GB, DDR5-6400
- Supports CUDIMM Memory Modules
- 1 x PCIe 5.0 x16 Slot
- 2 x PCIe 4.0 x1 Slots
- 1 x M.2 PCIe 4.0 NVMe Slot
- 4 x SATA Ports
- 2.5Gbps LAN, Wi-Fi 6E & Bluetooth 5.3
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 2 x Rear USB Type-A 5Gb/s
- 3 x Rear Audio Jacks
- EZ PCIe CLIP II Quick-Release Mechanism
- EZ M.2 CLIP II Tool-Less M.2 SSD Installation
- EZ Antenna Quick-Rlease Mechanism
- EZ Debug LED & EZ Memory Detection LED
- 3 x ARGB Gen2 Headers
- Form Factor: Micro ATX
- 3 Year Warranty

  • Product Code: H810M GAMING WIFI6E
  • Availability: In Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.

  • R3,029



Price displayed is already subject to a 4% discount for EFT payments

0 reviews / Write a review
