• Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron Processors


• Intel B560 Express Chipset


• 4 x DDR4 memory slots, support up to 128GB

• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)

• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
• Max overclocking frequency:
  1DPC 1R Max speed up to 5066 MHz
  1DPC 2R Max speed up to 4600+ MHz
  2DPC 1R Max speed up to 4266+ MHz
  2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
  * Available only on processors featuring integrated graphics.
  * Graphics specifications may vary depending on the CPU installed.

• Realtek ALC897 Codec
  7.1-Channel High Definition Audio
  Supports S/PDIF output

• 1x Realtek RTL8125B 2.5Gbps LAN controller

• 1x Intel I219V 1Gbps LAN controller

• N/A

• 2x PCIe x16 slots

• PCI_E1 (from CPU)
  Support up to PCIe 4.0 for 11th Gen Intel CPU
  Support up to PCIe 3.0 for 10th Gen Intel CPU
• PCI_E2 (from B560 chipset)
  Support up to PCIe 3.0 x4
• 1x PCIe 3.0 x1 slot (from B560 chipset)

• Supports 2-Way AMD CrossFire Technology


Chipset:

• 6x SATA 6Gb/s ports (from B560 chipset)

• 3x M.2 slots (Key M)
• M2_1 slot (from CPU)
  Available only on 11th Gen Intel CPU
  Supports up to PCIe 4.0 x4
  Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 slot (from B560 chipset)
  Supports up to PCIe 3.0 x4
  Supports SATA up to 6Gb/s
  Supports 2242/ 2260/ 2280 storage devices
• M2_3 slot (from B560 chipset)
  Supports up to PCIe 3.0 x4
  Supports 2242/ 2260/ 2280 storage devices
• Intel Optane Memory Ready
• Supports Intel Smart Response Technology for Intel Core processors
• SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
• Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Intel B560 Chipset

• 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
• 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
• 4x USB 2.0 ports on the back panel

Hub-GL850G

• 4x USB 2.0 ports available through the internal connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 3 x M.2 slots (M-Key)
• 1 x USB 3.2 Gen 2 10Gbps Type-C port
• 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump fan connector
• 5 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x TPM module connector
• 1 x TBT connector (supports RTD3)
• 1 x Tuning Controller connector

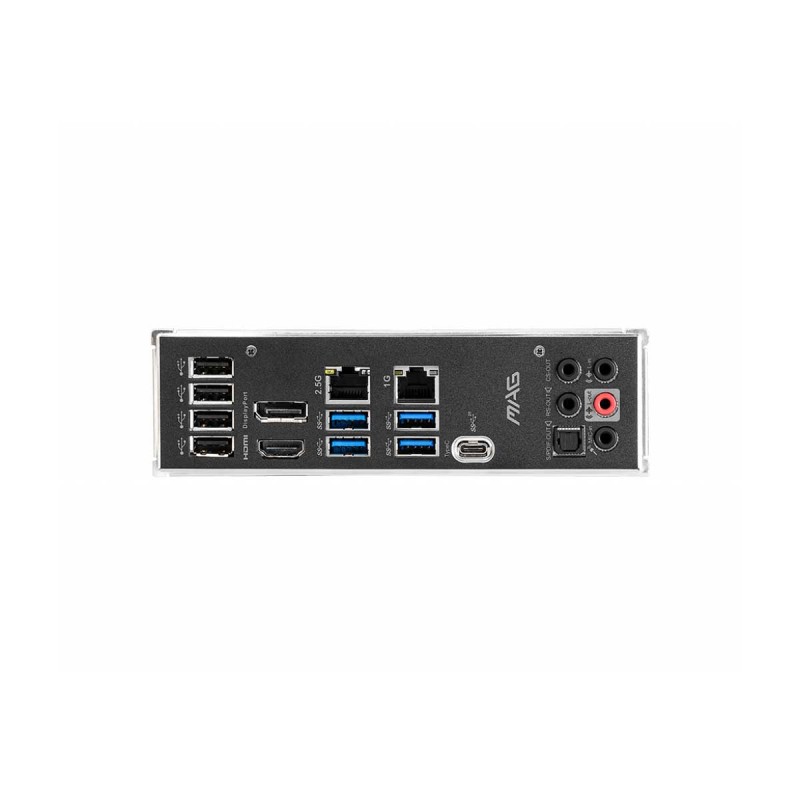

• 4 x USB 2.0

• 1 x DisplayPort
• 1 x 2.5G LAN Port
• 1 x Gigabit LAN Port
• 5 x HD Audio Connectors
• 1 x HDMI
• 4 x USB 3.2 Gen 1 5Gbps Type-A
• 1 x USB 3.2 Gen 2x2 20Gbps Type-C
• 1 x Optical S/PDIF OUT

• N/A

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• N/A

• N/A

• Driver Disc

• Support for Windows 10 64-bit

• ATX Form Factor, 30.5cm x 24.4cm
