GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/ Intel XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard. Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

CPU
  • AMD Socket AM5, support for AMD Ryzen 7000 / 8000 / 9000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
  • AMD A620
Memory
  • Support for DDR5 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor:

  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    • Support for DisplayPort 1.4 version.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • Support for HDMI 2.1 version and HDCP 2.3.
    • Support for native HDMI 2.1 TMDS compatible ports.
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

(Graphics specifications may vary depending on CPU support.)

Support for up to 3 displays at the same time

Audio

Realtek Audio CODEC

  • High Definition Audio
  • 2/4/5.1/7.1-channel
    • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN

Realtek GbE LAN chip

1 Gbps/100/10 Mbps

Wireless Communication Module

None

Expansion Slots

CPU:

  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    • AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
    • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    • The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface

CPU:

  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
    • AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

Chipset

  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 port on the back panel
  • 1 x USB 2.0/1.1 port on the back panel

Chipset:

  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x addressable LED strip header
  • 1 x RGB LED strip header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x Clear CMOS jumper
Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x USB Type-C port, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 port
  • 4 x USB 2.0/1.1 ports
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x D-Sub port
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
    • Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
    • Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
Bundled Software
  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor
  • Micro ATX Form Factor, 24.4cm x 24.4cm

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

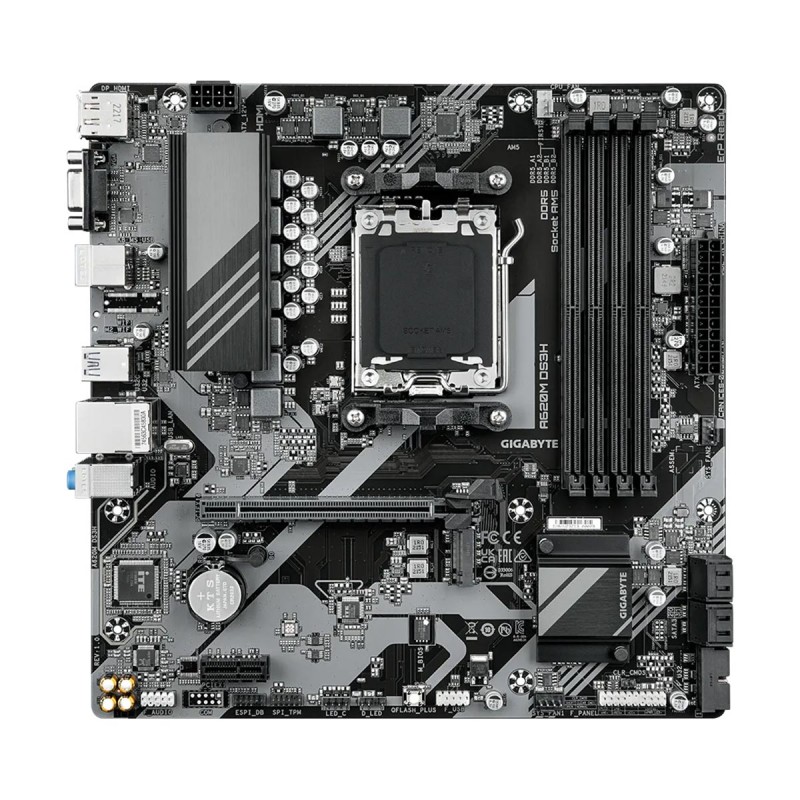

Gigabyte A620M DS3H, AMD A620 Chipset, Socket AM5, Micro ATX Desktop Motherboard

- Socket AM5, AMD A620 Chipset Motherboard
- Supports AMD Ryzen 7000, 8000 & 9000 Series Processors
- 4 x DDR5 DIMM Slots, Up To 192GB DDR5-7600 (OC)
- 1 x PCIe 4.0 x16 Slot
- 1 x PCIe 3.0 x1 Slot
- 1 x M.2 2580 / 2280 PCIe 4.0 NVMe Slot
- 4 x SATA Ports with RAID 0/1/10
- Gigabit LAN
- 1 x Rear USB Type-C 5Gb/s
- 1 x Rear USB Type-A 5Gb/s
- Form Factor: Micro ATX
- 3 Year Warranty
