Images are for reference purposes only and product appearances/colours may vary.

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads. Extended heatsink allows air to pass through, providing better heat dissipation.

Like armor, the exterior features a multi-layered structure combined with varied surface material finishes. Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER. Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity. The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience. When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

Graphics ProcessingGeForce RTX 5060
Core Clock2595 MHz (Reference Card: 2497 MHz)
CUDA Cores3840
Ray Tracing Cores30
Tensor Cores120
Streaming Multi-Processors30
Memory Clock28000 MHz
Memory Size8 GB
Memory TypeGDDR7
Memory Bus128 bit
Memory Bandwidth (GB/sec)448 GB/s
Card BusPCI-E 5.0 x16
Digital max resolution7680 x 4320
Multi-view4
Card size281 x 119 x 40 mm
PCB FormATX
DirectX12 Ultimate
OpenGL4.6
Recommended PSU500w
Power Connectors1 x 8-pin
Output3 x DisplayPort 2.1b
1 x HDMI 2.1b
Multi-GPU SupportNo
AccessoriesQuick Guide

Manufacturer
Manufacturer's WebsiteLink *
Product WebsiteLink *
Warranty Information
Warranty Duration3 Years
* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Note: HTML is not translated!
    Bad           Good

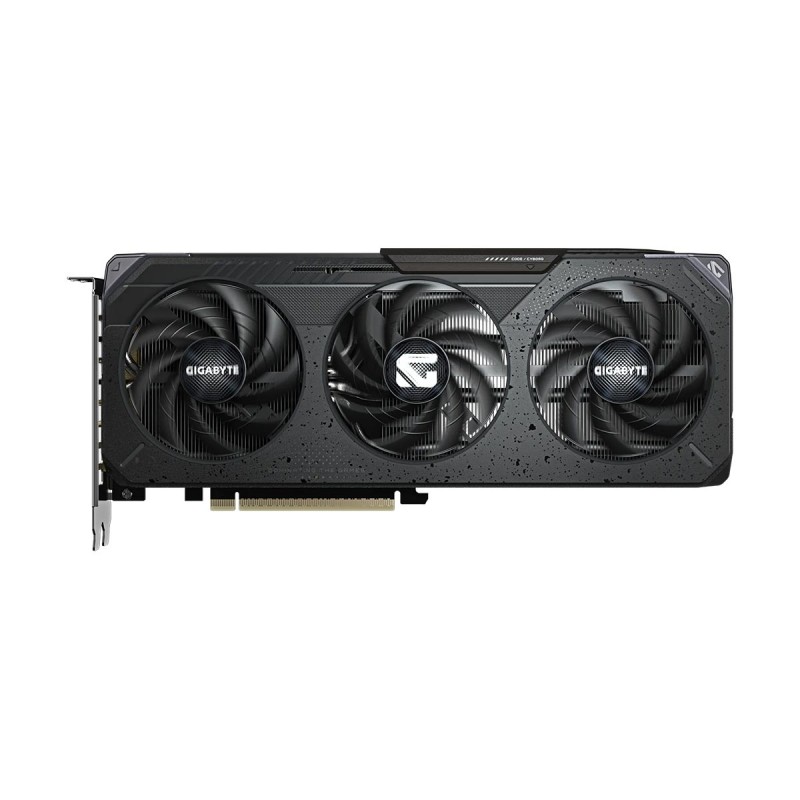

Gigabyte GeForce RTX 5060 GAMING OC 8G Graphics Card, 8GB

- NVIDIA GeForce RTX 5060 Graphics Processor
- Base Clock: 2280 MHz
- Boost Clock: Up to 2595 MHz
- CUDA Cores: 3,840 Cores
- 4th Gen Ray Tracing Cores: 30 Ray Tracing Cores
- 5th Gen Tensor Cores: 120 Tensor Cores
- Memory: 8GB GDDR7
- Effective Memory Clock: 28,000 MHz
- NVIDIA RTX Real Time Ray Tracing
- DLSS 4 AI Rendering Technology
- Reinforced Structure with Metal Backplate
- Server-Grade Thermal Gel
- Dual BIOS (Performance / Silent Mode)
- 16.7 Million Colour RGB Lighting

- 3 x DisplayPort 2.1b, 1 x HDMI 2.1b, Maximum 4 Displays
- PCIe 8-Pin Power Connector
- Power Indicator LED
- 3 Year Warranty

  • Product Code: GV-N5060GAMING OC-8GD
  • Availability: In Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears
    • In Stock: 1-3 working days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
  • R9,299
  • R8,299



Price displayed is already subject to a 4% discount for EFT payments
