Images are for reference purposes only and product appearances/colours may vary.

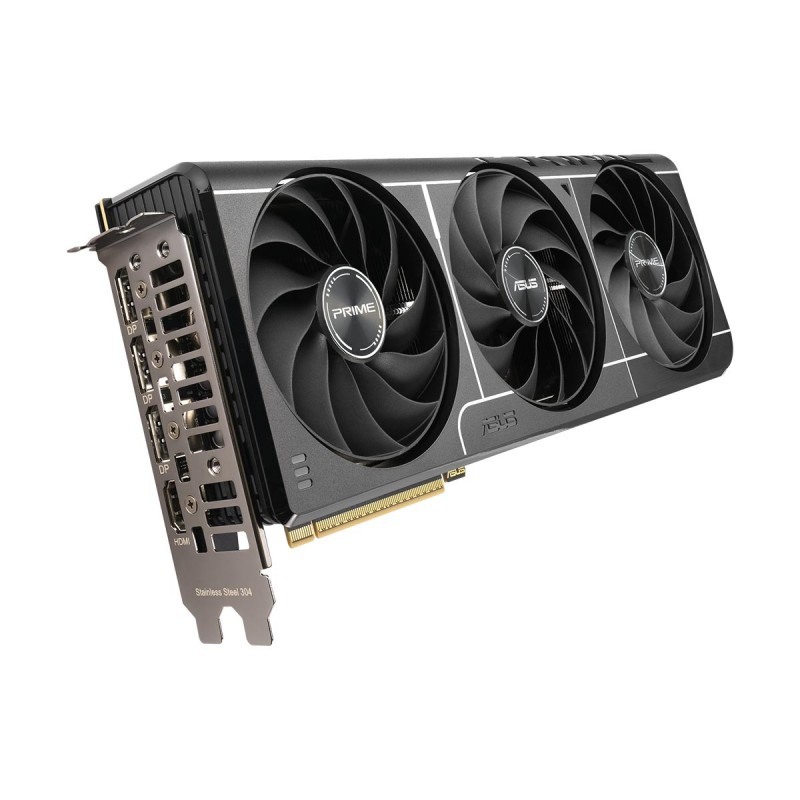

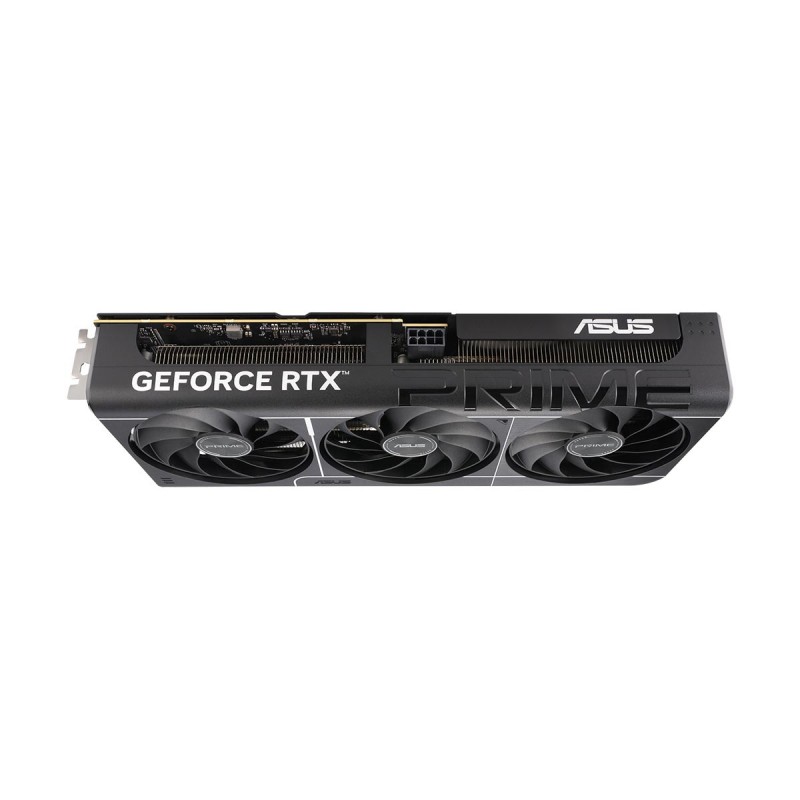

Experience Primal performance with the Prime GeForce RTX 5060 Ti, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling. You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build. The Prime RTX 5060 Ti features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance. Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling. ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks. The PCB is reinforced by a metal backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.
| Graphics Processing | GeForce RTX 5060 Ti |
| Core Clock | OC Mode: 2647 MHz (Reference Card: 2572 MHz) Default Mode: 2617 MHz (Reference Card: 2572 MHz) |
| CUDA Cores | 4608 |
| Ray Tracing Cores | 36 |
| Tensor Cores | 144 |
| Streaming Multi-Processors | 36 |
| Memory Clock | 28000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128 bit |
| Memory Bandwidth (GB/sec) | 448 GB/s |
| Card Bus | PCI-E 5.0 x16 |
| Digital max resolution | 7680 x 4320 |
| Multi-view | 4 |
| Card size | 304 x 120 x 50 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 550w |
| Power Connectors | 1 x 8-pin |
| Output | 3 x DisplayPort 2.1b 1 x HDMI 2.1b |
| Multi-GPU Support | No |
| Accessories | Speedsetup Manual ASUS Velcro Hook & Loop Thank You Card |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |
ASUS PRIME GeForce RTX 5060 Ti OC Edition 8GB GDDR7 Graphics Card, 8GB
- NVIDIA GeForce RTX 5060 Ti Graphics Processor
- Base Clock: 2407 MHz
- Boost Clock: Up to 2647 MHz
- CUDA Cores: 4,608 Cores
- 4th Gen Ray Tracing Cores: 36 Ray Tracing Cores
- 5th Gen Tensor Cores: 144 Tensor Cores
- Memory: 8GB GDDR7
- Effective Memory Clock: 28,000 MHz
- NVIDIA RTX Real Time Ray Tracing
- DLSS 4 AI Rendering Technology
- Vented Metal Backplate
- Dual BIOS (Performance / Quiet Mode)
- NVIDIA SFF-Ready
- 3 x DisplayPort 2.1b, 2 x HDMI 2.1b, Maximum 4 Displays
- 1 x PCIe 8-Pin Power Connector
- 3 Year Warranty
- Product Code: 90YV0MP0-M0NA00
