Images are for reference purposes only and product appearances/colours may vary.

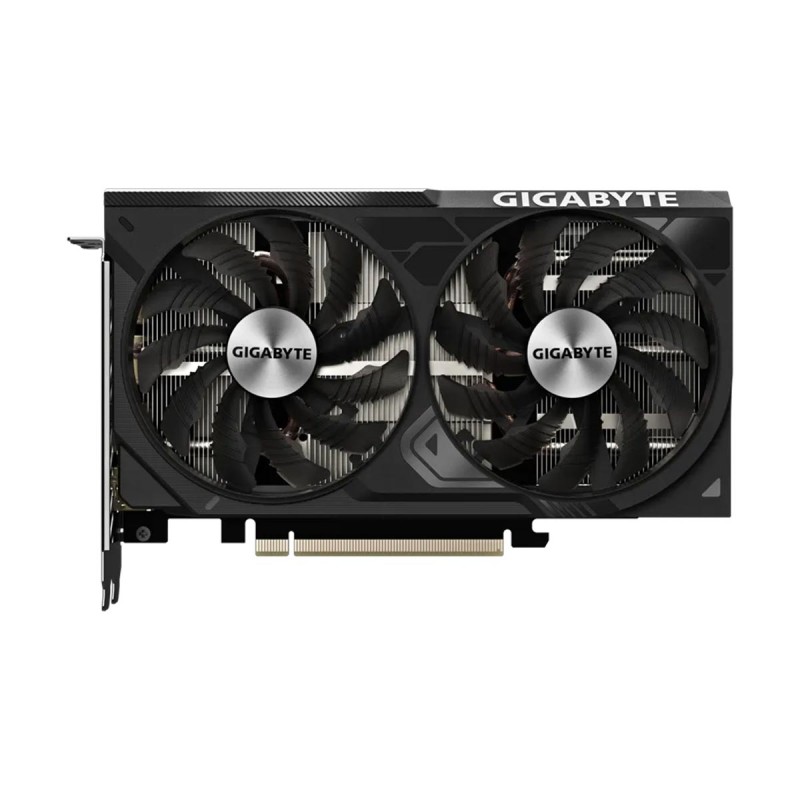

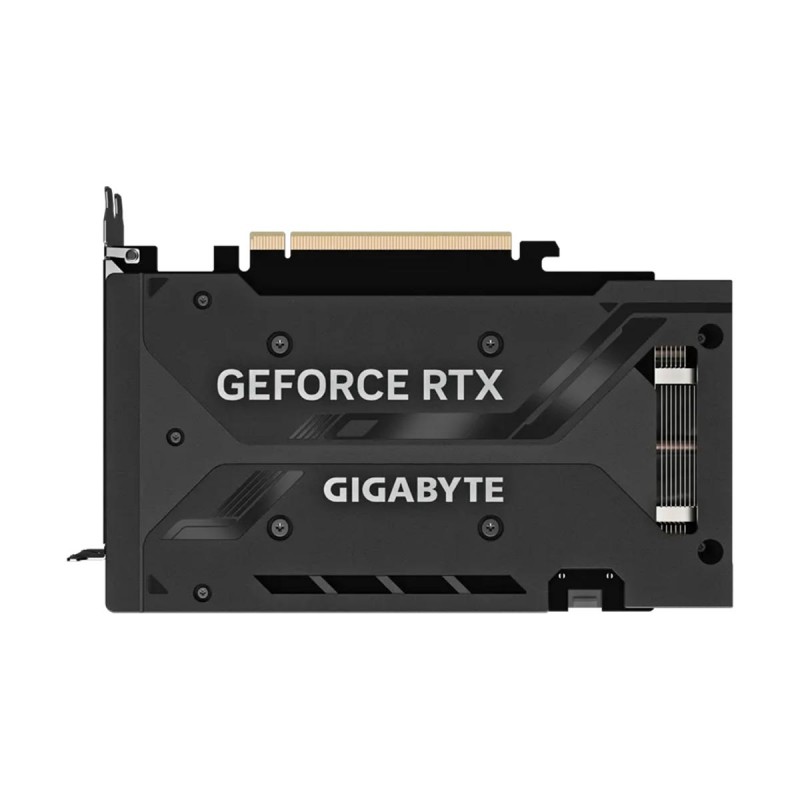

The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. Reduce the turbulence of adjacent fans and increase airflow pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. Extended heatsink allows air to pass through, providing better heat dissipation. The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling. The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
| Graphics Processing | GeForce RTX 4070 |
| Core Clock | 2490 MHz (Reference Card: 2475 MHz) |
| CUDA Cores | 5888 |
| Ray Tracing Cores | 46 |
| Tensor Cores | 184 |
| Streaming Multi-Processors | 46 |
| Memory Clock | 21000 MHz |
| Memory Size | 12 GB |
| Memory Type | GDDR6X |
| Memory Bus | 192 bit |
| Memory Bandwidth (GB/sec) | 504 GB/s |
| Card Bus | PCI-E 4.0 x16 |
| Digital max resolution | 7680 x 4320 |
| Multi-view | 4 |
| Card size | 201mm x 122mm x 48mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 650w |
| Power Connectors | 1 x 8-pin |

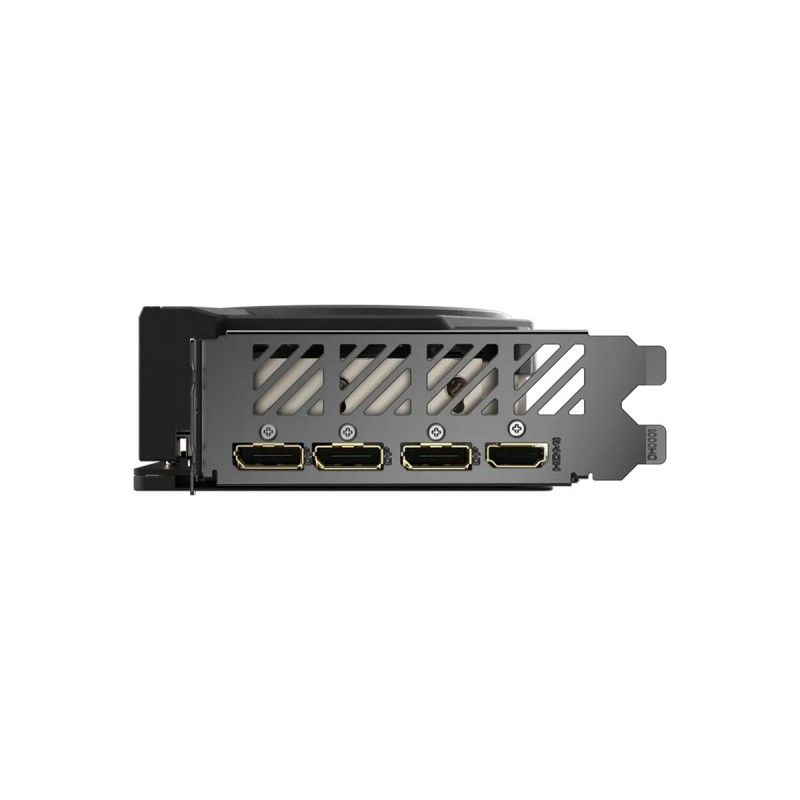

| Output | 3 x DisplayPort 1.4 1 x HDMI 2.1a |
| Multi-GPU Support | No |
| Accessories | Quick guide |
| Manufacturer | |
| Manufacturer's Website | Link * |
| Product Website | Link * |
| Warranty Information | |
| Warranty Duration | 3 Years |

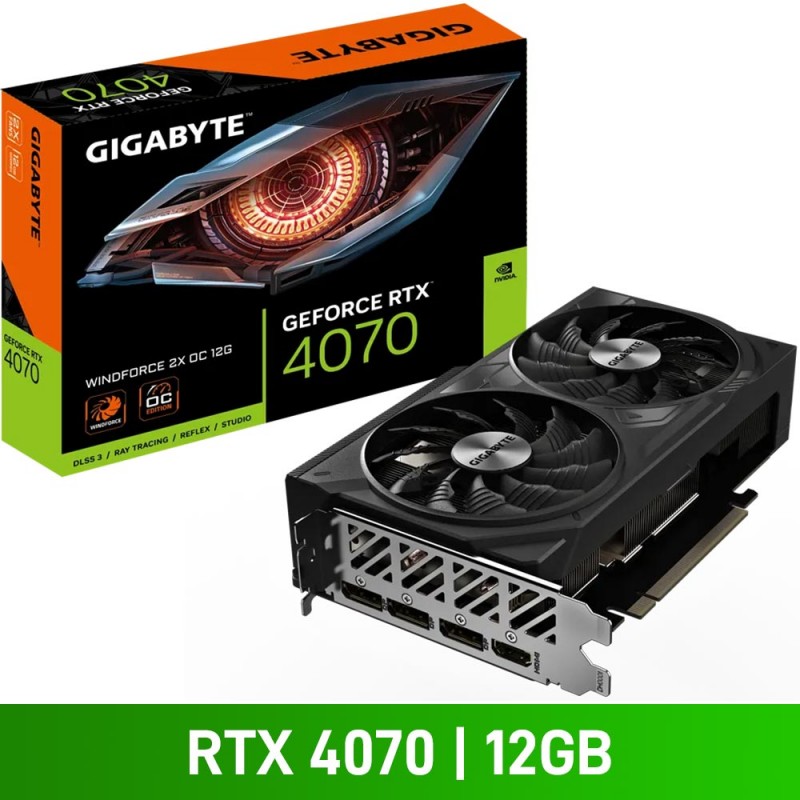

Gigabyte GeForce RTX 4070 WINDFORCE 2X OC 12G Graphics Card, 12GB
- NVIDIA GeForce RTX 4070 Graphics Processor
- Base Clock: 1920 MHz
- Boost Clock: Up To 2490 MHz
- CUDA Cores: 5888
- 3rd Gen Ray Tracing Cores: 46
- 4th Gen Tensor Cores: 184
- Memory: 12GB GDDR6X
- Effective Memory Clock: 21,000 MHz
- Real Time Ray Tracing
- DLSS 3.5 AI Rendering Technology
- 3 x DisplayPort 1.4, 1 x HDMI 2.1a
- 1 x PCIe 8-Pin Connector
- 3 Year Warranty
- Product Code: GV-N4070WF2OC-12GD
- Availability:
Out Of Stock
Lead Times:
- In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
- In Stock with Supplier: 1-3 business days until dispatched or ready for collection
- Out Of Stock: Contact us to see if this item will be restocked.
