Images are for reference purposes only and product appearances/colours may vary.

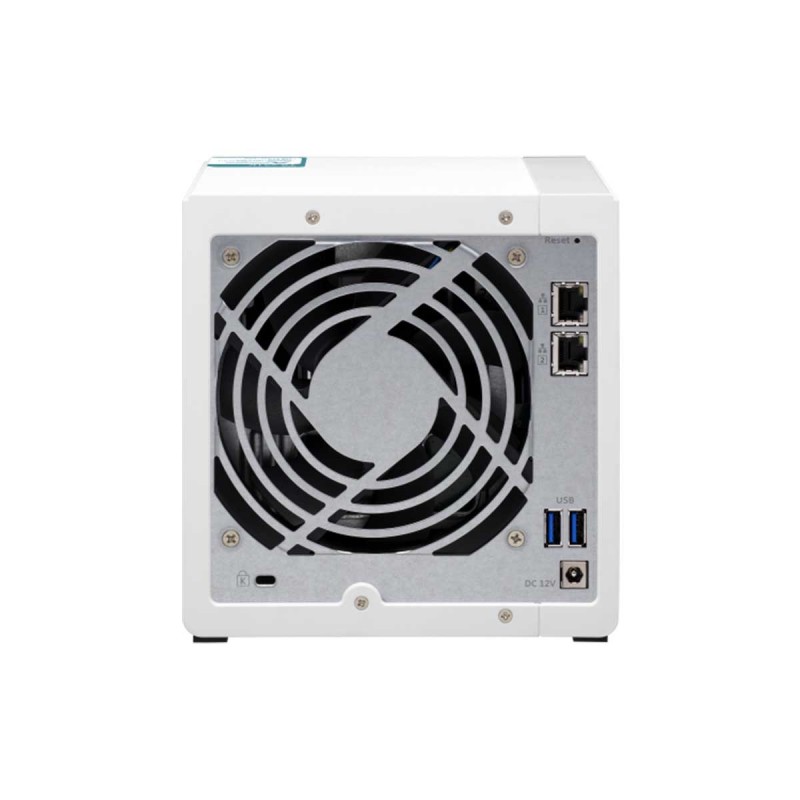

Powered by quad-core 1.7 GHz processor, the TS-431K provides 4 drive bays storage space to securely store your important files and data, while allowing you to easily share files with family and friends. Featuring a compact pure white minimalist design, the TS-431K can easily integrate with any home décor and takes up very little space. The TS-431K comes with lockable drive trays, ensuring the drives will not be accidentally removed or fall out and cause data loss. The TS-431K provides comprehensive local, off-site and cloud backup and secure Snapshot technology to help create a reliable backup and disaster recovery plan. In the event of a system crash or accidental file deletion, you can quickly restore the system to its normal state.

ModelTS-431K
Operating SystemQTS
Drive Bays4 x 3.5-inch SATA 6Gb/s
Compatibility3.5" SATA Hard Disk Drives
2.5" SATA Hard Disk Drives
2.5" SATA Solid State Drives
Supported File SystemsInternal Drives: EXT4
External Drives: EXT3, EXT4, NTFS, FAT32, NFS+, exFAT (exFat requires purchase of exFAT driver license from License Center)
Hot-Swap SupportYes
Security
  • Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
  • Host access control for shared folders (CIFS/SMB)
  • AES 256-bit volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
  • 256-bit external drive encryption (AES)
  • Importing of SSL certificates from Let’s Encrypt
  • Instant alerts through email, SMS, push service, and audio
  • 2-step verification
ProcessorAnnapurnaLabs Alpine AL214 quad-core 1.7GHz processor
MemorySystem Memory: 1 x 1GB DDR3
Maximum Memory: 1 x 1GB
Memory Slot: 1 x DDR3
Flash Memory512MB with dual boot OS protection
M.2 SSD SlotNo
SSD Cache Acceleration SupportYes
LAN Ports2 x 1Gbe Gigabit Ethernet
USB Ports3 x USB 3.2 Gen 1
PCI Express Slots0
Form FactorFree standing
LED IndicatorsHDD1-4, Status, LAN, USB
ButtonsPower, Reset, USB Auto Copy
PowerConsumption, HDD Sleep Mode: 11.928W
Consumption, Typical: 26.57W
Power Supply: 90W Adapter, 100-240VAC
Storage Management
  • Supported RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60, JBOD
  • RAID Hot Spare and Global Hot Spare
  • RAID Rebuild Speed Customization
  • Online RAID capacity expansion
  • Online RAID level migration
  • SSD RAID Over-provisioning
    Note: RAID 0 and JBOD Data RAID does not support Over-provisioning.
  • SSD RAID Performance evaluation (with SSD Profiling Tool)
  • SSD TRIM for RAID 0,1,10
  • Bitmap support
  • Disk auto S.M.A.R.T. data migration
  • Disk bad block scan and S.M.A.R.T test.
  • Disk bad block recovery
  • Disk secure data erase
  • Ironwolf Health Management
  • Storage pools
  • Flexible volumes and LUNs with thin provisioning and space reclaiming
    If the NAS has less than 4GB RAM, then the maximum volume capacity is 144TB.
    If the NAS has at least 4GB RAM, then the maximum volume capacity is 250TB.
  • Online volume expansion
  • Volume type conversion
  • Volume shrink
  • Storage space utilization
  • Snapshots
    The maximum number of snapshots varies depending on installed memory.
    Volume and LUN snapshots
    Snapshot Dashboard
    Snapshot Manager
    Snapshot local restore and revert
    Snapshot Clone
    Snapshot Replica and Snapshot Vault
    Snapshot remote restore and revert
    Unified Snapshot Directory
    Support for Windows Previous Versions (CIFS/SMB)
  • Storage expansion using QNAP expansion units
  • JBOD enclosure roaming
  • SSD read-only and read-write cache
  • SSD write-only cache
    Note: SSD Cache supports Single, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 configuration. The maximum cache size is 1TB.
Dimensions169 x 160 x 219 mm
Weight2.01 kg
Warranty3 Years

Write a review

Note: HTML is not translated!
    Bad           Good

QNAP TS-431K 4-Bay Pedestal NAS, 2 x 1Gbe Ethernet

  • Product Code: TS-431K
  • Availability: Out Of Stock leadtimeTooltip Lead Times:
    • In Stock with Progenix: Ready for collection/dispatch once payment clears. The cut-off for same-day dispatch is 12:00pm on business days.
    • In Stock with Supplier: 1-3 business days until dispatched or ready for collection
    • Out Of Stock: Contact us to see if this item will be restocked.
OUT OF STOCK


Price displayed is already subject to a 4% discount for EFT payments
