Images are for reference purposes only and product appearances/colours may vary.

ASUS TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

CPU	AMD Socket AM5 for AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors (Refer to www.asus.com for CPU support list.)
Chipset	AMD B850
Memory	4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Onboard Graphics	Integrated Graphics Processor: 1 x HDMI port Supports max. 4K@60Hz as specified in HDMI 2.1. 1 x DisplayPort Supports max. 8K@30Hz as specified in DisplayPort 1.4
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers Audio cover Unique de-pop circuit
LAN	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless Communication Module	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. Bluetooth v5.3
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x1 slot
Storage Interface	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
USB	Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 10Gbps connector (supports USB Type-C) USB Type-C power delivery output: max. 5V/3A. 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header
Back Panel Connectors	1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button
I/O Controller	Not Specified
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Unique Features	ASUS TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS) ESD Guards TUF LANGuard Overvoltage protection SafeSlot Stainless-steel back I/O ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED ProCool Pre-mounted I/O shield SafeDIMM Aura Sync Addressable Gen 2 headers
Bundled Software	Armoury Crate Aura Creator Aura Sync Fan Xpert 4 Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
Operating System	Support for Windows 11 64-bit
Form Factor	Micro ATX Form Factor, 24.4cm x 24.4cm

Combining cooling performance, easy installation, and aesthetics all in one. The Prime LC 240 ARGB features a specially designed CPU contact area that can effectively cool the CPU and provide stable performance. At the same time, it comes with pre-installed ARGB fans that optimize the user's PC DIY experience. A single cable connects the lighting and fans, making cable management much easier. The customizable infinity mirror lenses in the water block give the PC build more versatility, empowering you to create diverse styles. Customizable infinity mirror lenses let users personalize the aesthetics of their PC build. The reflective surfaces and layered design produce captivating visual depth when the ARGB lighting is activated. These pre-installed ARGB fans on the Prime LC 240 ARGB streamline the installation process. With just a single Y-cable, users can connect both the ARGB lighting and the fans, simplifying cable management. These ARGB fans provide a clean and organized appearance and also deliver strong and stable airflow, further enhancing the cooling capabilities of your system.

SKU	Prime LC 240 ARGB
Cold Plate Material	Copper
Radiator Material	Aluminium
PWM	Yes
Lighting	ARGB
Radiator Dimensions	277mm x 120mm x 27mm
Fan Dimensions	120mm x 25mm
Fan Speed	600 - 2200 RPM ±10%
Number of Fans	2
Cooling Socket Support	Intel: LGA1851, LGA1700, LGA1200, LGA115x AMD: AM5, AM4
Radiator Size	240mm
Fan Model	PRIME LC 24025 Integrated Fan
Fan Airflow	75.70 CFM
Fan Static Pressure	3.20 mm-H2O
Noise Level	34 dB(A)
Warranty	6 Years

Manufacturer
Manufacturer's Website	Link *
Product Website	Motherboard: Link AIO Cooler: Link
Warranty Information
Warranty Duration	Motherboard: 3 Years AIO Cooler: 6 Years

* These links will redirect to an external website which may be governed by its own privacy policy. We do not share customer information with external sites outside of what's lined out in our Privacy Policy.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

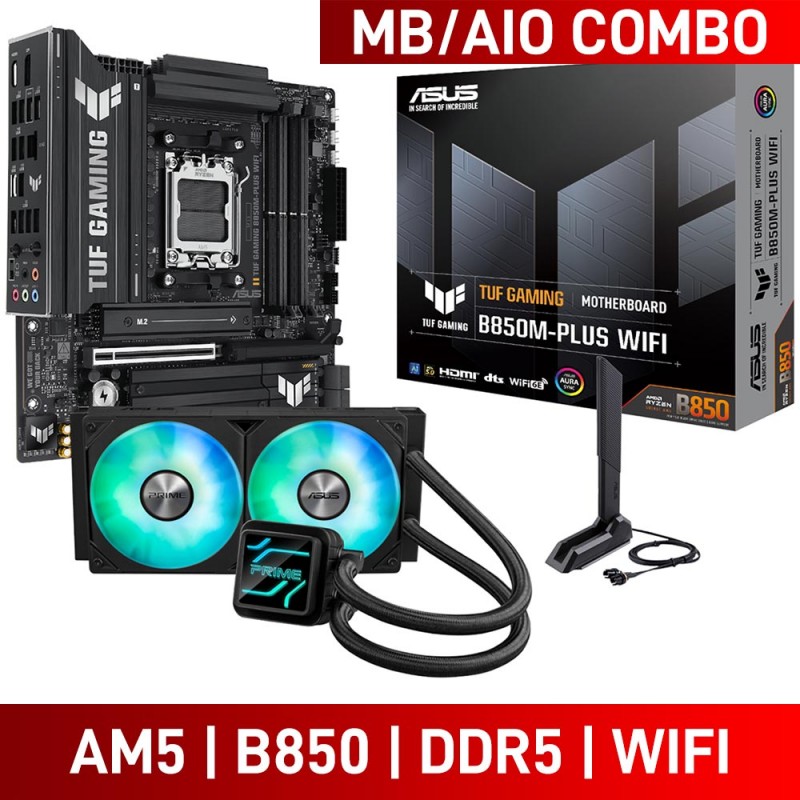

ASUS TUF GAMING B850M-PLUS WIFI, AMD B850 Chipset, Socket AM5, Micro ATX Desktop Motherboard + ASUS PRIME LC 240 ARGB AIO Liquid Cooler, 240mm — Black

- Socket Socket AM5, AMD B850 Chipset
- Supports Ryzen 7000 / 8000 / 9000 Series Processors
- 4 x DDR5 DIMM Slots, up to 192GB, DDR5-8000
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x1 Slot
- 1 x M.2 PCIe 5.0 NVMe Slot
- 2 x M.2 PCIe 4.0 NVMe Slots
- 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 5 / 10
- 2.5Gbps LAN & Wi-Fi 6E
- 1 x HDMI 2.1, 1 x DisplayPort 1.4
- 1 x Rear USB Type-C 20Gb/s
- 3 x USB Type-A 10Gb/s, 4 x USB Type-A 5Gb/s
- Form Factor: Micro ATX
- 3 Year Warranty

- 240mm AIO Liquid Cooler with RGB Lighting
- 2 x PRIME LC 36025 Daisy-Chainable ARGB Fans
- Fan Speed: 600 - 2200 RPM ±10%
- Airflow: Up to 75.70 CFM
- Static Pressure: Up to 4.30 mm-H2O
- Noise: Up to 34 dBA
- Customizable Infinity Mirror Lenses
- Copper Cold Plate
- 400mm Braided Tubes
- AMD Mounting: AM4, AM5
- Intel Mounting: LGA1851, 1700, 1200, 115x
- 6 Year Warranty
